Supermicro X11SDV-8C+-TLN2F mainboard Xeon D-2141I PCIe x8 10Gbe NVME IPMI DDR4
Supermicro X11SDV-8C+-TLN2F mainboard Xeon D-2141I PCIe x8 10Gbe NVME IPMI DDR4
Couldn't load pickup availability

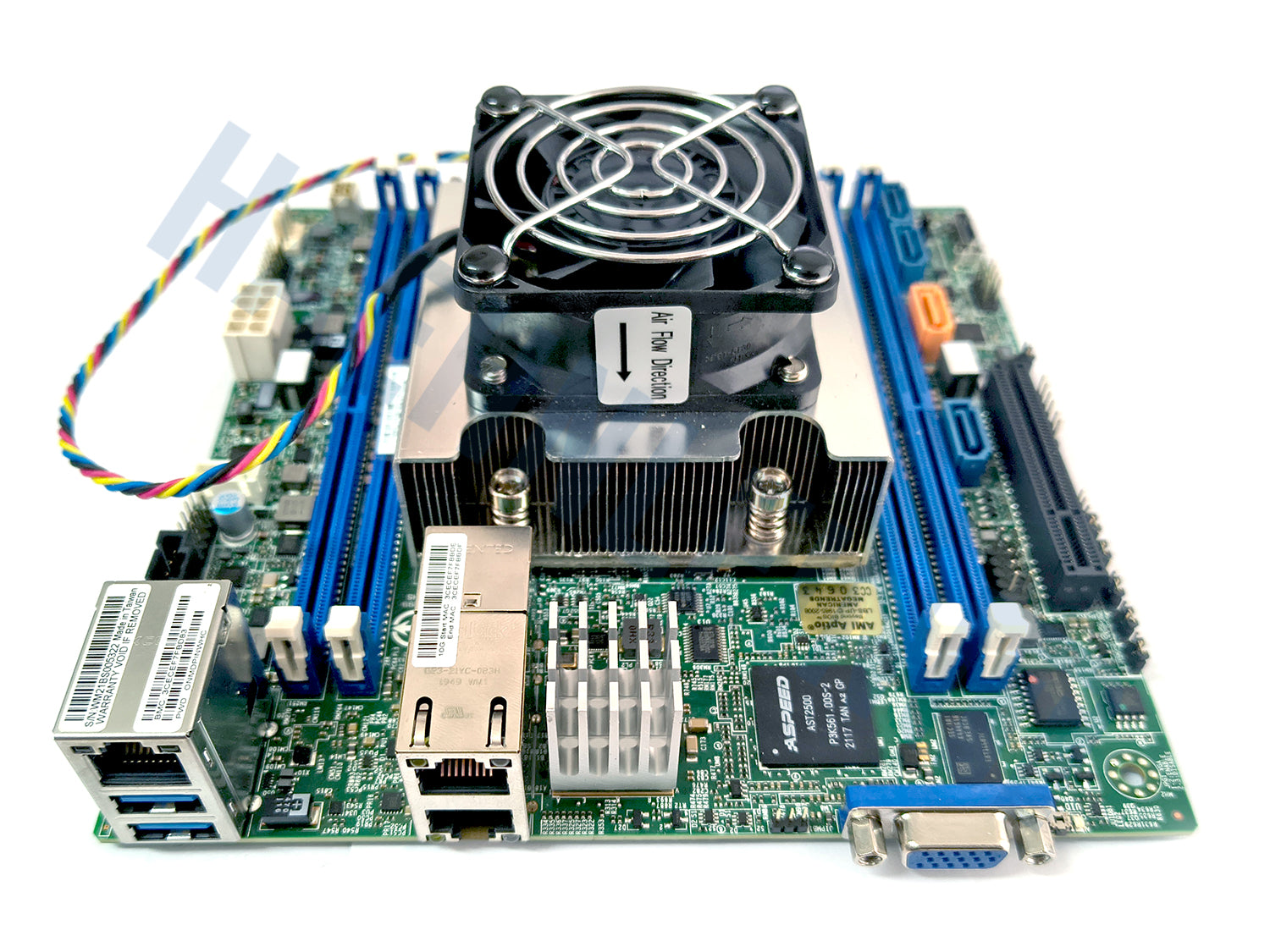

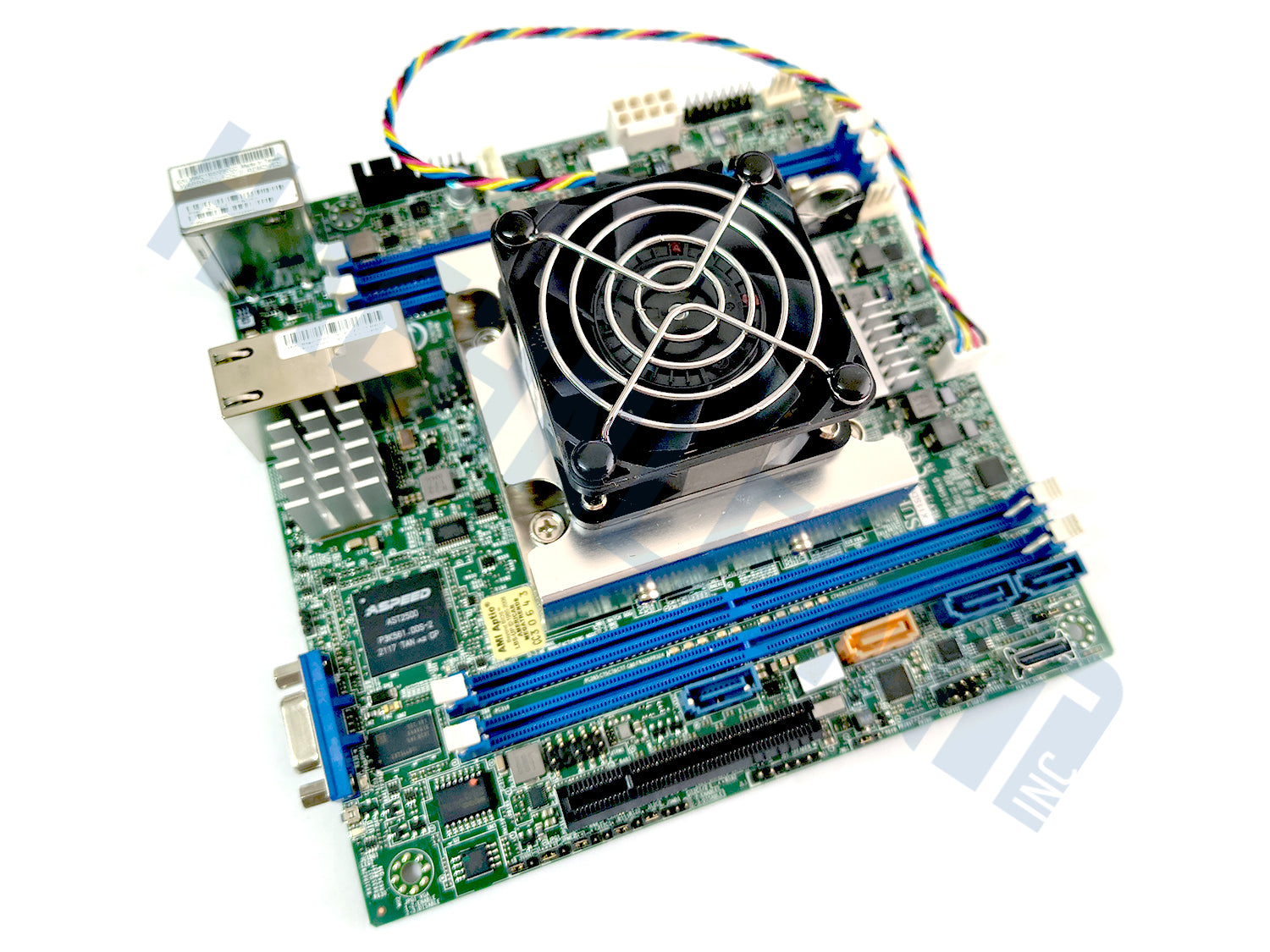

The Supermicro X11SDV-8C+-TLN2F is a professional server motherboard with Intel Xeon D-2141I CPU onboard. The motherboard has 4 DDR4 Reg ECC slots for up to 512GB RAM. For expanding your server, it has one PCIe 3.0 x8 slot and one PCIe 3.0 x4 NVMe internal port via OCuLink (1xNVME or 4x SATA). Additionally, the board has 2 10Gbit LAN ports. With IPMI you can monitor and control your server remotely.
The integrated fan cools the board actively. The IO shield as well as an ATX power adapter are included.
- Processor: Intel Xeon D-2141I 8 core / 16 threads / 65W
- Memory slots: 4 x DDR4 Ram Reg ECC for up to 512GB
- Expansion slots: 1x PCIe x8 3.0, 1x PCIE x4 3.0 NVMe via OCuLink (1x NVMe or 4x SATA)
- Additional ports: 2x 10GBaseT Lan onboard (10Gbe), 2x USB 3.0 (rear), 2x USB 2.0 (via header)
- Form factor: miniITX
- IPMI for remote administration included.
- The motherboard is actively cooled by an integrated fan.

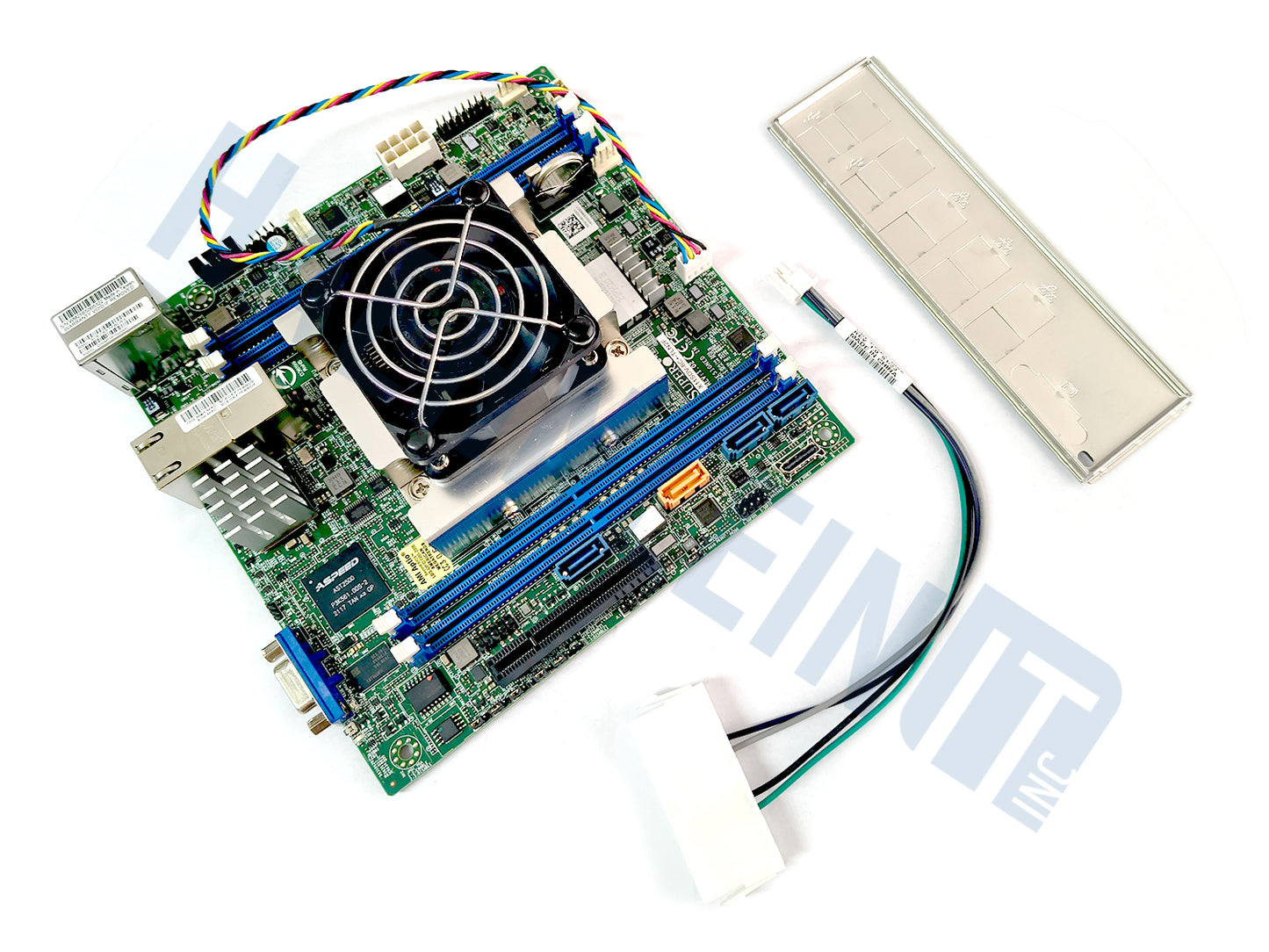

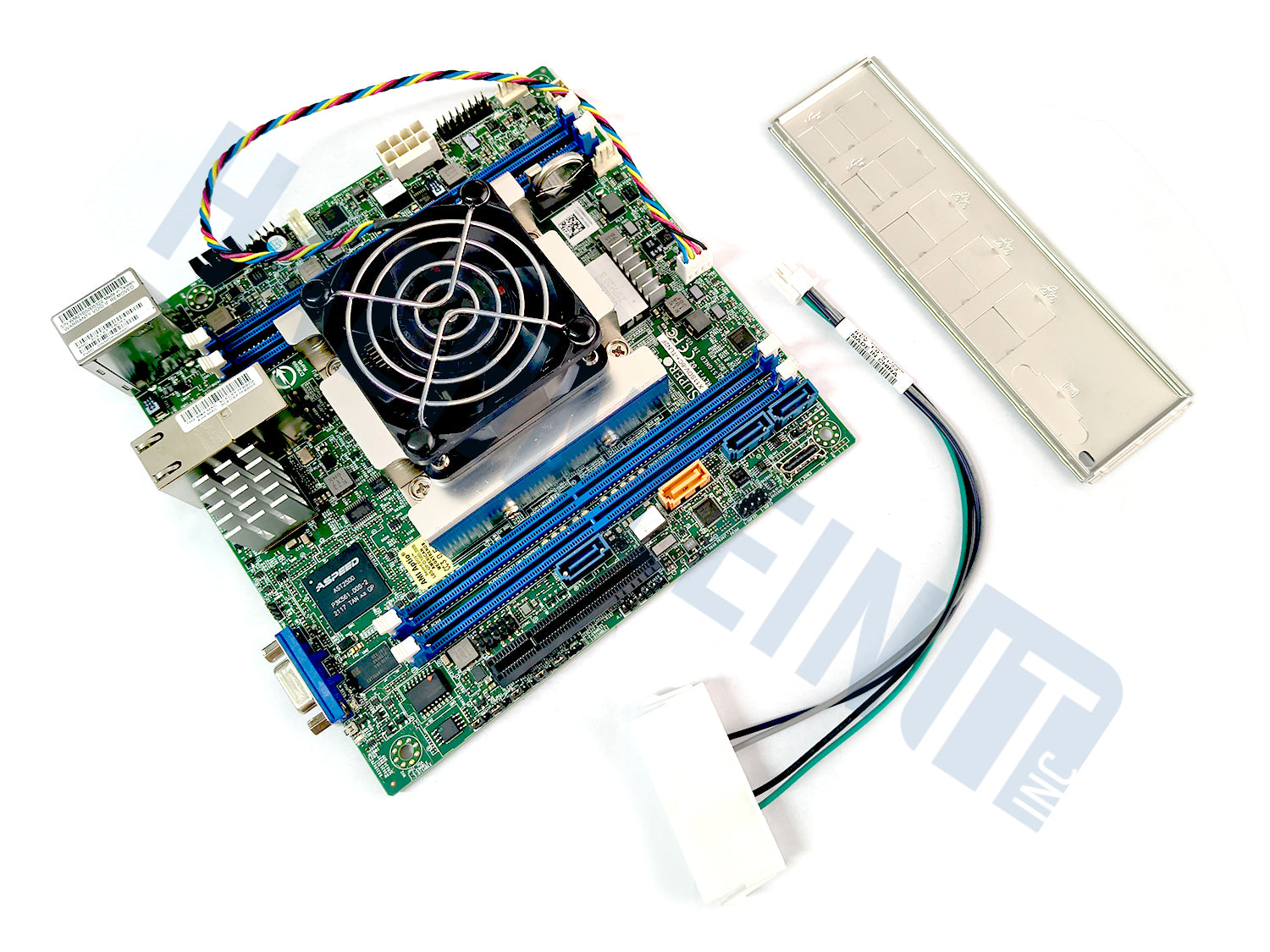

- IO shield and ATX power adapter are included.
Specifications
Share

Collapsible content
Safety Precautions
ATTENTION:
Before changing your system configuration, always back up your data to prevent data loss.
Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.
Before installing components, always consult the manufacturer’s manual.
![]() |
CAUTION: Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system. During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns. Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them. |
