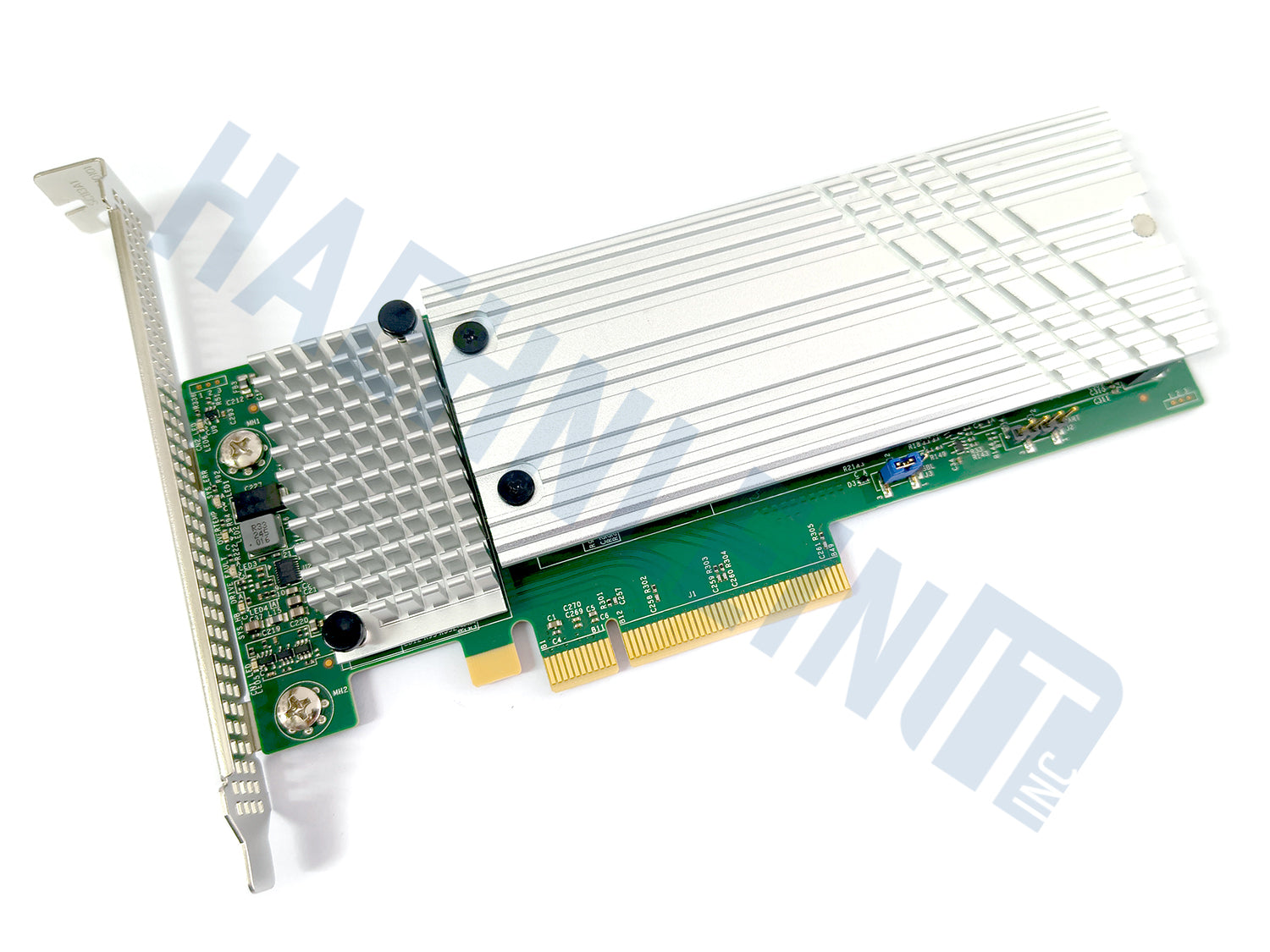

• A Supermicro AOC-SLG4-2H8M2 RAID controller with a large silver heatsink, green circuit board, and gold PCI Express connector, shown on a white background with a faint HaehnleinIT Inc watermark.

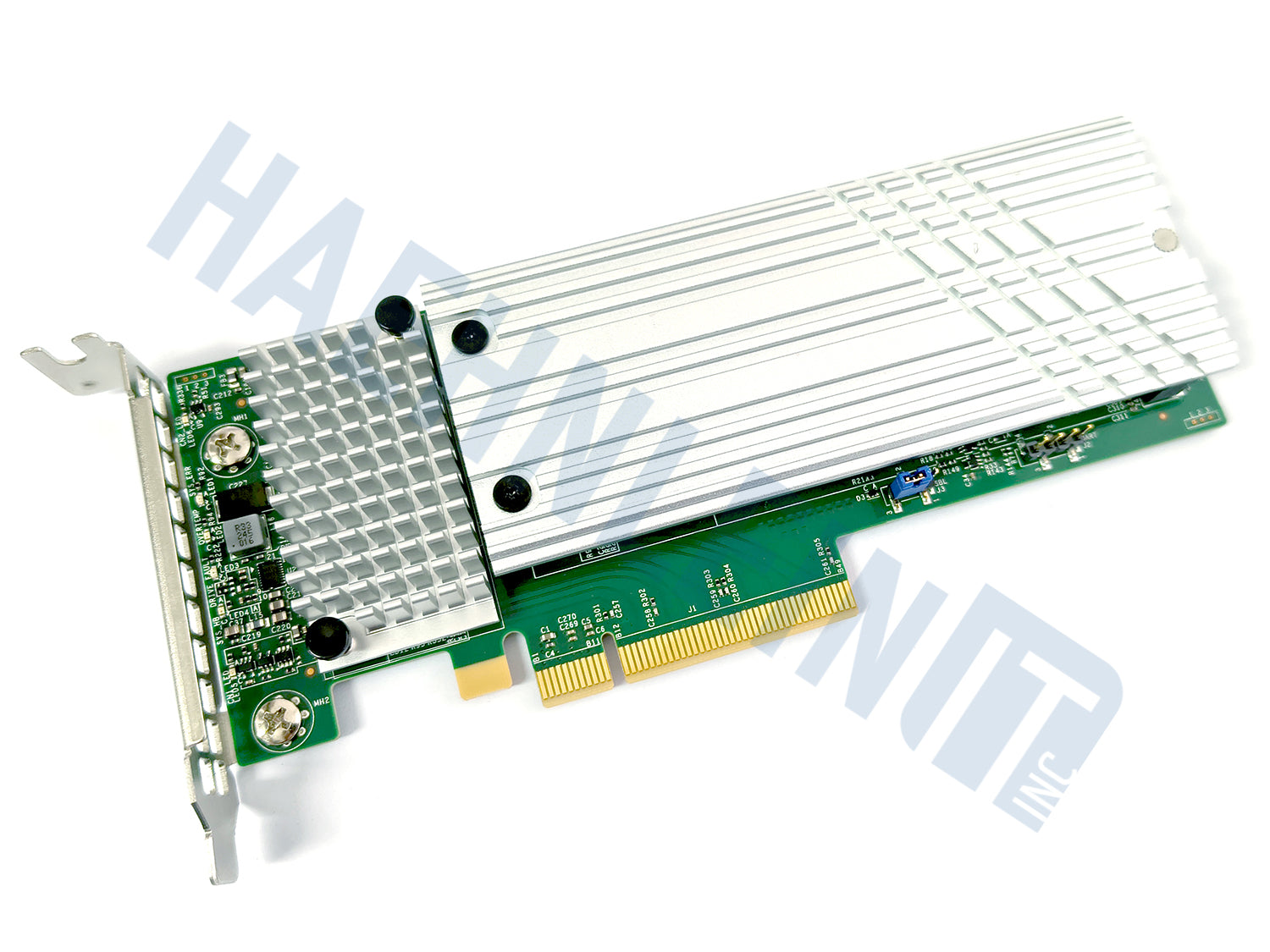

  • A Supermicro AOC-SLG4-2H8M2 RAID controller with a large silver heatsink, green circuit board, and gold PCI Express connector, shown on a white background with a faint HaehnleinIT Inc watermark.

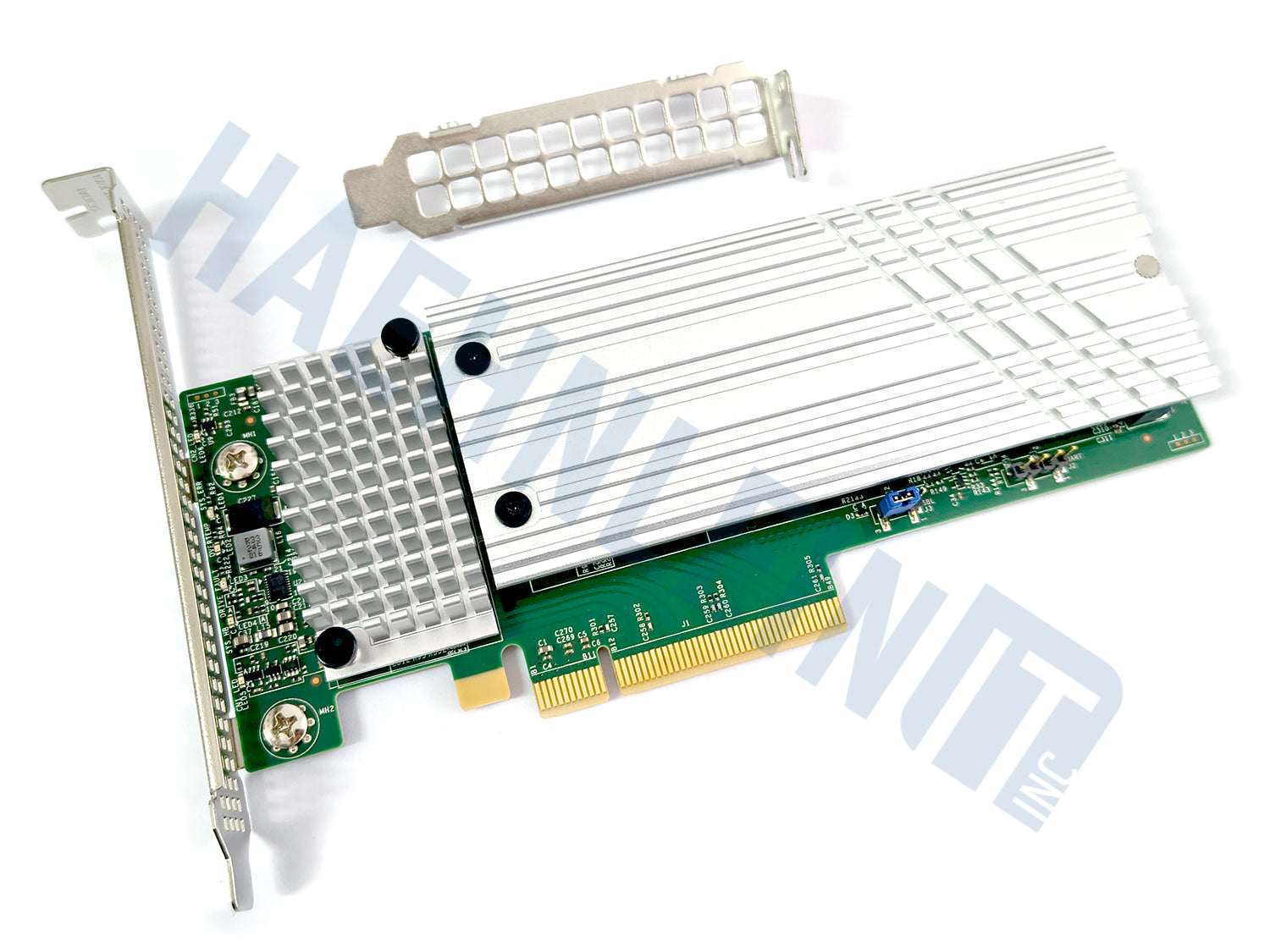

  • A Supermicro AOC-SLG4-2H8M2 RAID controller with a large silver heatsink, green circuit board, and gold PCI Express connector, shown on a white background with a faint HaehnleinIT Inc watermark.

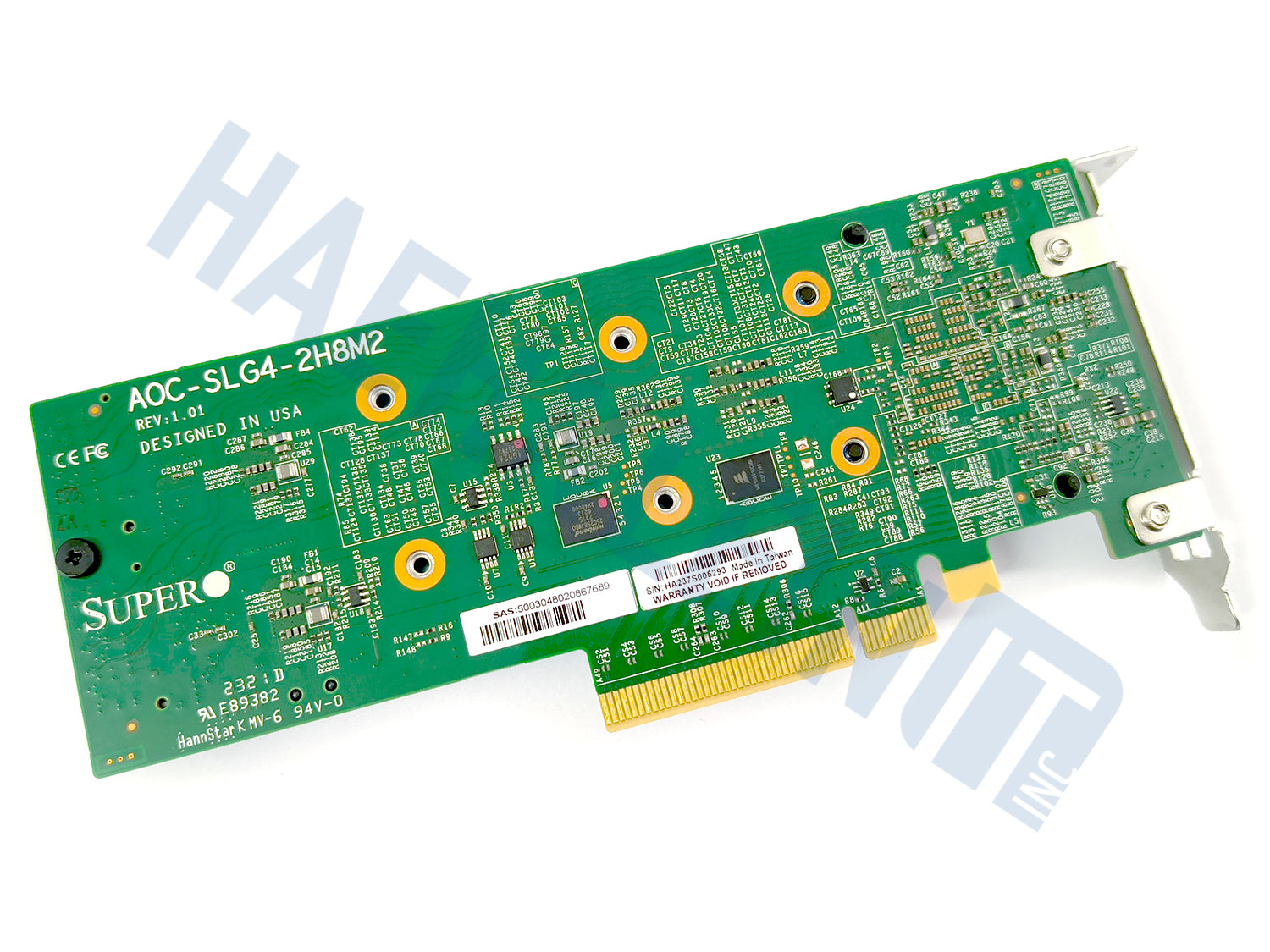

  • The backside of a Supermicro AOC-SLG4-2H8M2 RAID controller: a green circuit board, and gold PCI Express connector, shown on a white background with a faint HaehnleinIT Inc watermark.

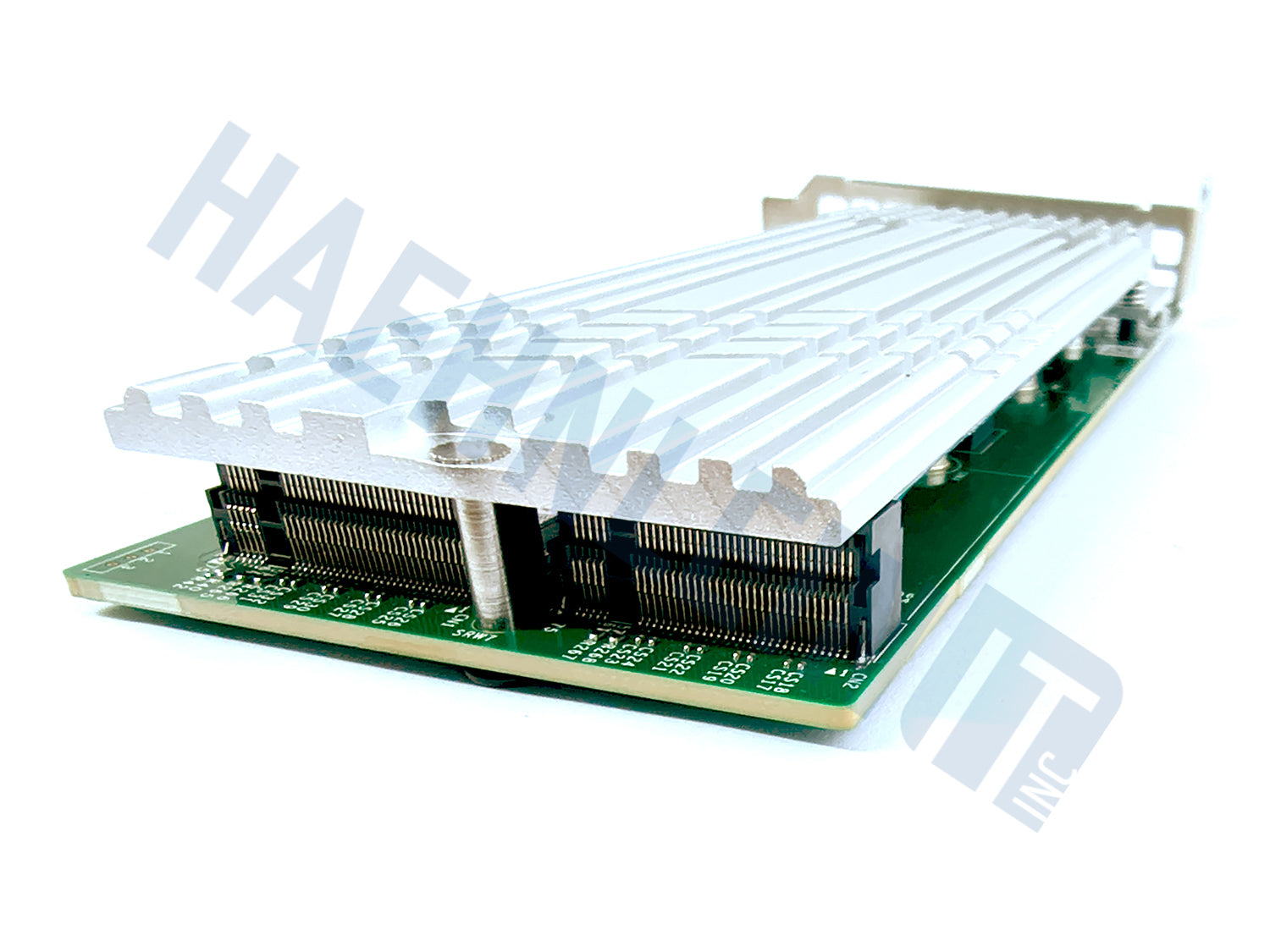

  • A Supermicro AOC-SLG4-2H8M2 RAID controller with a large silver heatsink, close up of 2 m.2 ports, shown on a white background with a faint HaehnleinIT Inc watermark.
1 5

Supermicro

Supermicro AOC-SLG4-2H8M2 RAID Controller 12Gbps NVMe m.2 PCIe 4.0 x8 SAS3808

Supermicro AOC-SLG4-2H8M2 RAID Controller 12Gbps NVMe m.2 PCIe 4.0 x8 SAS3808

$249.90 USD
$249.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

The Supermicro AOC-SLG4-2H8M2 is a professional NVME / m.2 PCIe RAID adapter for servers and workstations that lets you increase the number of connected hard drives. The controller offers a PCIe x8 4.0 port as well as 2 internal ports for NVMe or m.2 SSDs via 2 m.2 slots. Components for the brand Supermicro are manufactured by Avago. It is universally compatible with all known brands. Full and low profile brackets for installation are included.

  • The RAID controller functions as a hardware intersection for storage devices and their coordination.
  • Ports: PCIe x8 4.0, 2 m.2 ports for a maximum of 2 NVMe or m.2 SSDs
  • RAID levels: 0, 1
  • The maximum data transfer rate is 16 Gbit/s NVMe  or 6 Gbit/s SATA m.2
  • Full and low profile brackets included.
  • Alternatively labeled as: AOC-SLG4-2H8M2, AOC-SLG4-2H8M2-O, 9540-2M2

Specifications

MPN: AOC-SLG4-2H8M2-O
Bus type: PCIe x8 4.0
Interface: m.2
Number of ports: 2
Max. data transfer rate: 16 Gbps
RAID levels: 0 and 1
Bracket height: Full + Low Profile
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
