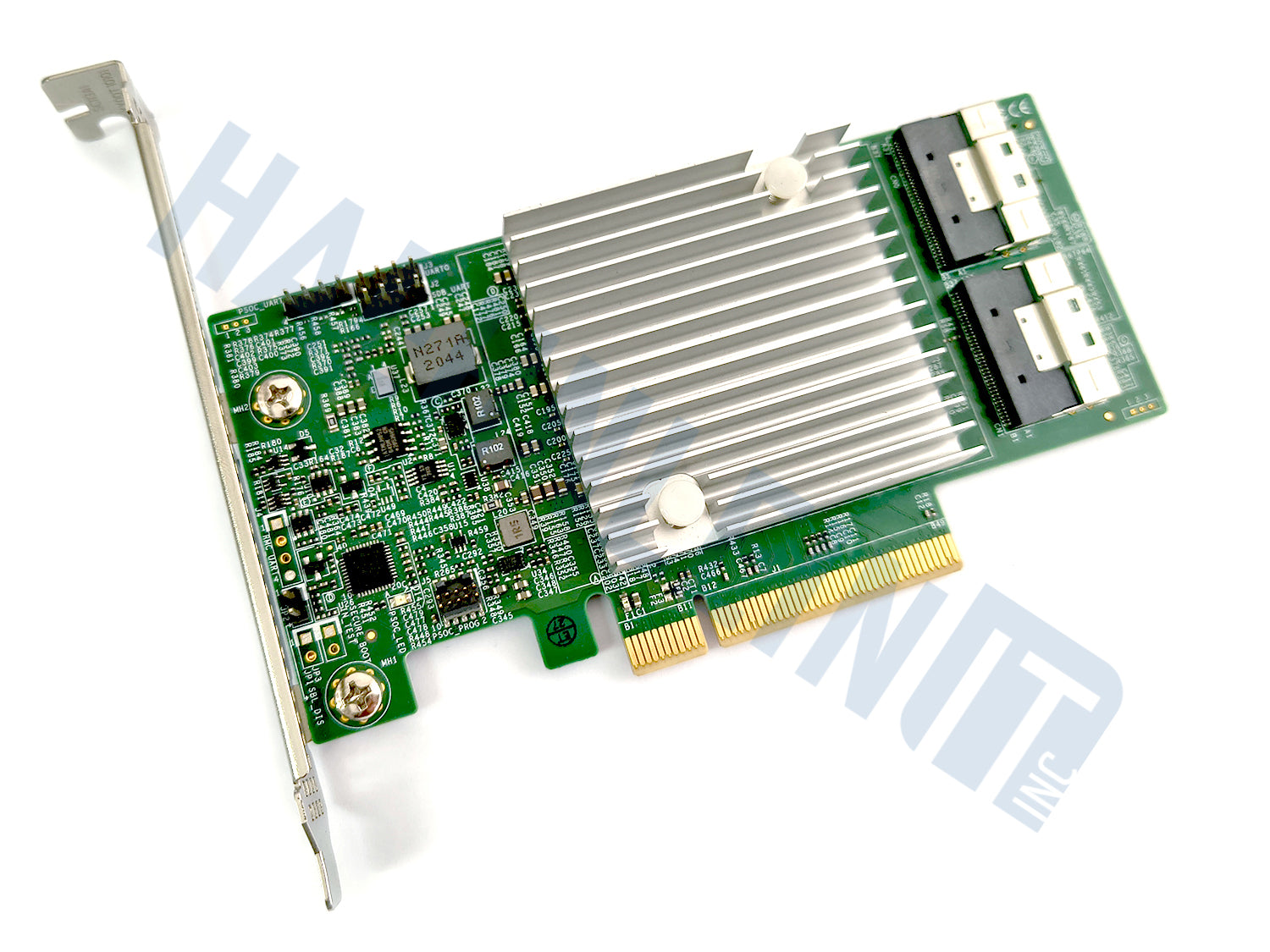

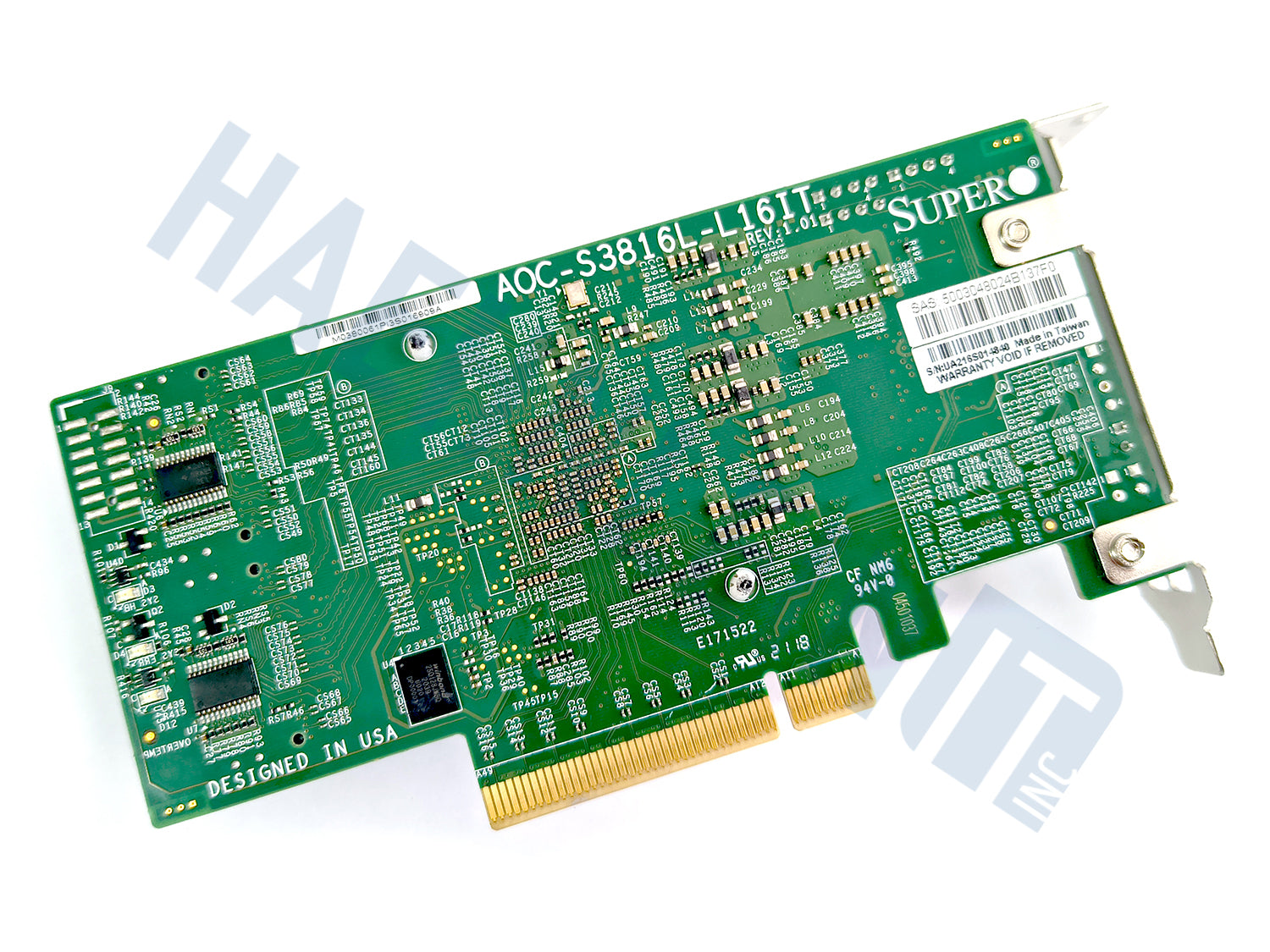

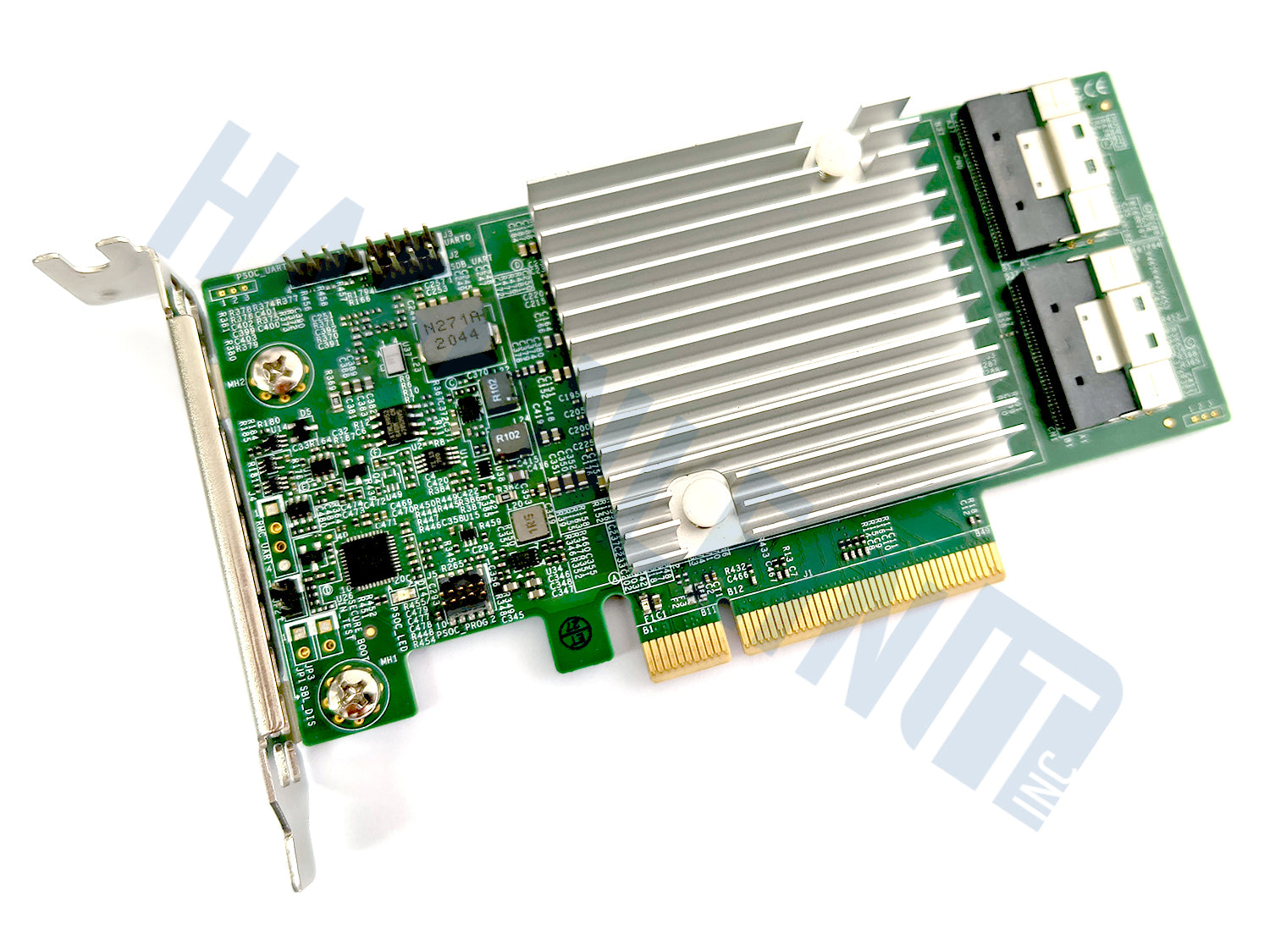

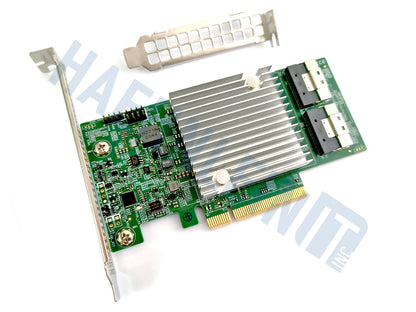

Supermicro AOC-S3816L-L16IT SATA SAS HBA 9500-16i 12G IT-Mode

Supermicro AOC-S3816L-L16IT SATA SAS HBA 9500-16i 12G IT-Mode

Regular price $599.90 USD
Regular price Sale price $599.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition
Quantity

The Supermicro AOC-S3816L-L16IT is a SATA / SAS HBA that lets you increase the number of hard drives connected to your server or workstation. The host bus adapter has a PCIe x8 4.0 interface as well as 16 internal ports for SATA or SAS drives via 2 SlimSAS SFF-8654 ports. The maximum data transfer rate is 12 GBps. It is universally compatible with all known brands and uses the same chipset as the model Broadcom 9500-16i, making it functionally identical. The HBA is flashed to the latest IT mode firmware. Delivery includes full and low profile brackets for installation.

  • The Supermicro host bus adapter serves as a hardware interface for storage devices.

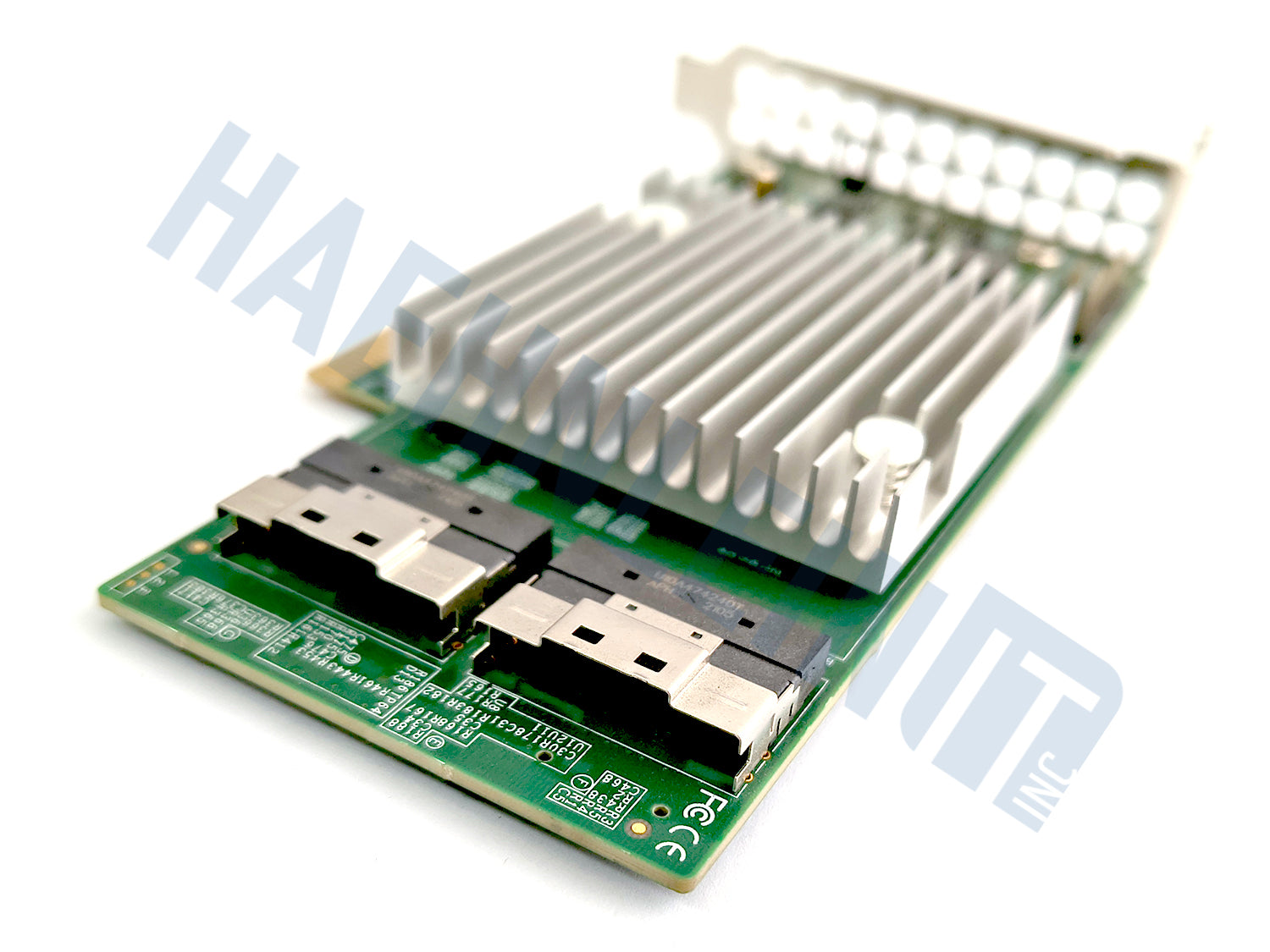

  • Ports: PCIe x8 4.0, 2 SlimSAS SFF-8654 Ports for up to 16 internal SATA / SAS drives
  • The maximum data transfer rate is 12 Gbps.
  • The latest IT mode firmware is installed.

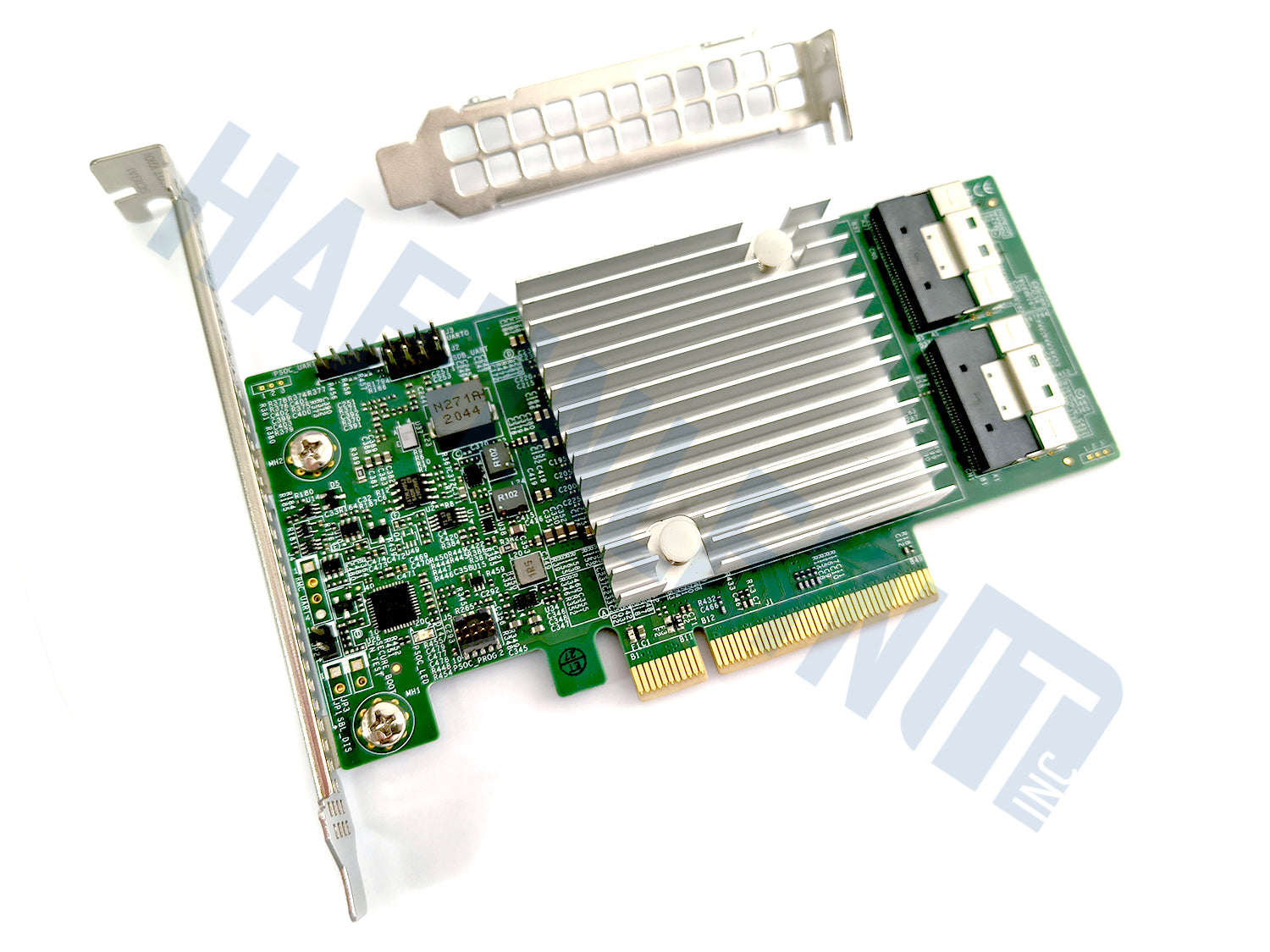

  • Full and low profile brackets are included.
  • Alternatively labelled as: AOC-S3816L-L16IT, AOC-S3816L-L16IT-O, 9500-16i, 05-50077-02

Specifications

MPN: AOC-S3816L-L16IT-O
Bus type: PCIe x8 4.0
Interface: SFF-8654
Number of ports: 16
Max. data transfer rate: 12 Gbps
RAID levels: IT mode
Bracket height: Full + Low Profile
View full details

Collapsible content

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
