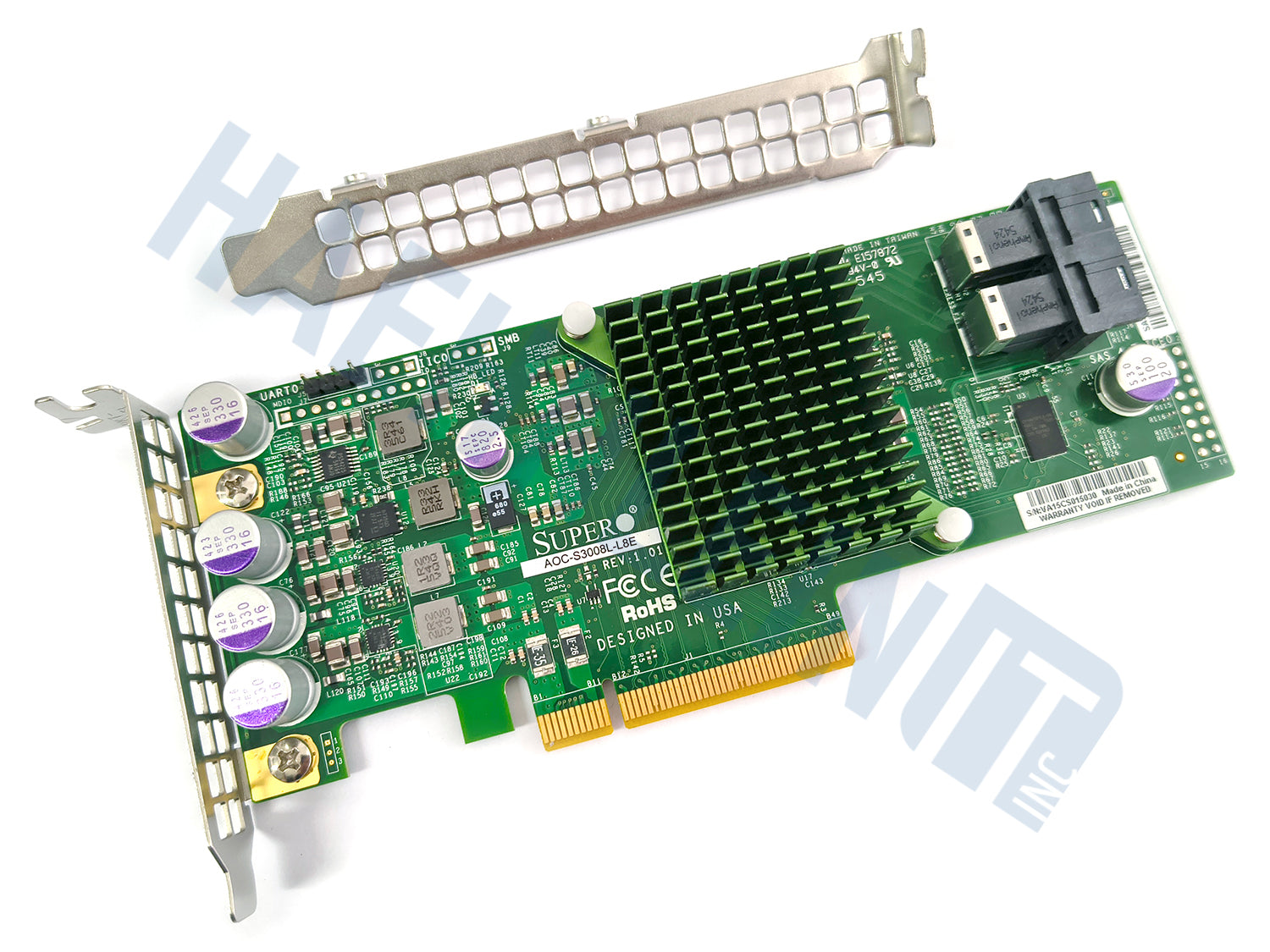

• A green Supermicro AOC-S3008L-L8E PCI Express network card with a large heat sink, multiple capacitors, and a metal bracket, shown alongside a matching empty bracket on a white background with a faint HaehnleinIT Inc watermark.

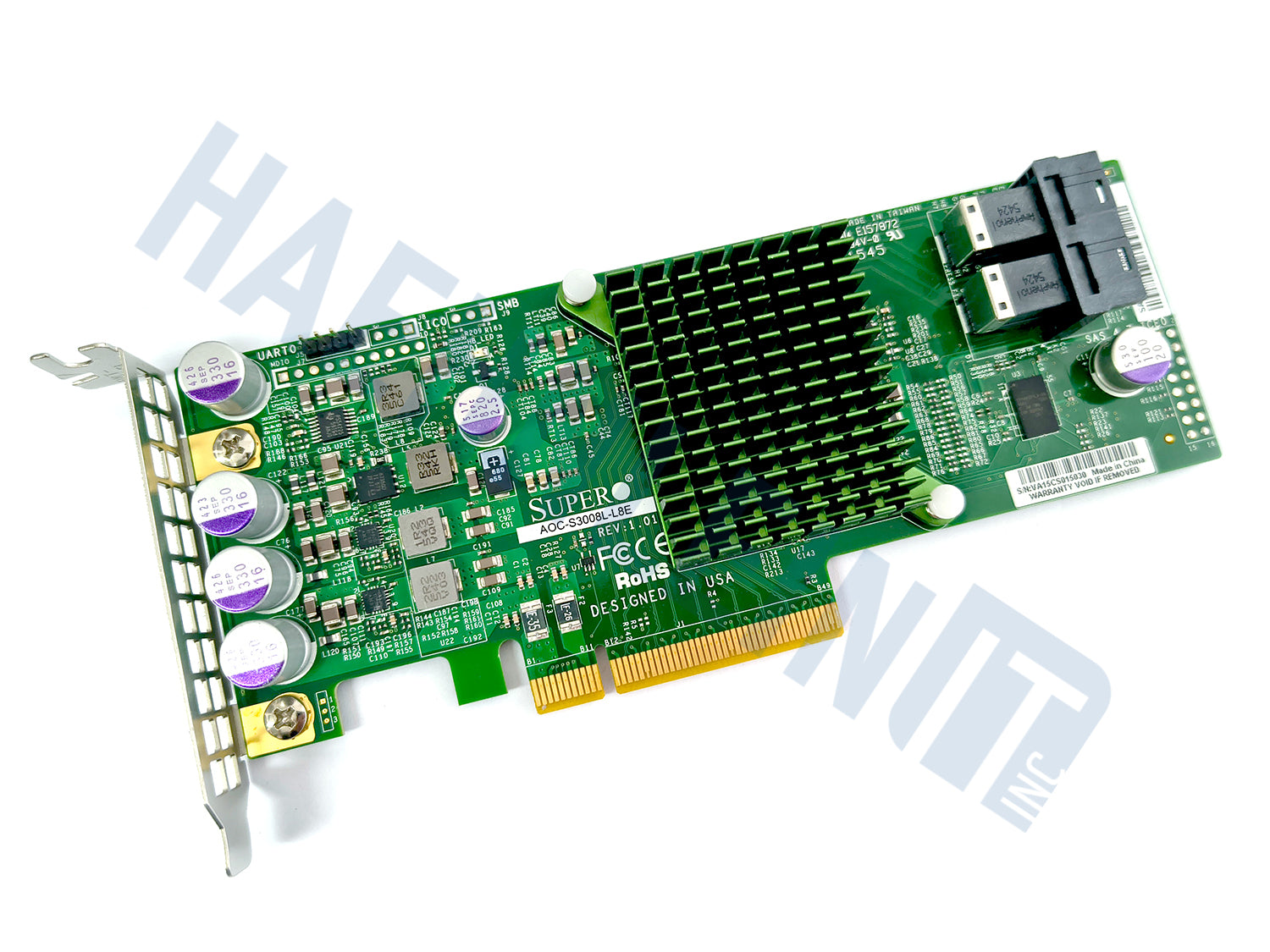

  • A green Supermicro AOC-S3008L-L8E PCI Express network card with a large heat sink, multiple capacitors, and a low profile metal bracket, shown on a white background with a faint HaehnleinIT Inc watermark.

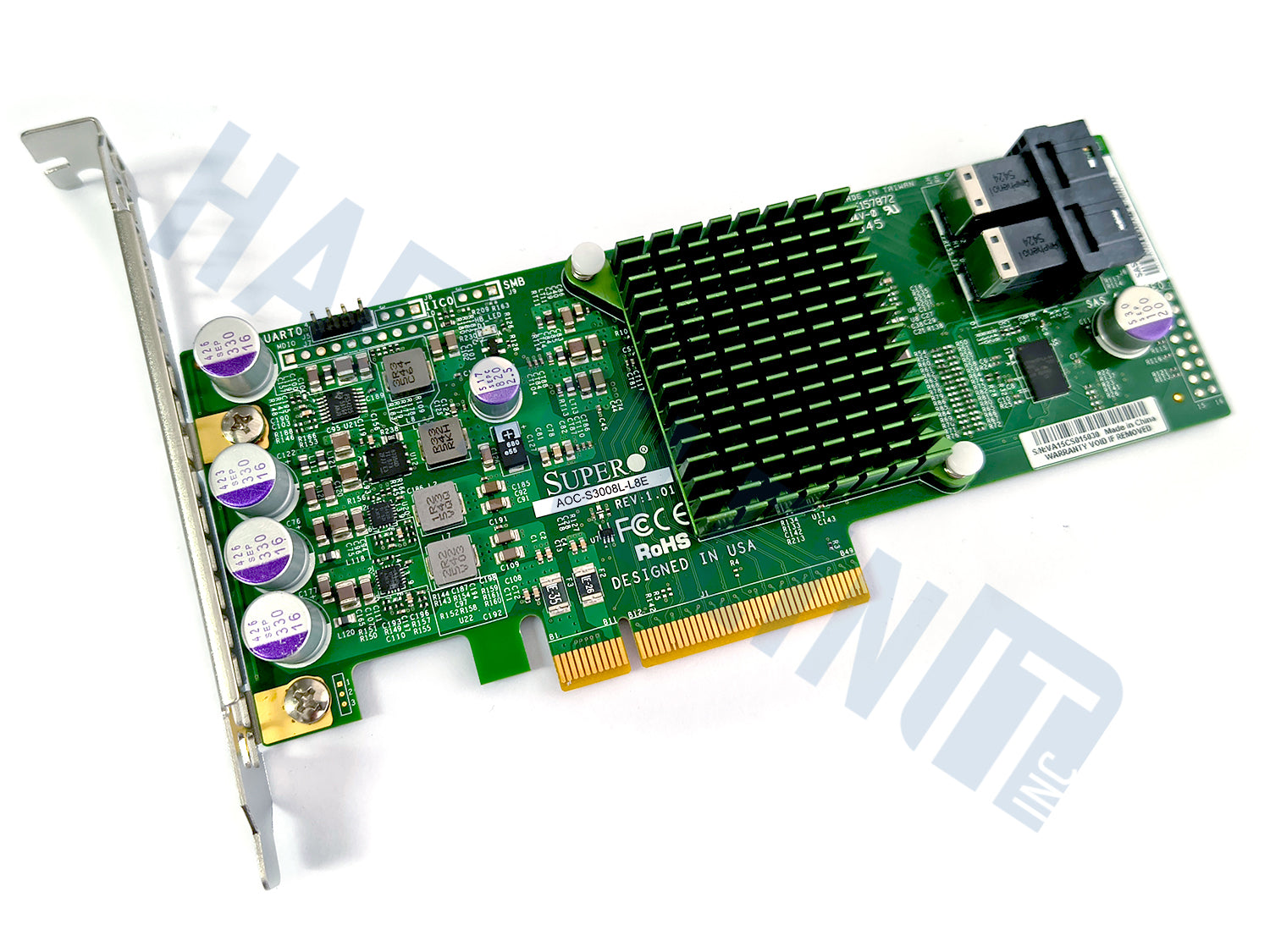

  • A green Supermicro AOC-S3008L-L8E PCI Express network card with a large heat sink, multiple capacitors, and a full height metal bracket, shown on a white background with a faint HaehnleinIT Inc watermark.

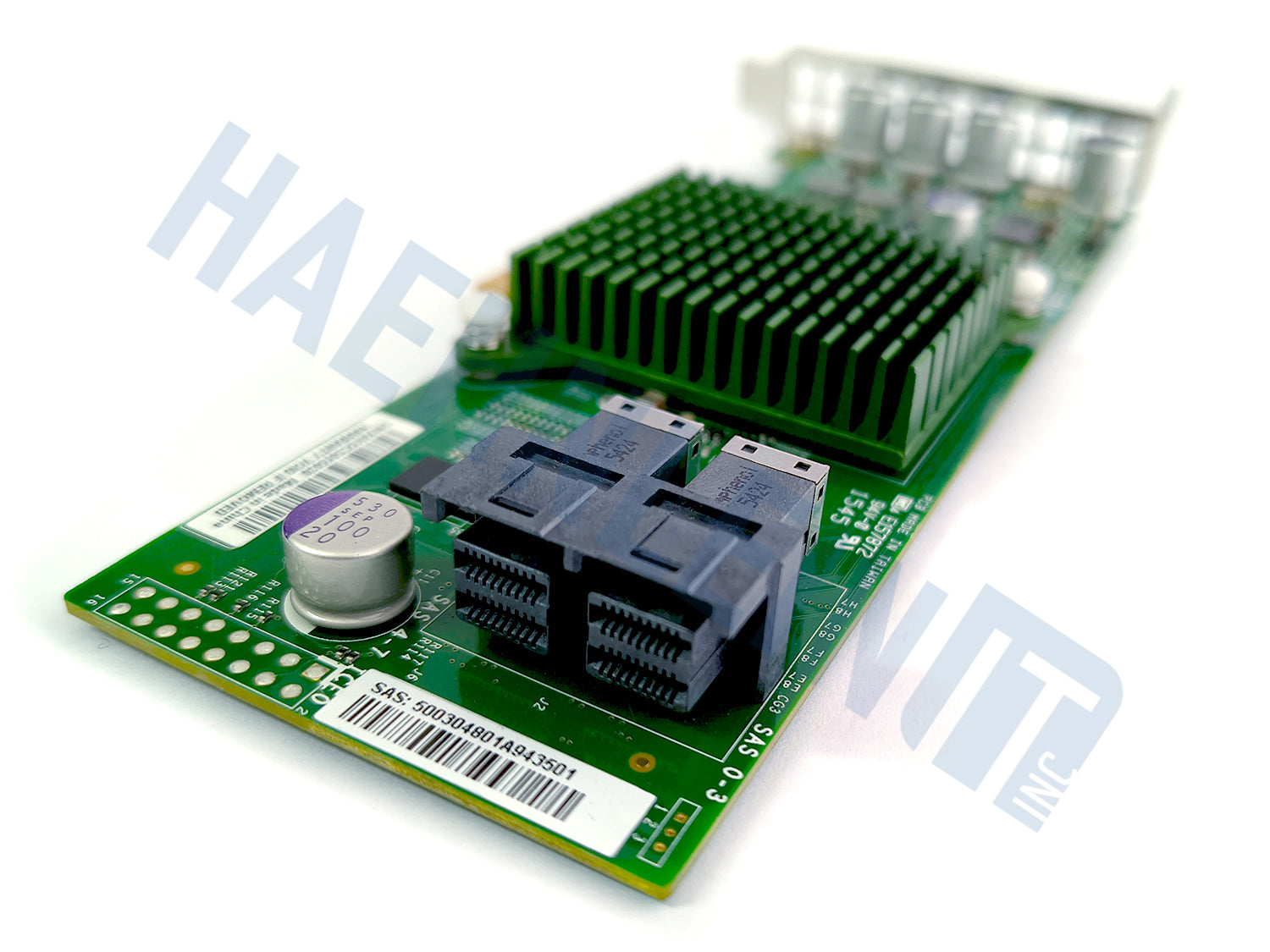

  • A green Supermicro AOC-S3008L-L8E PCI Express network card with a large heat sink, multiple capacitors, and a metal bracket, close-up of two miniSAS SFF-8643 ports, shown on a white background with a faint HaehnleinIT Inc watermark.

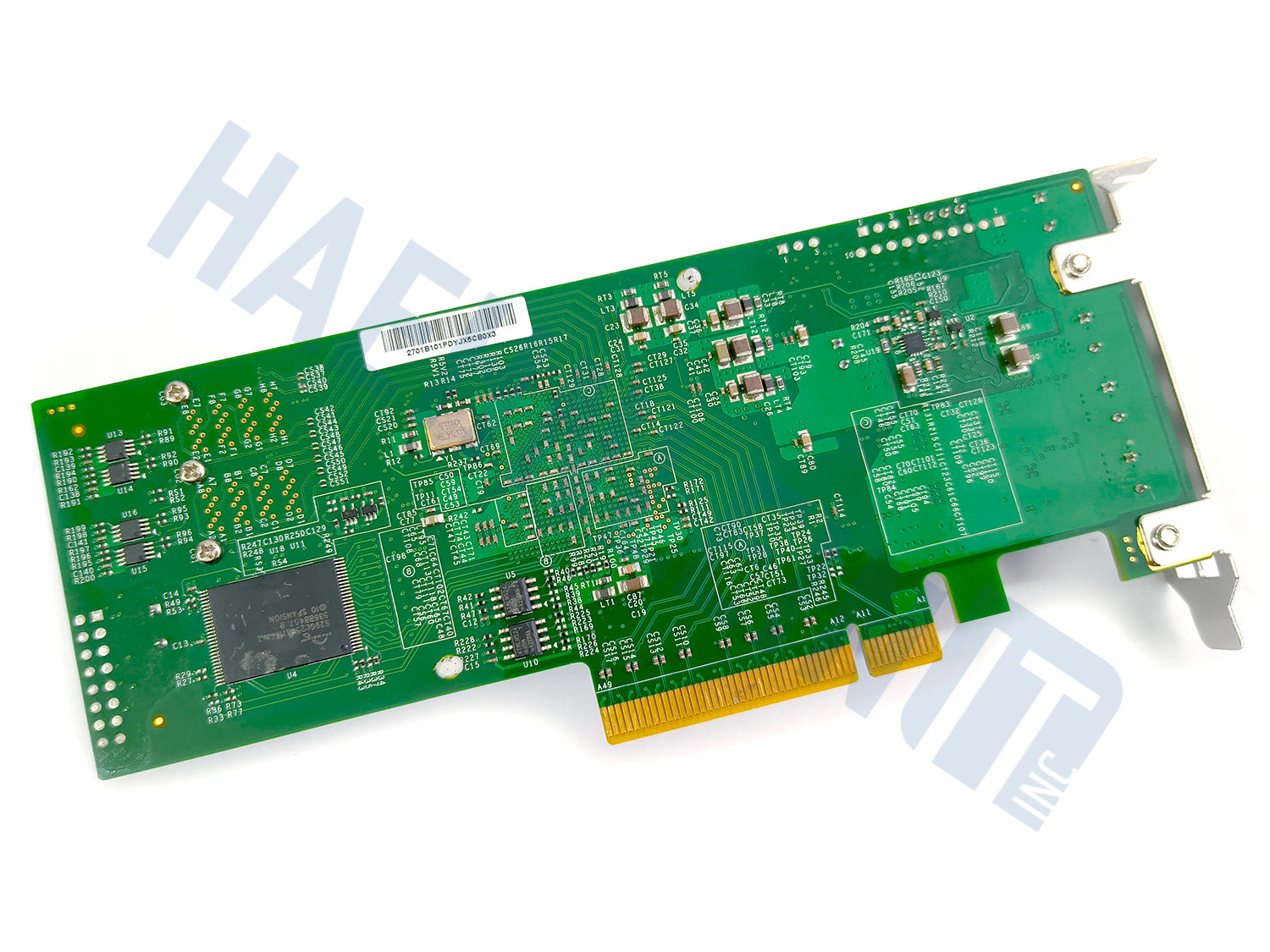

  • The backside of a green Supermicro AOC-S3008L-L8E PCI Express network card , shown on a white background with a faint HaehnleinIT Inc watermark.
1 5

Supermicro

Supermicro AOC-S3008L-L8E SATA / SAS HBA Controller RAID 12Gbps PCIe x8 Avago

Supermicro AOC-S3008L-L8E SATA / SAS HBA Controller RAID 12Gbps PCIe x8 Avago

$79.90 USD
$79.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

The Supermicro AOC-S3008L-L8E is a SATA / SAS HBA that lets you increase the number of hard drives connected to your server or workstation. The host bus adapter has a PCIe x8 3.0 interface as well as 8 internal ports for SATA or SAS drives via 2 internal miniSAS SFF-8643 ports. The maximum data transfer rate is 12 GBps. It is universally compatible with all known brands and is functionally identical to the Broadcom / LSI model 9311-8i. The HBA is flashed to the IT mode firmware 16.00.14. Delivery includes full and low profile brackets for installation.

  • The Supermicro host bus adapter serves as a hardware interface for storage devices.
  • Ports: PCIe x8 3.0, 2 miniSAS SFF-8643 Ports for up to 8 internal SATA / SAS drives
  • The maximum data transfer rate is 12 Gbps.
  • IT mode firmware 16.00.14 is installed.
  • Full and low profile brackets are included.
  • Alternatively labeled as: AOC-S3008L-L8E, 9311-8i, 9300-8i, HBA330

Specifications

MPN: AOC-S3008L-L8E
Bus type: PCIe x8 3.0
Interface: SFF-8643
Number of ports: 8
Max. data transfer rate: 12 Gbps
RAID levels: IT mode
Bracket height: Full + Low Profile
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
