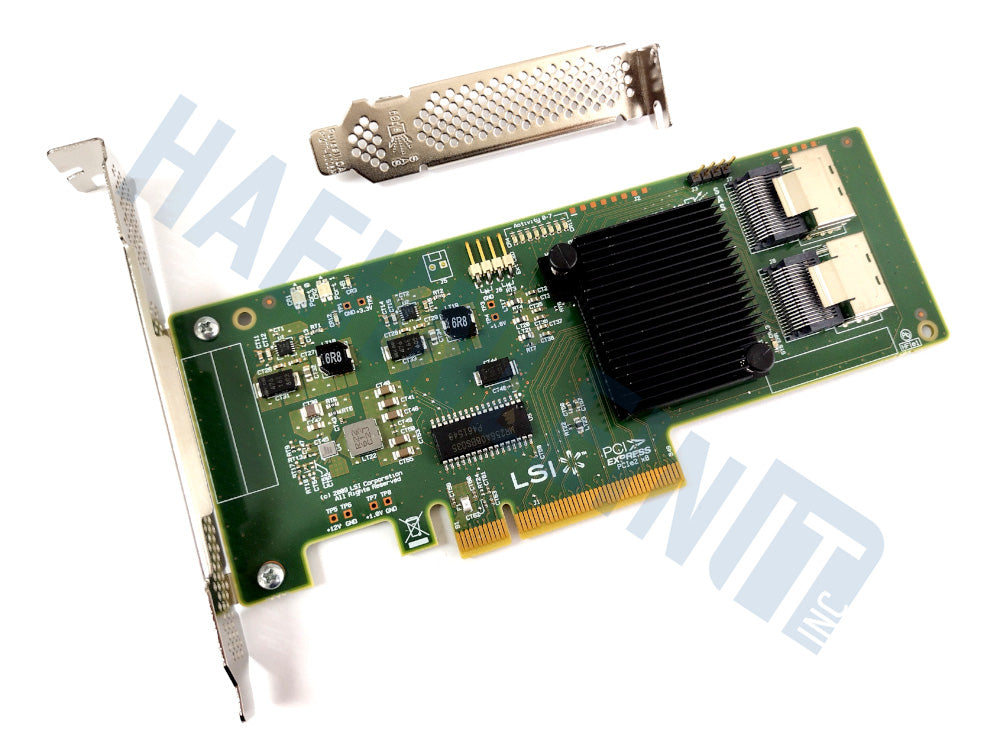

• LSI 9211-8i host bus adapter with a green PCB, black heatsink and gold PCI Express connector shown from above on a white background.

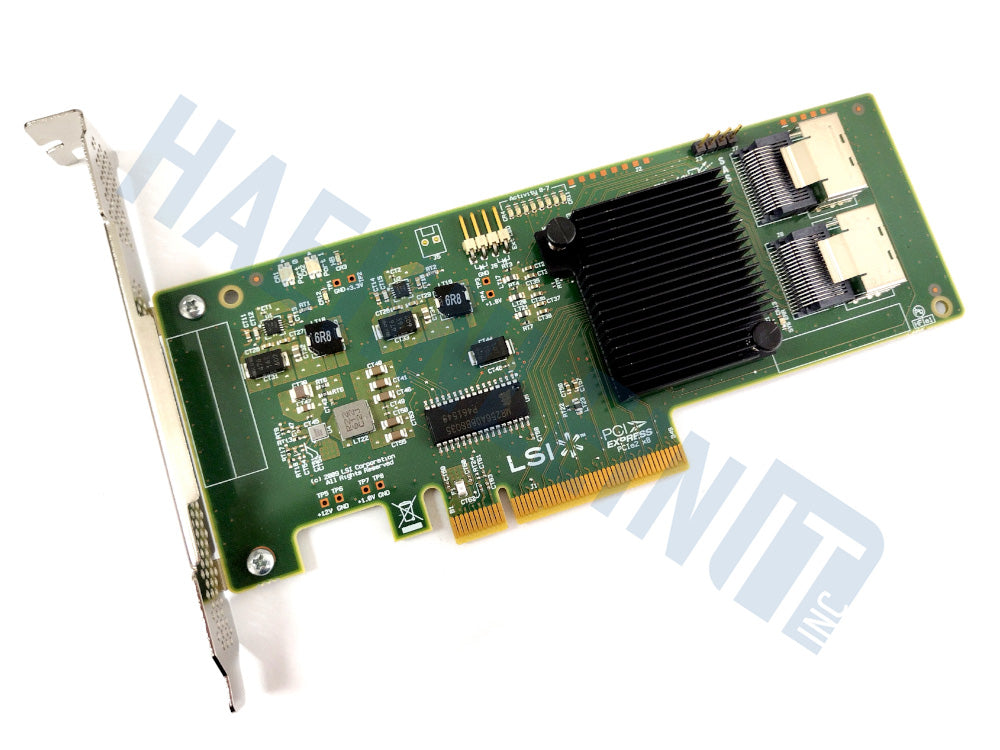

  • LSI 9211-8i host bus adapter with a green PCB, black heatsink, gold PCI-E connector, and metal bracket, shown on a white background with a faint watermark.

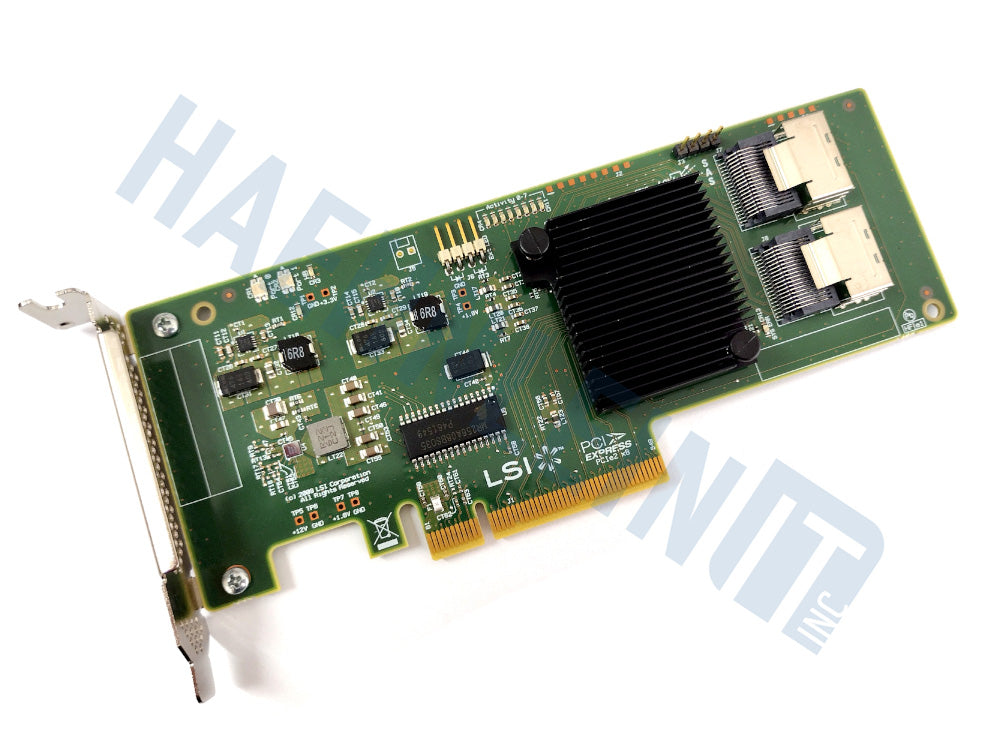

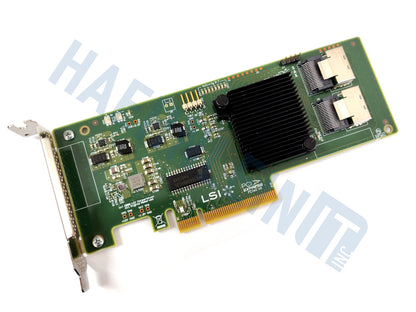

  • LSI 9211-8i host bus adapter with a green PCB, black heatsink, dual ports, and a gold PCI connector, shown on a white background with a faint watermark.

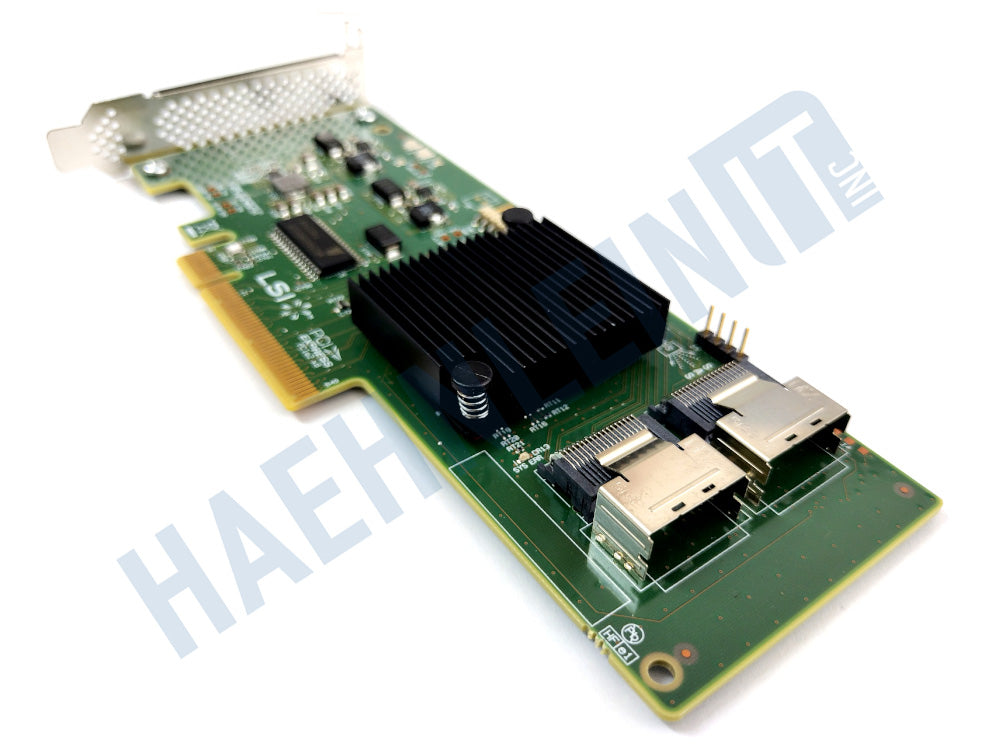

  • LSI 9211-8i host bus adapter with two ports, a black heatsink, and a gold-plated PCIe connector, shown on a white background with a faint watermark.

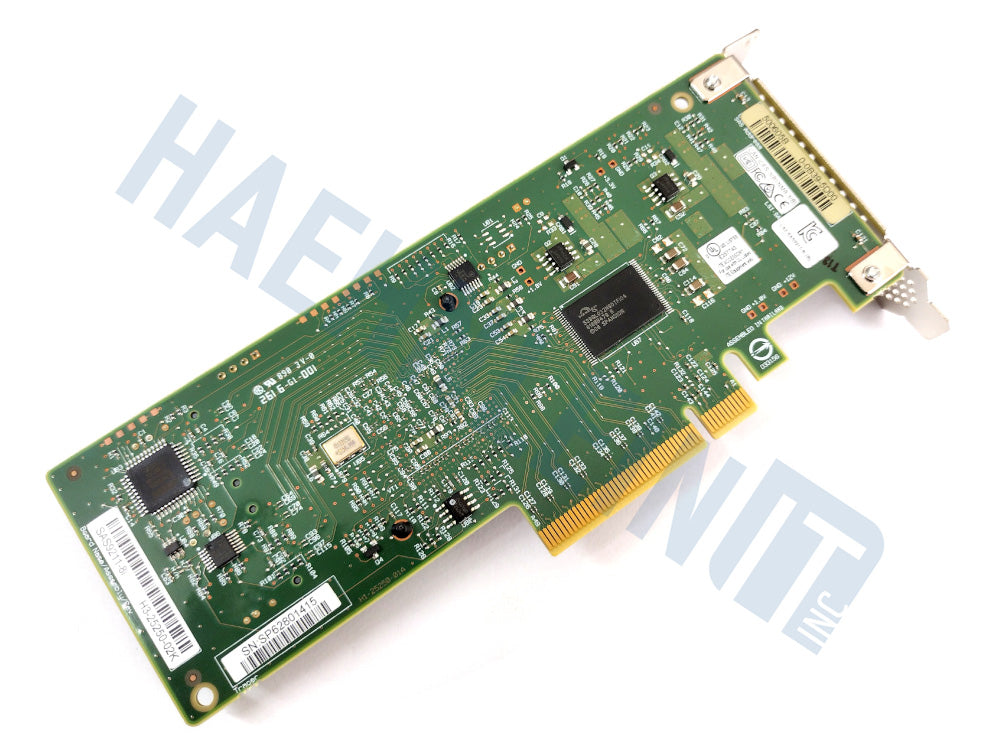

  • Backside of a LSI 9211-8i host bus adapter: A green printed circuit board card with gold PCI connector and various electronic components, photographed on a white background with a faint watermark.
1 5

Broadcom

LSI Broadcom 9211-8i SAS2008 6G SATA SAS HBA PCIe x8 Avago ZFS IT Mode TrueNAS LSI00194

LSI Broadcom 9211-8i SAS2008 6G SATA SAS HBA PCIe x8 Avago ZFS IT Mode TrueNAS LSI00194

$75.90 USD
$75.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

The LSI / Broadcom host bus adapter 9211-8i lets you increase the number of hard drives connected to your server or workstation. The adapter offers a PCIe x8 2.0 interface as well as 8 SATA / SAS interfaces via 2 miniSAS SFF-8087 ports. The maximum data transfer rate is 6 Gbps.  The latest IT mode firmware is installed, and the adapter is universally compatible with all known brands. Full und low profile brackets for installation are included.

  • The host bus adapter serves as a hardware interface for storage devices.
  • Ports: PCIe x8 2.0, 2x miniSAS SFF-8087 ports for up to 8 SATA / SAS drives
  • The maximum data transfer rate is 6 GB per second.
  • Full and low profile brackets are included.
  • The latest IT mode firmware is installed on the HBA.
  • Perfect for FreeNAS, TrueNAS, Unraid, ZFS, Windows, Linux and other systems.

Specifications

MPN: LSI00194
Bus type: PCIe x8 2.0
Interface: SFF-8087 and SAS / SATA
Number of ports: 8
Max. data transfer rate: 6 Gbps
RAID levels: IT mode
Bracket height: Full + Low Profile
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
