Lenovo

Lenovo 930-16i 9460-16i 4G PCIe x8 3.0 RAID Card 12Gbps incl LSI CVPM05

Lenovo 930-16i 9460-16i 4G PCIe x8 3.0 RAID Card 12Gbps incl LSI CVPM05

$479.90 USD
$479.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

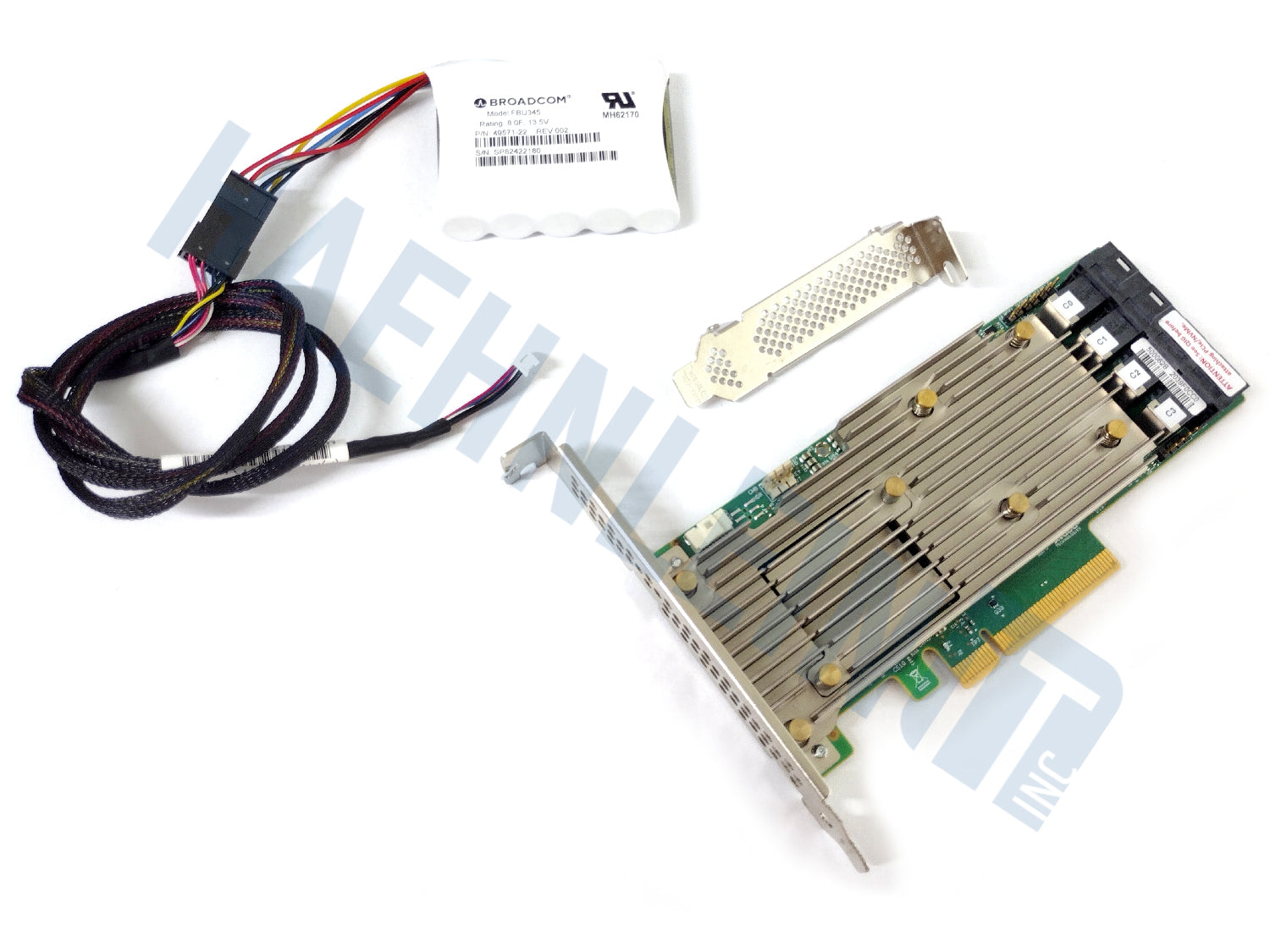

This listing is for a bundle containing one Lenovo ThinkSystem 930-16i RAID controller and one matching cachevault module CVPM05, which saves the data in the cache in case of a power outage. This way, data loss can be avoided.

The Lenovo Thinkserver 930-16i is a professional SATA / SAS RAID controller for servers and workstations. It allows you to increase the number of connected hard drives. The controller organizes and coordinates these to regulate read and write access.

The RAID controller offers an interface with PCIe x8 3.1 and 4 GB Cache. Via 4 miniSAS SFF-8643 ports you can connect up to 16 SATA or SAS drives. It is universally compatible with all known brands. The chipset is LSI Roc SAS3516, the component is identical with the model Broadcom 9460-16i. In addition to the controller, you receive the compatible battery module (cachevault CVPM05) as well as full and low profile brackets for installation.

  • Ports: PCIe x8 3.1, 4x miniSAS SFF-8643 for up to 16 SATA/SAS drives
  • Maximum data transfer rate: 12Gbps
  • 4GB onboard cache memory
  • Chipset: LSI RoC SAS3516
  • RAID levels: 0, 1, 5, 6, 10, 50, 60
  • Full & low profile brackets included
  • CVPM05 Cachevault module included
  • Alternatively labeled as: 930-16i, 9460-16i, 7Y37A01085

Specifications

MPN: 7Y37A01085
Bus type: PCIe x8 3.1
Interface: SFF-8643
Number of ports: 16
Max. data transfer rate: 12 Gbps
RAID levels: 0, 1, 5, 6, 10, 50, and 60
Cache: 4GB
Bracket height: Full + Low Profile
Included accessories: Battery module
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
