Lenovo
Lenovo 430-16i / Broadcom 9400-16i SATA SAS HBA Controller 12G IT-Mode + cables
Lenovo 430-16i / Broadcom 9400-16i SATA SAS HBA Controller 12G IT-Mode + cables
Regular price
$219.90 USD
Regular price
Sale price
$219.90 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

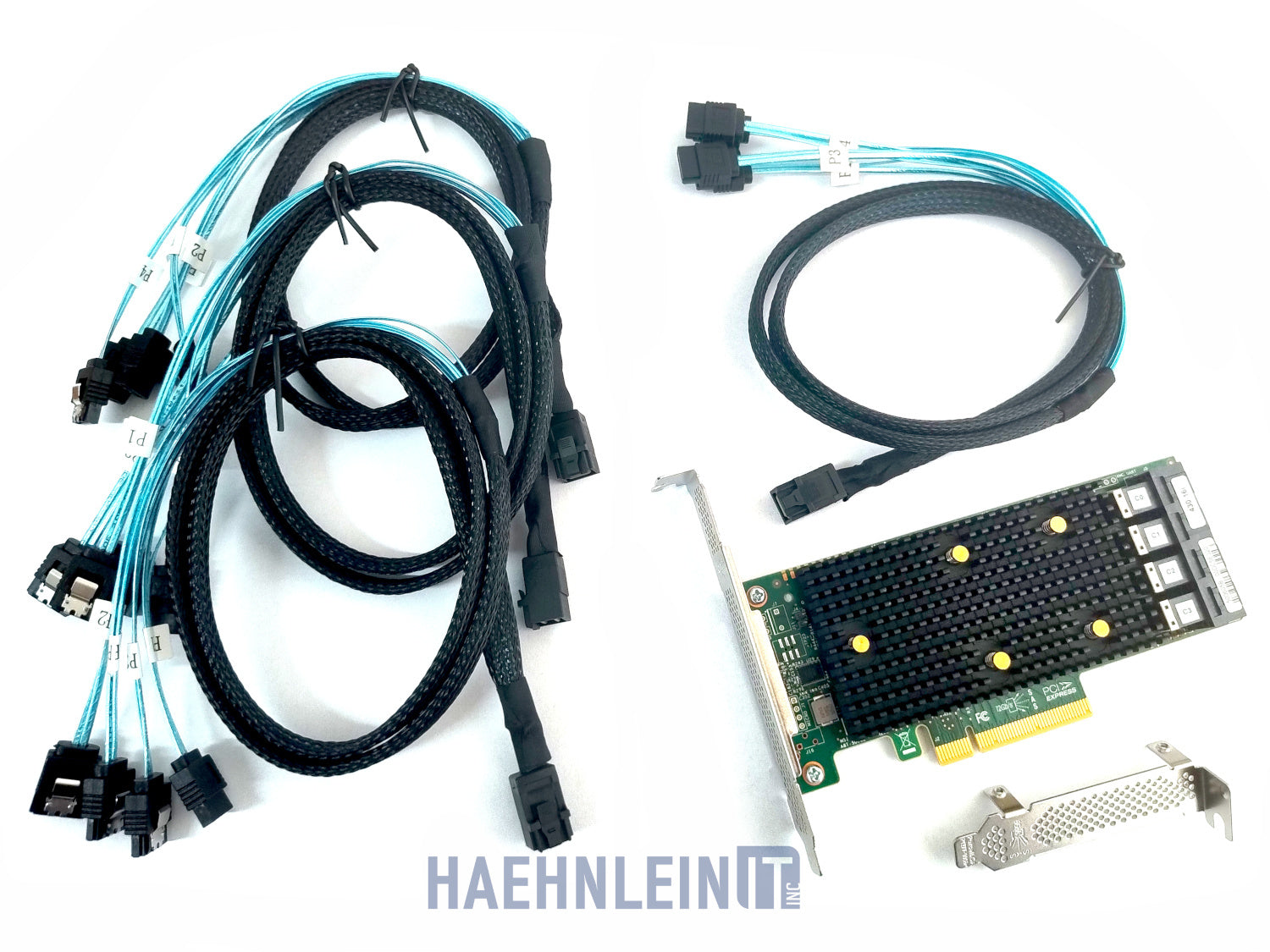

This listing is for a bundle, containing one Lenovo 430-16i HBA as well as 4 miniSAS SFF-8643 to 4x SATA cables (length: 1m / 3.25ft) for connecting up to 16 hard drives.
The host bus adapter 430-16i by Lenovo lets you increase the number of hard drives connected to your server or workstation. The HBA has a PCIe x8 3.0 interface as well as 16 internal ports for SATA or SAS drives via 4 miniSAS SFF-8643 ports. The maximum data transfer rate is 12 GBps. It is universally compatible with all known brands and technically identical to the model Broadcom / LSI 9400-16i. The HBA is flashed to IT mode firmware. Delivery includes full and low profile brackets for installation as well as 4 miniSAS to 4x SATA cables.
- The Lenovo host bus adapter serves as a hardware interface for storage devices.
- Ports: PCIe x8 3.1, 4 miniSAS SFF-8644 Ports for up to 16 internal SATA / SAS drives
- The maximum data transfer rate is 12 Gbps.
- IT mode firmware is installed.
- Full and low profile brackets are included.
- Four matching miniSAS SFF-8643 to 4x SATA cables are included.
- Alternatively labeled as: 430-16i, 9400-16i, 7Y37A01089
