HPE MR416i-P RAID Controller 4GB P06367-B21 Tri-Mode NVME SAS SATA PCIe 4 Gen10
HPE MR416i-P RAID Controller 4GB P06367-B21 Tri-Mode NVME SAS SATA PCIe 4 Gen10
Couldn't load pickup availability

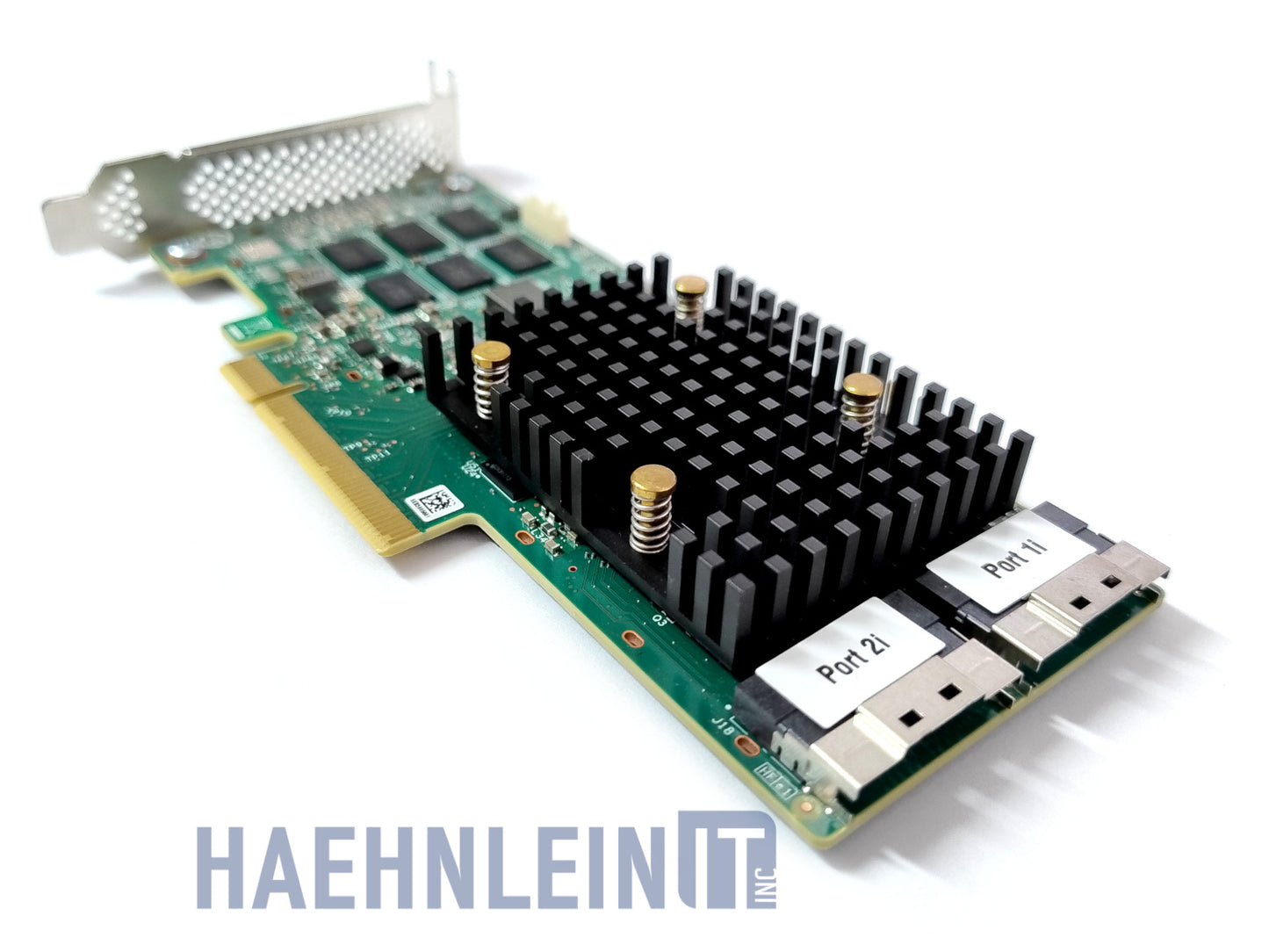

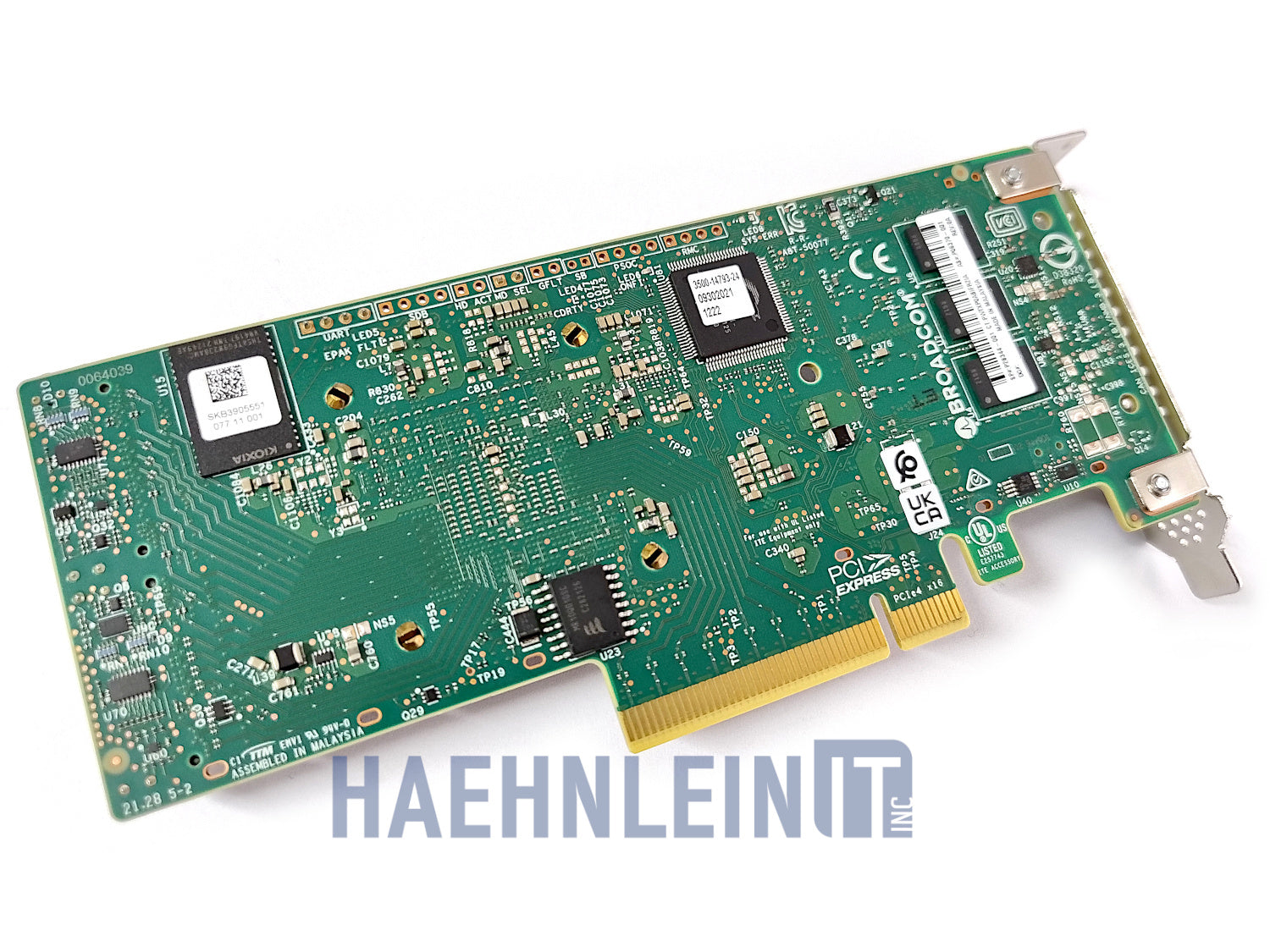

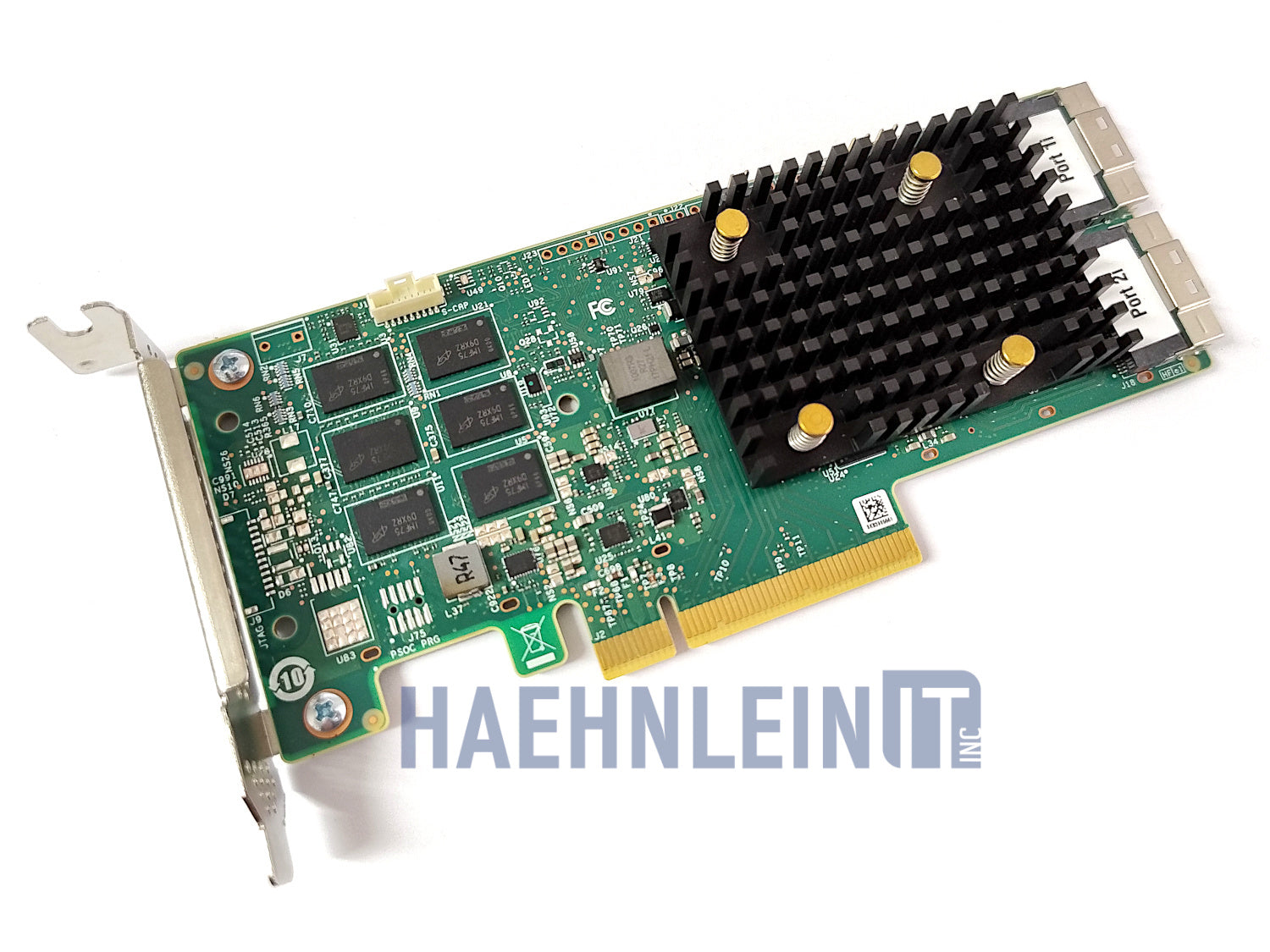

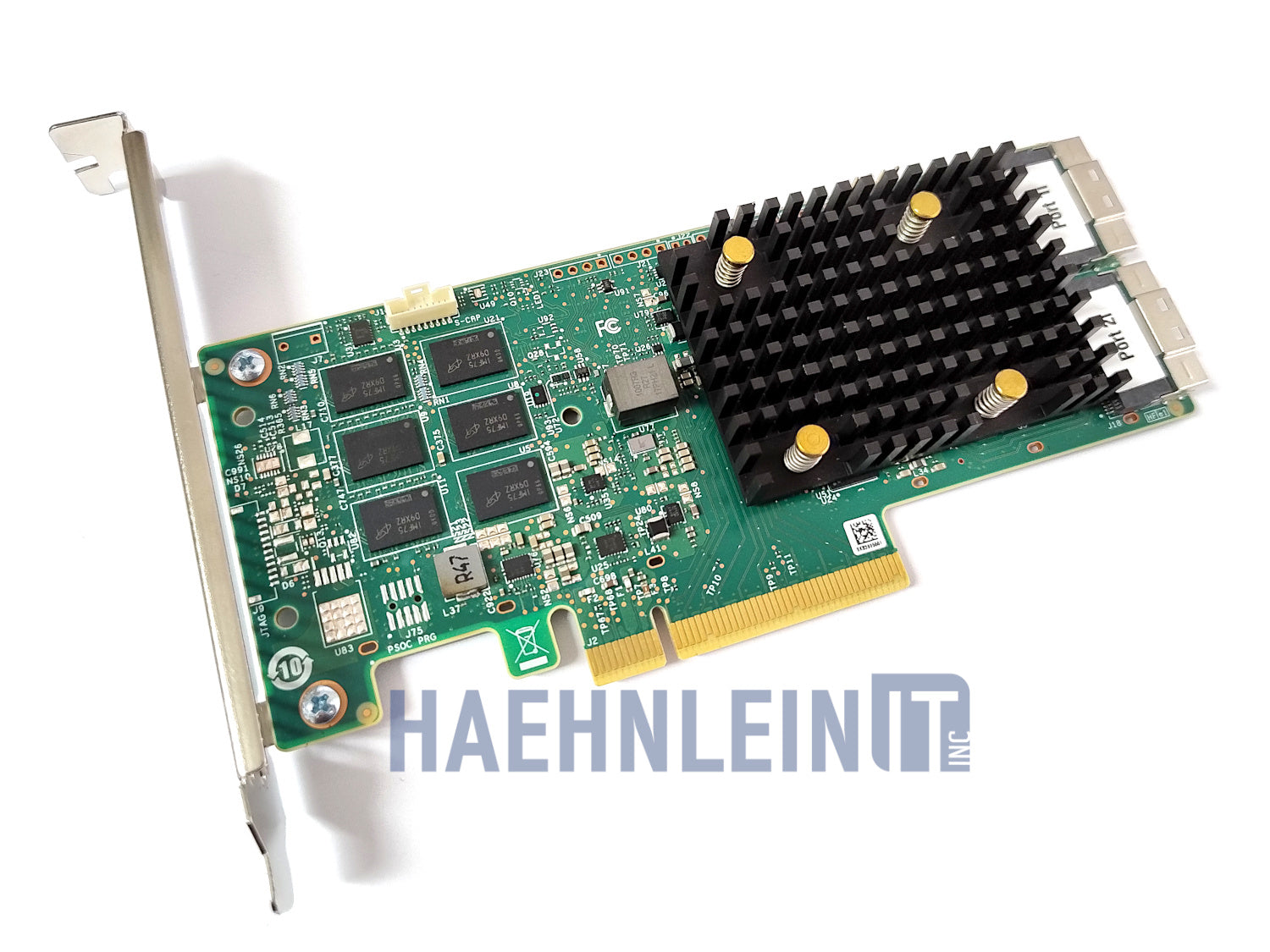

The HPE / Broadcom MegaRAID MR416I-p is a professional SATA / SAS / NVMe Tri-Mode RAID controller for servers and workstations. It allows you to increase the number of connected hard drives. The controller organizes and coordinates these to regulate read and write access. The RAID controller offers an interface with PCIe x8 4.0 and 4 GB Cache. Via 2 SlimSAS SFF-8654 ports you can connect up to 16 SATA or SAS drives. It is comparable to the model 9560-16i by Broadcom and universally compatible with all known brands. In addition to the controller, you receive full and low profile brackets for installation.
- Ports: PCIe x8 4.0, 2x SlimSAS SFF-8654 for up to 16 SATA/SAS drives
- Maximum data transfer rate: 12Gbps
- 4GB onboard cache memory
- RAID levels: 0, 1, 5, 6, 10, ...

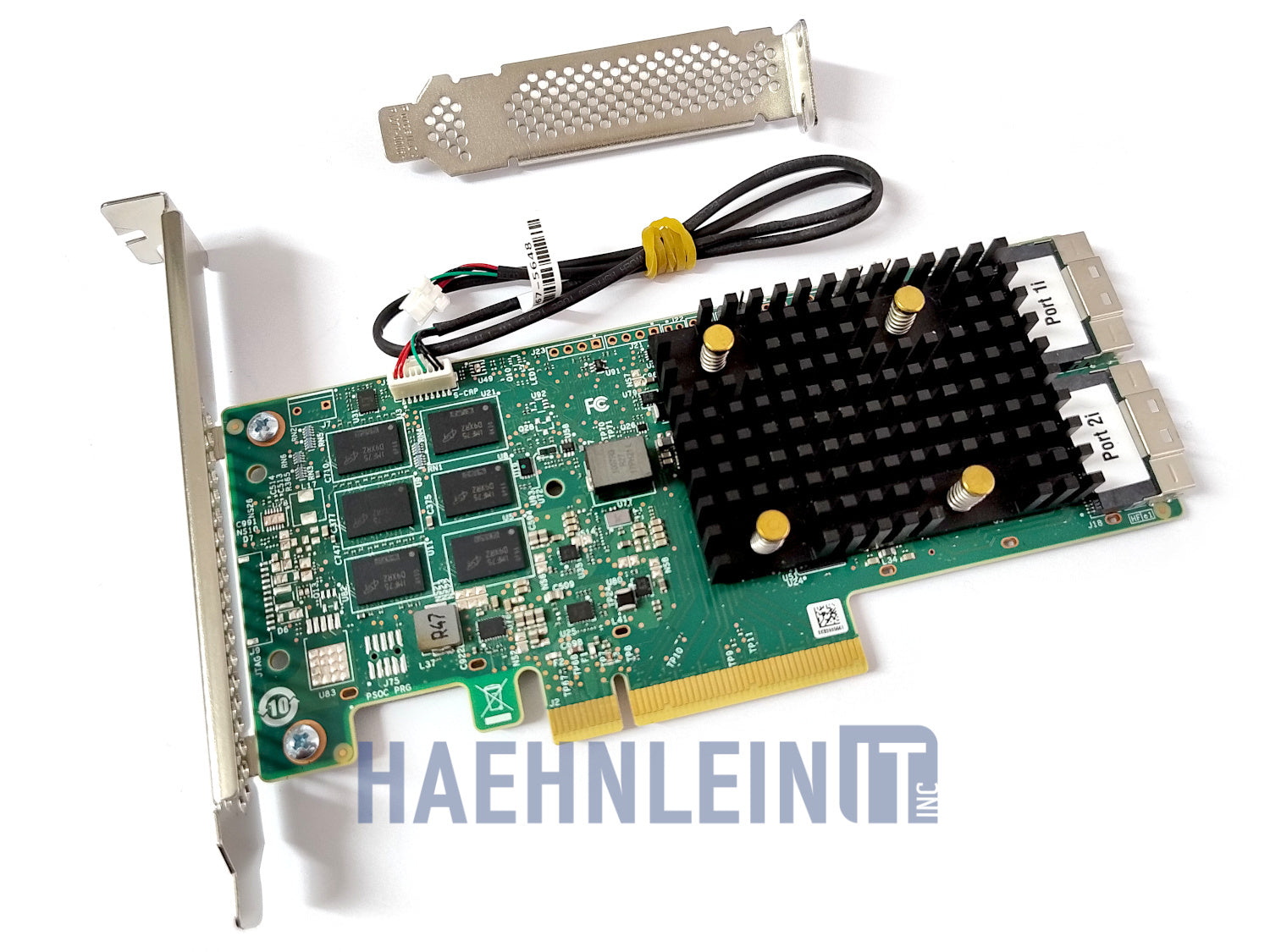

- Full & low profile brackets included
- Alternatively labeled as: MR416I-p, P06367-B21, 9560-16i
Specifications
Share

Collapsible content
Safety Precautions
ATTENTION:
Before changing your system configuration, always back up your data to prevent data loss.
Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.
Before installing components, always consult the manufacturer’s manual.
![]() |
CAUTION: Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system. During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns. Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them. |
