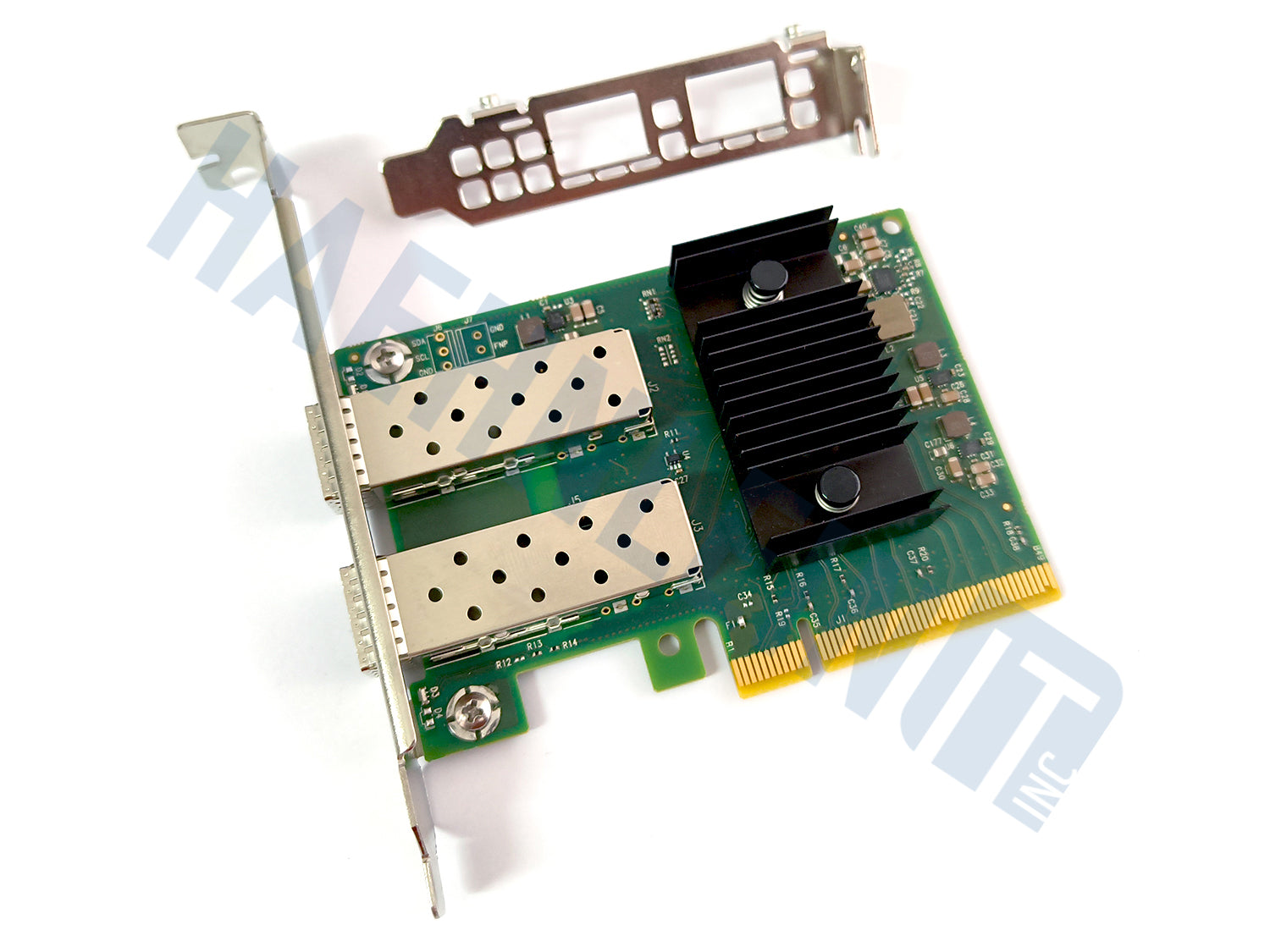

• A green OEM Mellanox MCX631102 PCI Express network card with two silver SFP28 ports, a black heatsink, and a gold PCI connector, shown with a full height and a low profile metal bracket on a white background and a faint HaehnleinIT Inc watermark.

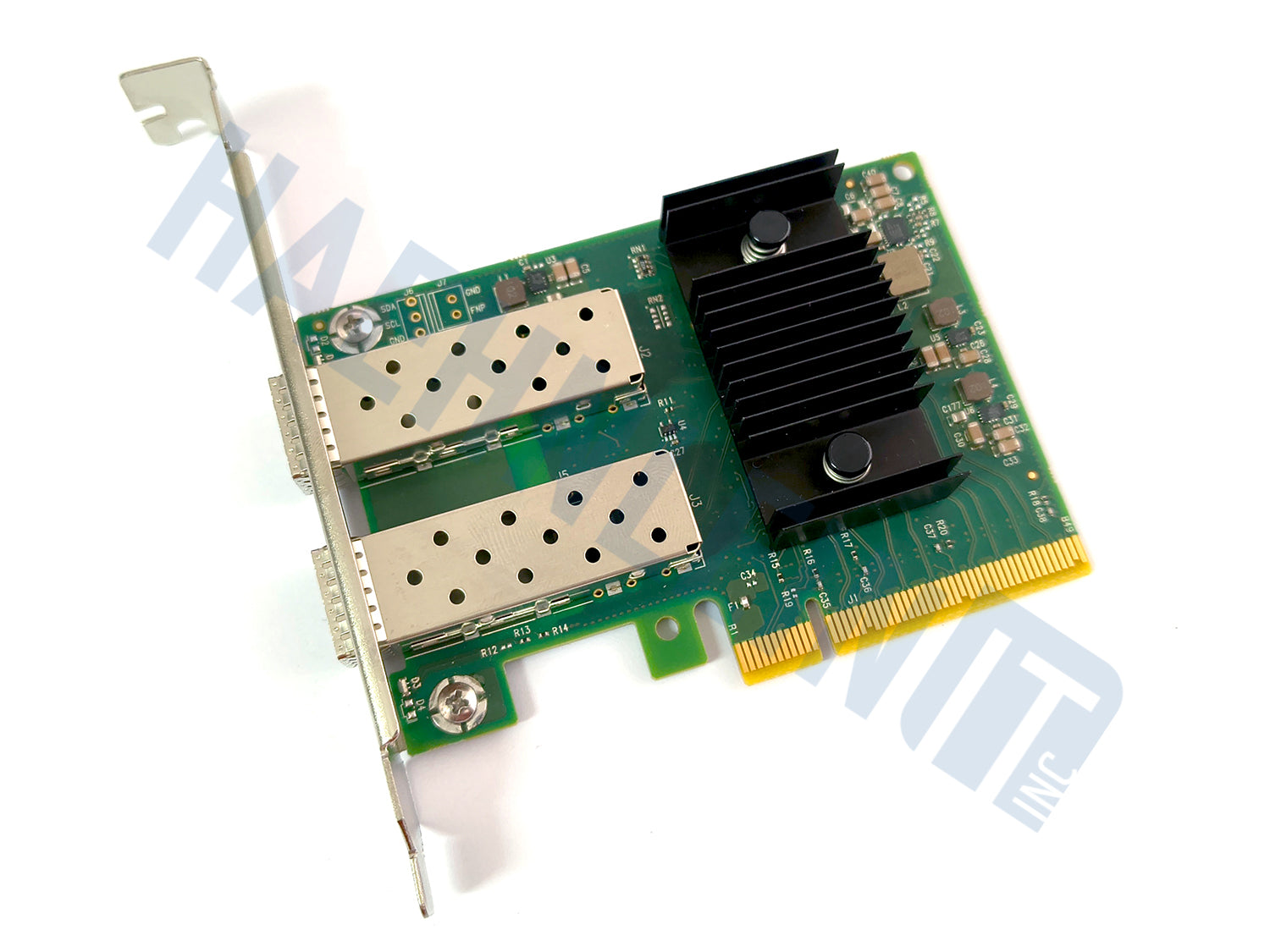

  • A green OEM Mellanox MCX631102 PCI Express network card with two silver SFP28 ports, a black heatsink, and a gold PCI connector, shown with a full height metal bracket on a white background and a faint HaehnleinIT Inc watermark.

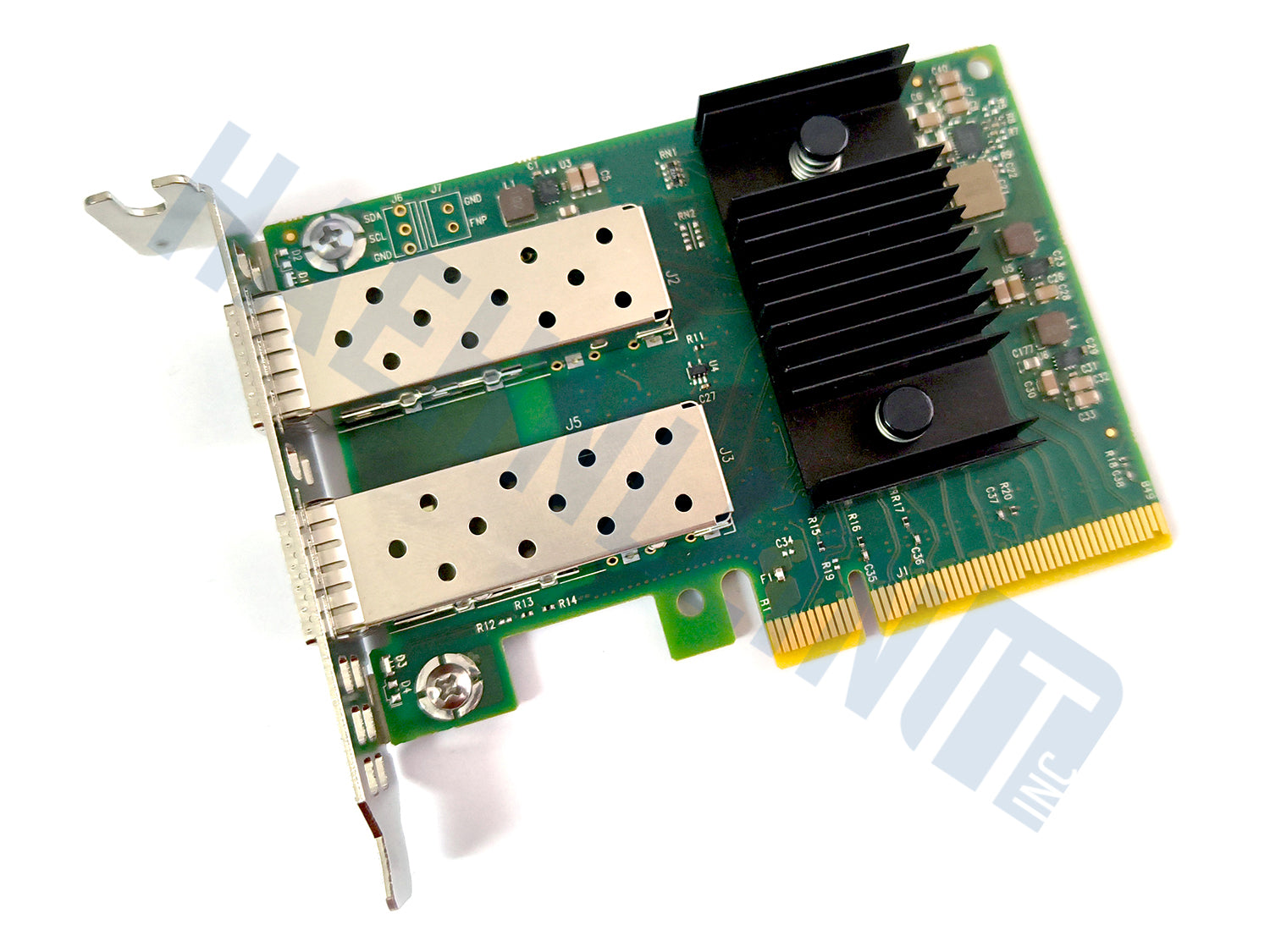

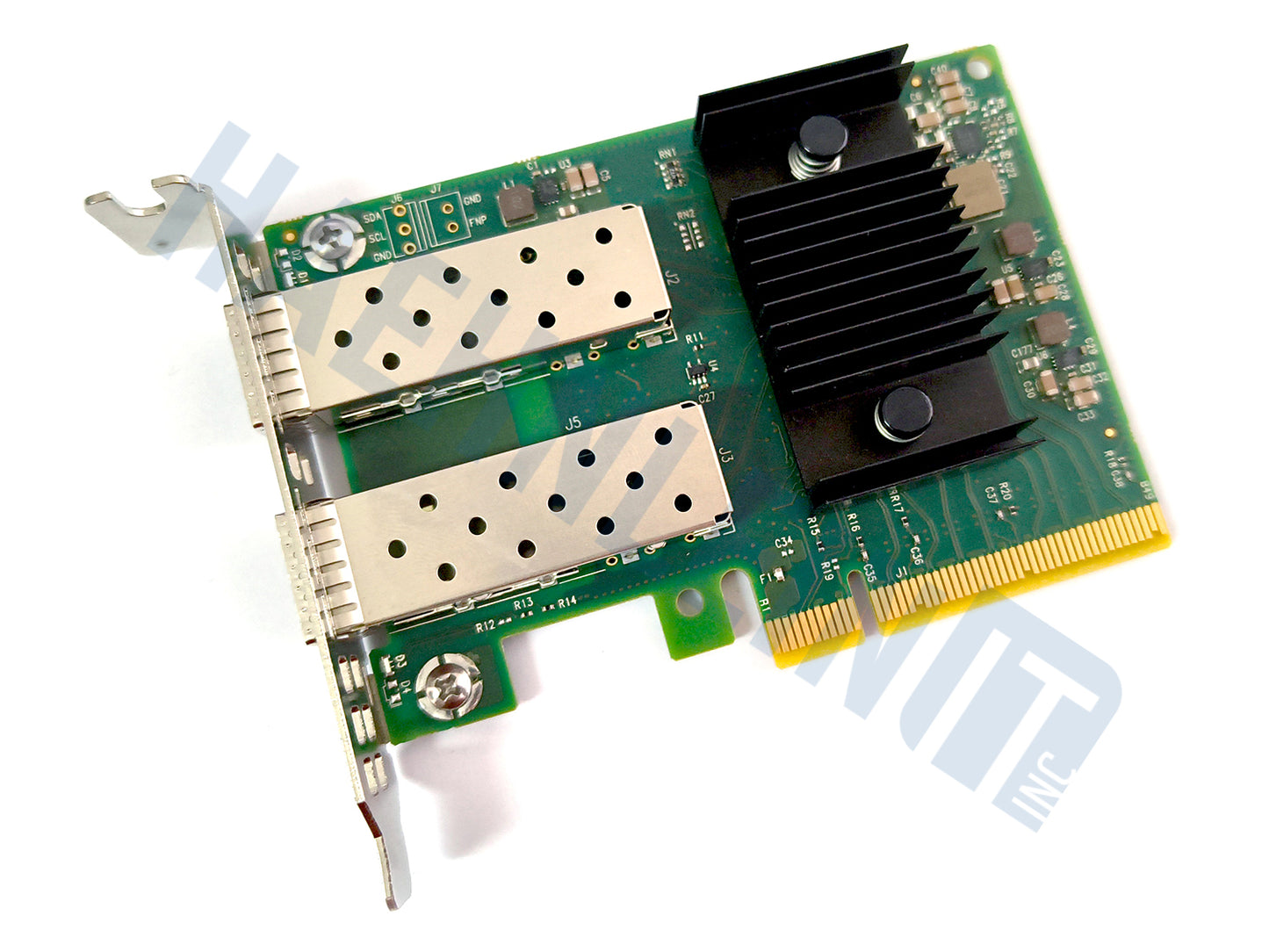

  • A green OEM Mellanox MCX631102 PCI Express network card with two silver SFP28 ports, a black heatsink, and a gold PCI connector, shown with a low profile metal bracket on a white background and a faint HaehnleinIT Inc watermark.

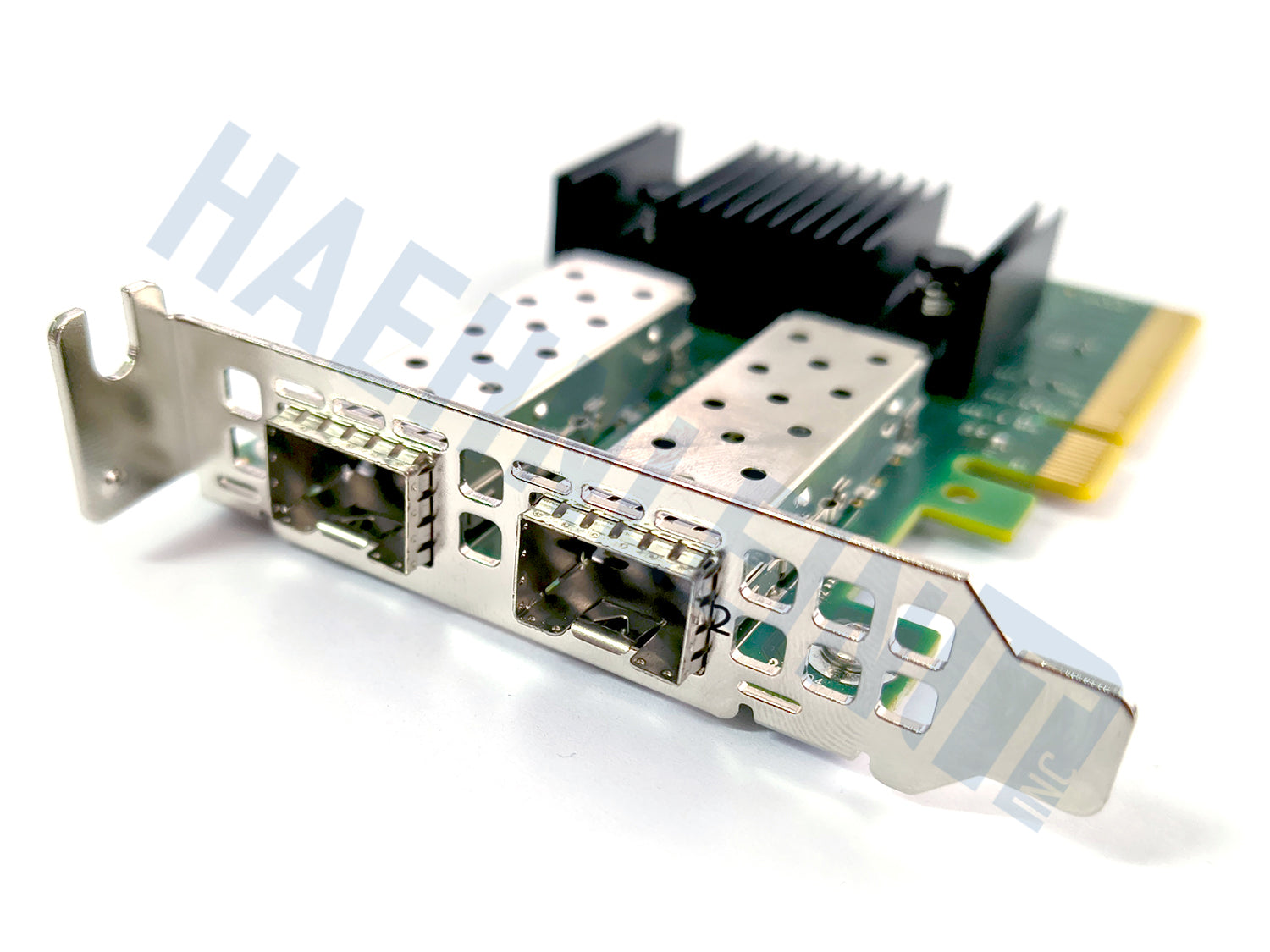

  • A green OEM Mellanox MCX631102 PCI Express network card, close-up of two silver SFP28 ports, shown with a low profile metal bracket on a white background and a faint HaehnleinIT Inc watermark.

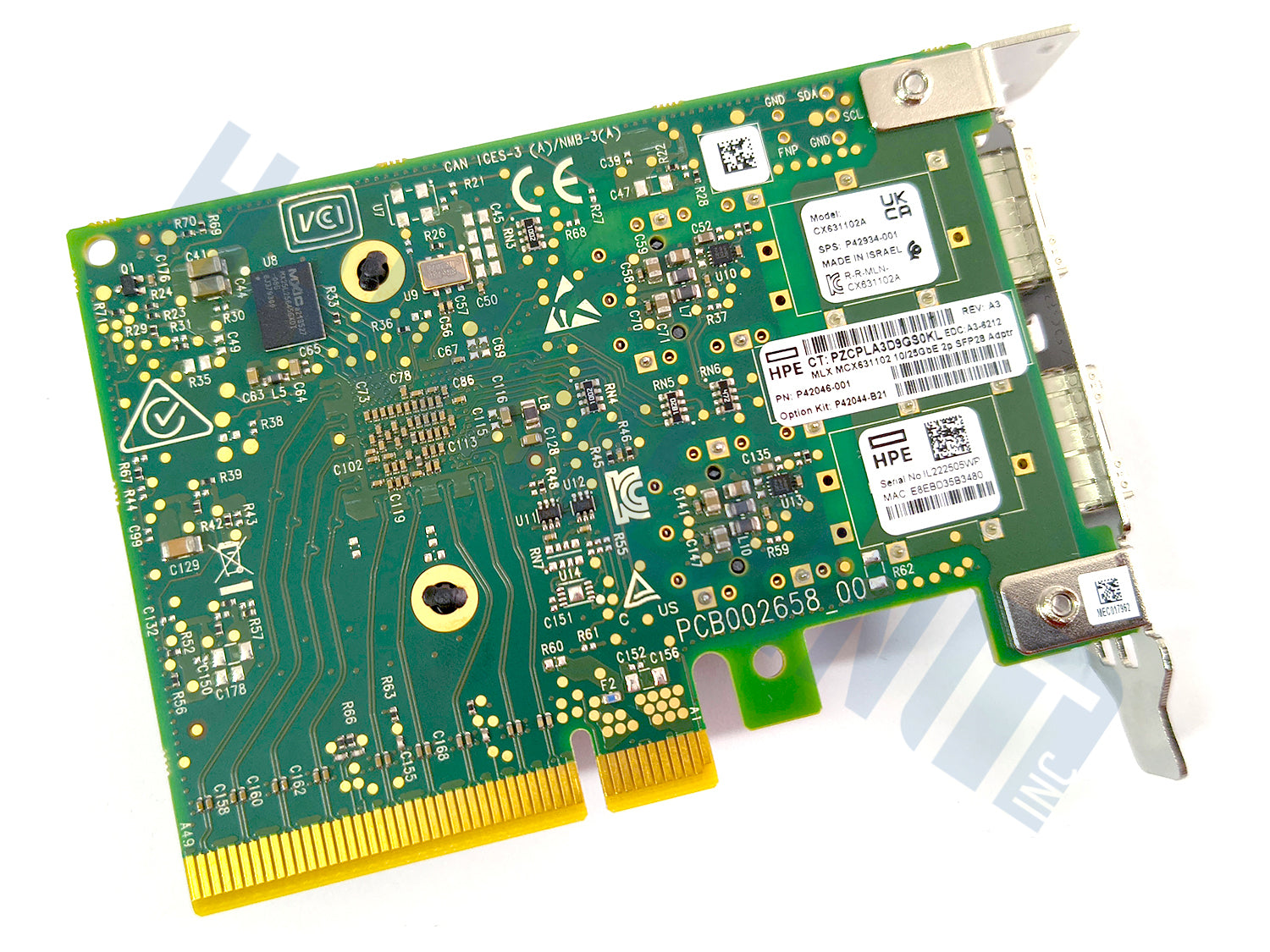

  • The backside of a green OEM Mellanox MCX631102 PCI Express network card with barcode labels and HPE brand, a gold PCI connector, shown with a low profile metal bracket on a white background and a faint HaehnleinIT Inc watermark.
1 5

HPE

HPE Mellanox ConnectX-6 MCX631102 10/25GbE Dual Port SFP28 PCIe x8 4.0 P42934-00

HPE Mellanox ConnectX-6 MCX631102 10/25GbE Dual Port SFP28 PCIe x8 4.0 P42934-00

$269.90 USD
$269.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

This is a professional HPE / Mellanox  MLX MCX631102 25Gbit Dual Port network adapter for the PCIe x8 4.0 interface. You can use it to increase your network’s connectivity and adjust the data flow to your needs. The NIC has two SFP28 ports that can be connected to your system via transceiver modules or adapter cables. The NIC is cooled passively. Full and low profile brackets for installing the card are included.

  • Ports: 1x PCIe x8 4.0, 2x SFP28
  • The maximum data transfer rate is 25 Gbps via Ethernet
  • The NIC is cooled passively.
  • OEM Version: The adapter is manufactured by Mellanox, but labeled by HPE
  • Full and low profile brackets are included.
  • Alternatively labeled as: MLX MCX631102, CX631102A, MCX631102AS-ADAT, P42934-001, P42044-B21, Mellanox ConnectX-6

Specifications

MPN: MCX631102AS-ADAT
Bus type: PCIe x8 4.0
Interface: SFP28
Number of ports: 2
Max. data transfer rate: 25 Gbps
Protocol: Ethernet
Bracket height: Full + Low Profile
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
