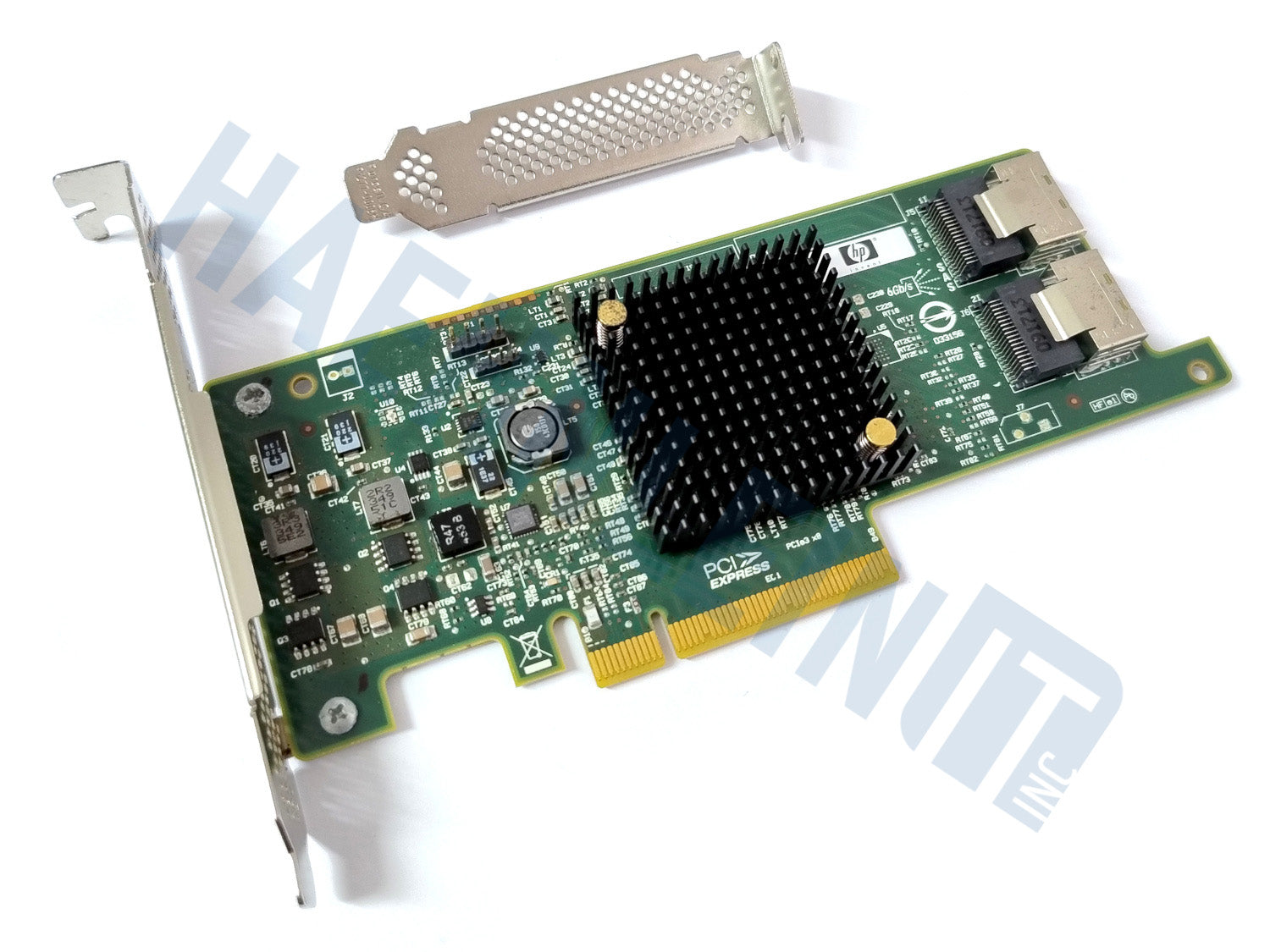

• An HP H220 host bus adapter with a large black heatsink, two ports, gold PCIe connector, and silver metal bracket, shown on a white background with a faint watermark.

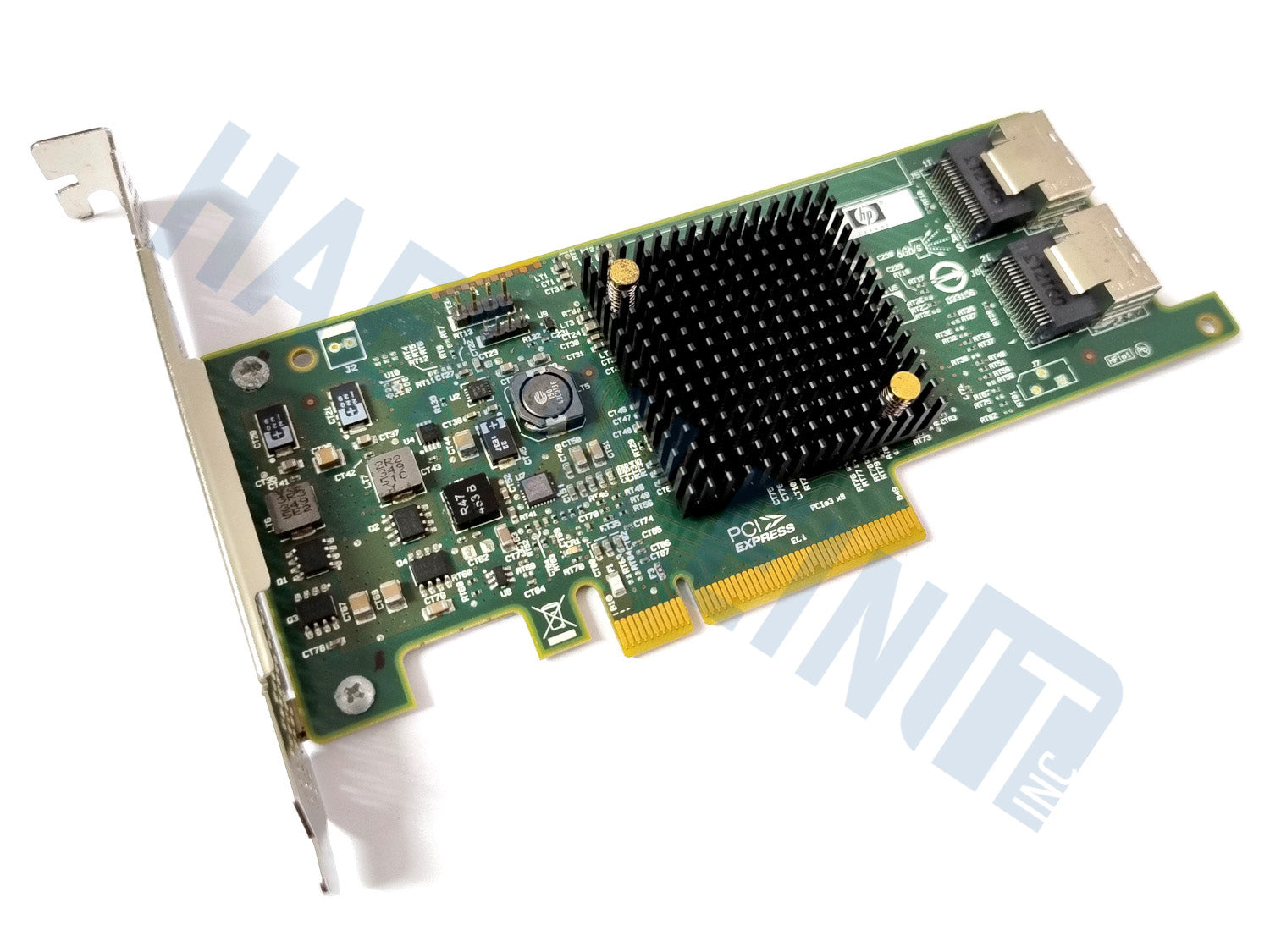

  • An HP H220 host bus adapter with a large black heatsink, gold PCIe connector, and two ports, shown on a white background with a faint watermark.

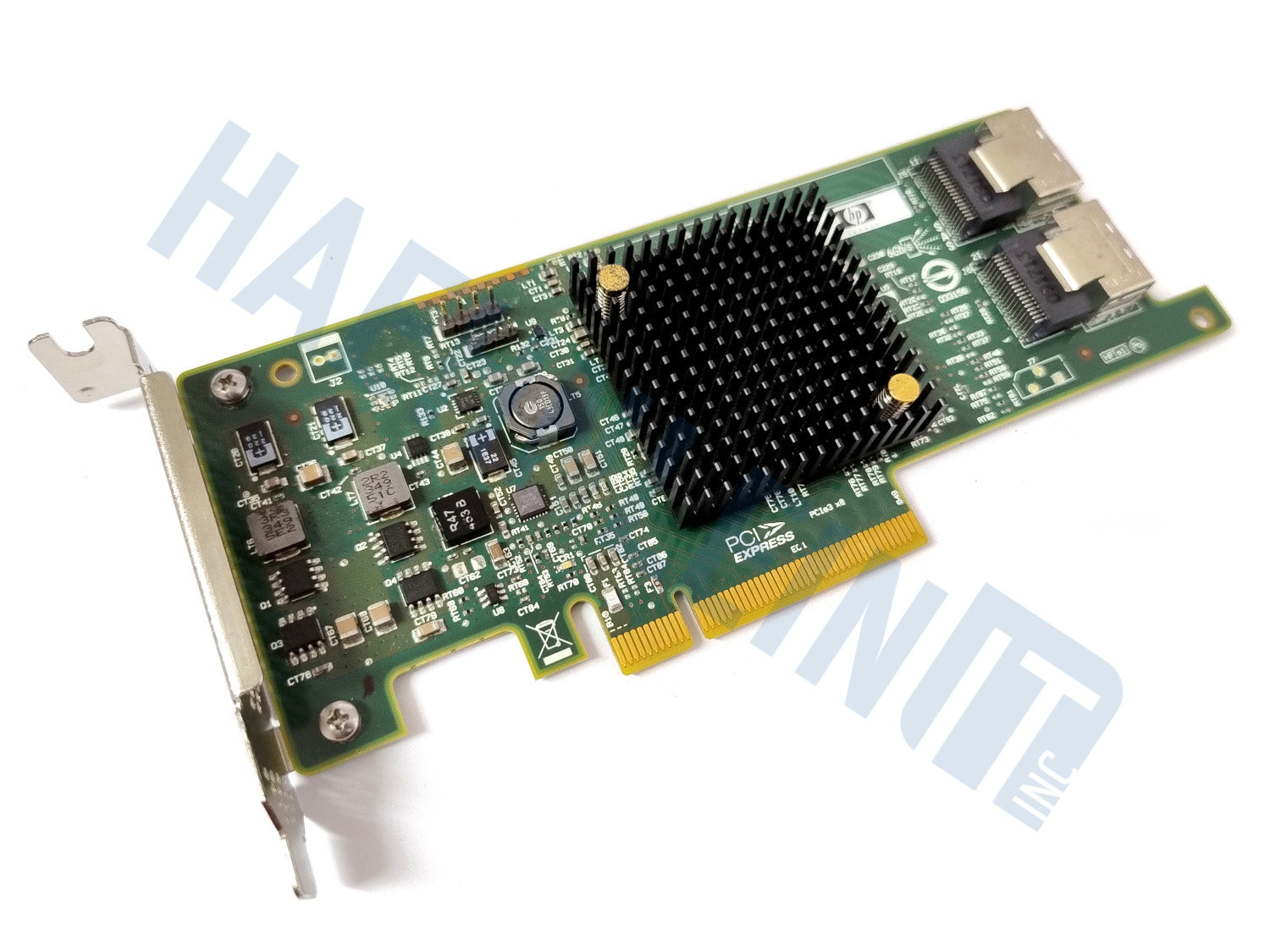

  • An HP H220 host bus adapter with a large black heatsink, two ports, and a silver metal bracket, shown on a white background with a faint watermark.

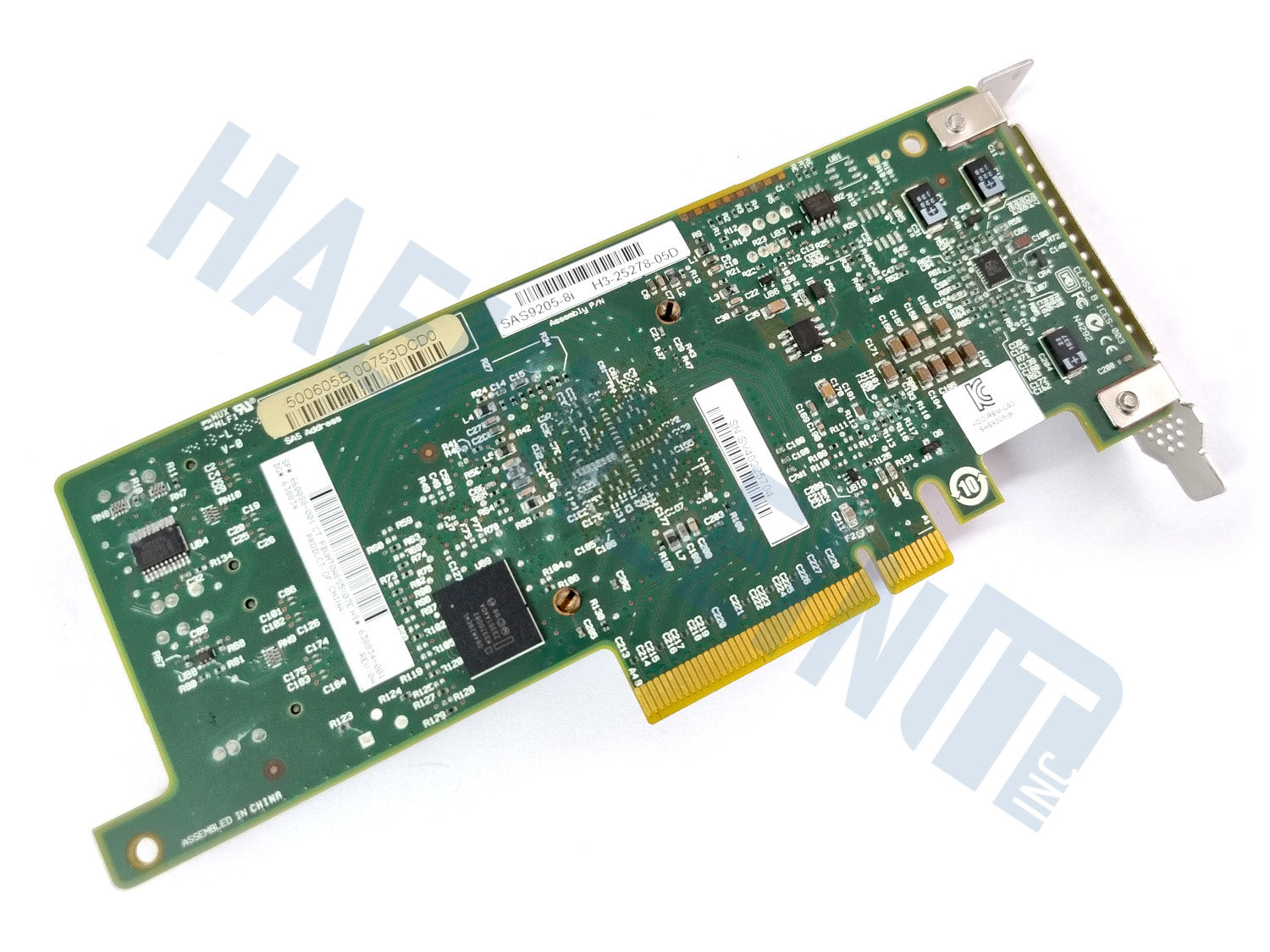

  • The backside of an HP H220 host bus adapter: A green printed circuit board card with a gold PCI connector, various electronic components, and white labels, shown on a white background with a faint watermark.

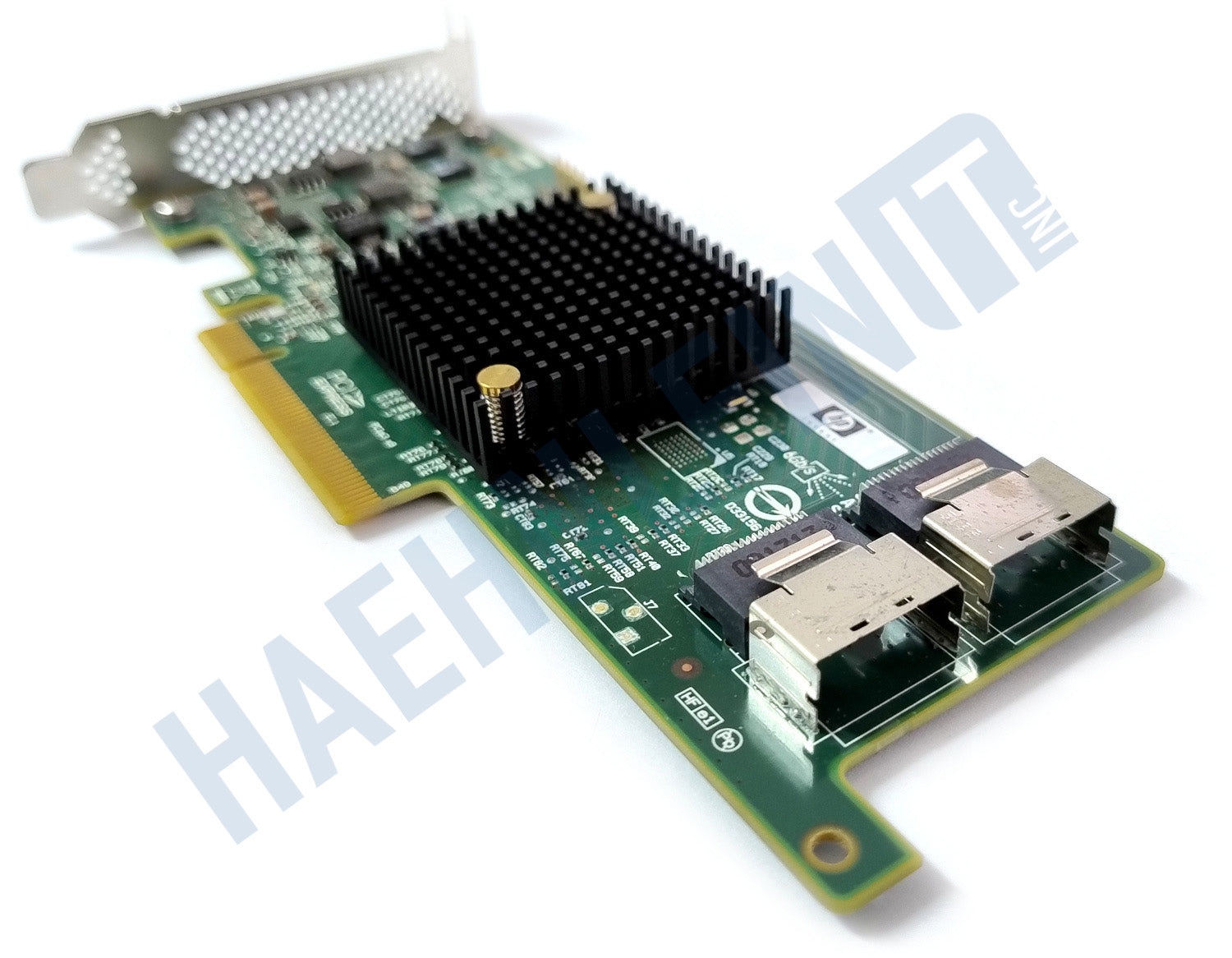

  • An HP H220 host bus adapter with a large black heatsink, and a metal PCIe connector, close up of the two ports, shown on a white background with a faint watermark.
1 5

HP

HP H220 SAS2308 6G SATA SAS HBA PCIe x8 Avago LSI ZFS IT Mode TrueNAS 9205-8i

HP H220 SAS2308 6G SATA SAS HBA PCIe x8 Avago LSI ZFS IT Mode TrueNAS 9205-8i

$75.90 USD
$75.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

The HP H220 host bus adapter lets you increase the number of hard drives connected to your server or workstation. The adapter offers a PCIe x8 3.0 interface as well as 8 SATA / SAS interfaces via 2 miniSAS SFF-8087 ports. The maximum data transfer rate is 6 Gbps. The adapter uses the chipset LSI SAS2308, same as the model LSI 9205-8i. The latest IT mode firmware is installed, and the adapter is universally compatible with all known brands. Full and low profile brackets for installation are included.

  • The host bus adapter serves as a hardware interface for storage devices.
  • Ports: PCIe x8 3.0, 2x miniSAS SFF-8087 ports for up to 8 SATA / SAS drives
  • Chipset: LSI SAS2308
  • The maximum data transfer rate is 6 GB per second.
  • Full and low profile brackets are included.
  • The latest IT mode firmware is installed on the HBA.
  • Perfect for FreeNAS, TrueNAS, Unraid, ZFS, Windows, Linux and other systems.
  • Alternatively labeled as: H220, 9205-8i, 9207-8i, H310, M1015, 9211-8i, 9217-8i, 660088-001, 650933-B21

Specifications

MPN: 650933-B21
Bus type: PCIe x8 3.0
Interface: SFF-8087 and SAS / SATA
Number of ports: 8
Max. data transfer rate: 6 Gbps
RAID levels: IT mode
Bracket height: Full + Low Profile
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
