Dell

Dell Perc HBA330 SATA / SAS HBA Controller IT-Mode 12Gb PCIe 3.0 x8 ZFS TrueNAS

Dell Perc HBA330 SATA / SAS HBA Controller IT-Mode 12Gb PCIe 3.0 x8 ZFS TrueNAS

$79.90 USD
$79.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

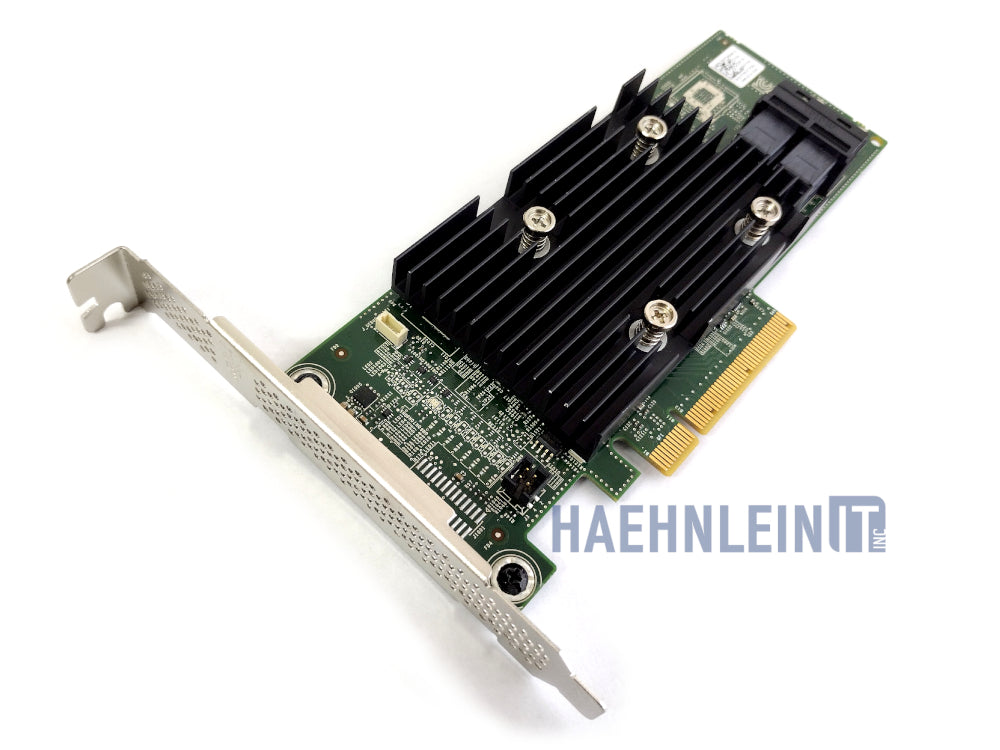

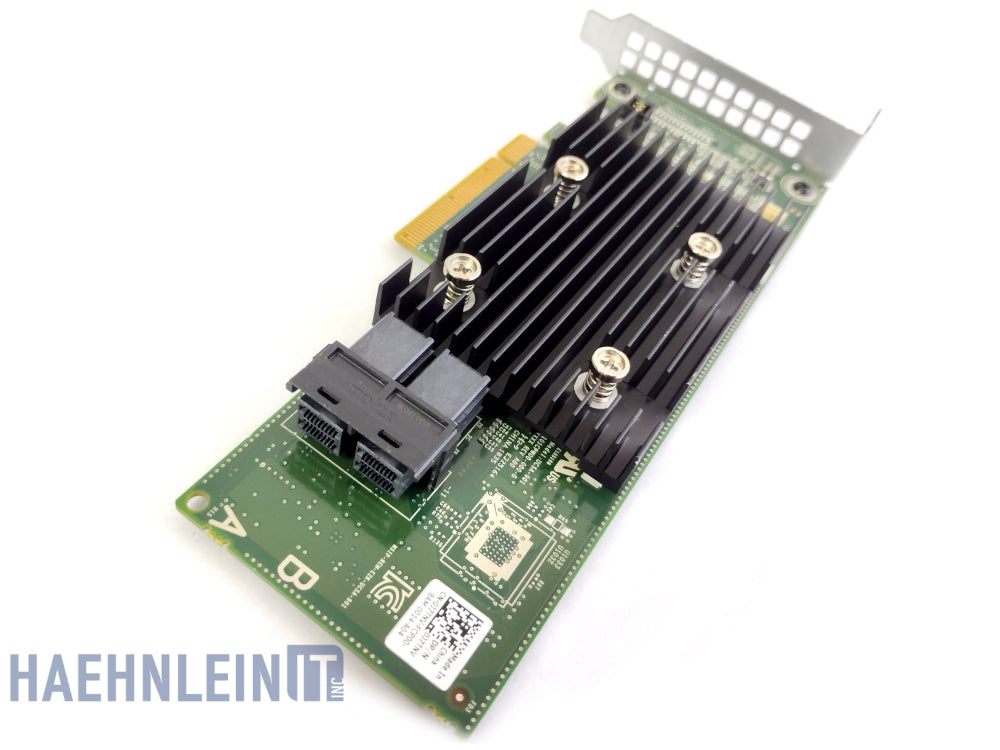

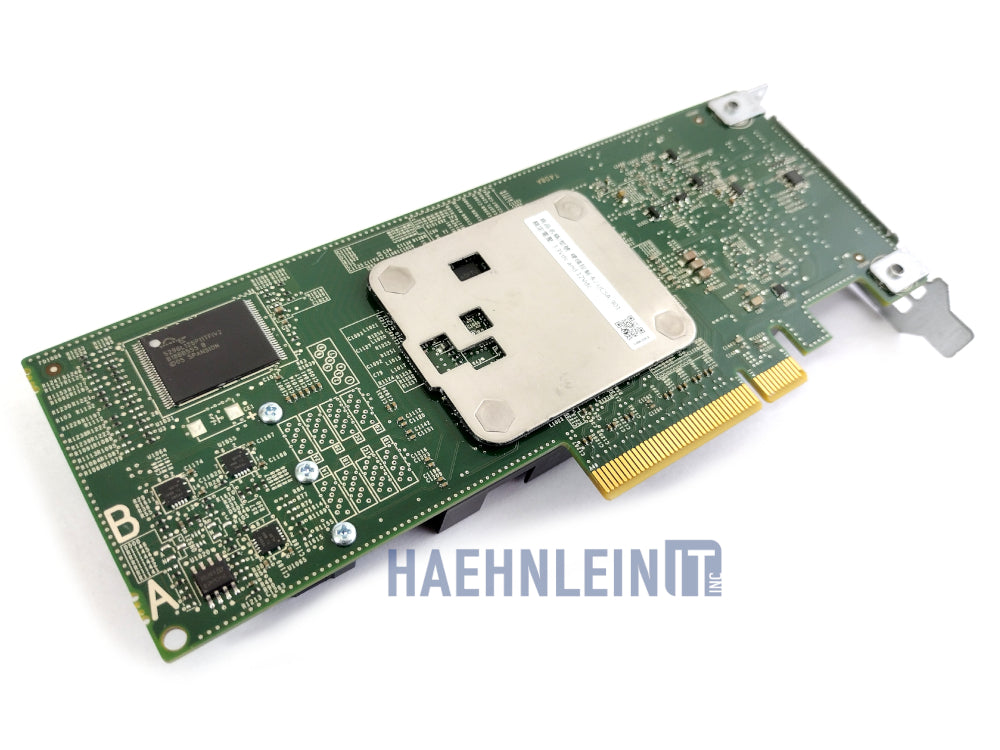

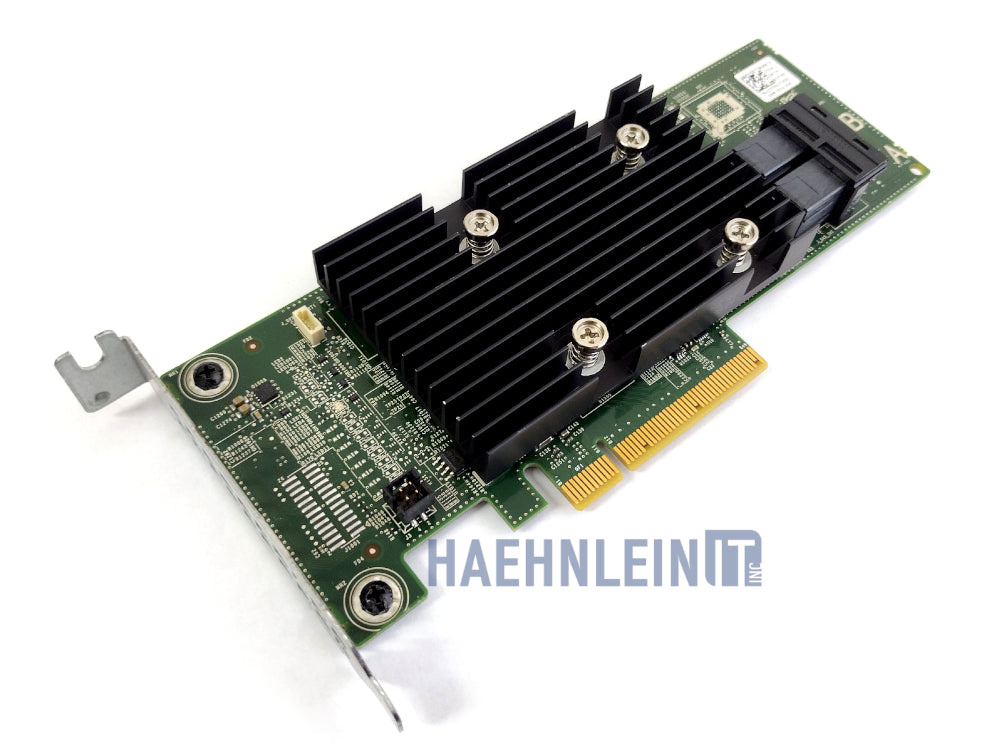

The Dell HBA330 is a professional HBA for servers and workstations that allows you to increase the number of connected hard drives. Manufacturer of the component is Avago, the chipset is LSI SAS3008. The host bus adapter offers a PCIe x8 3.0 Port. Via two internal miniSAS ports, you can connect up to 8 drives. The adapter is universally compatible with all known brands. It's flashed with Dell IT mode firmware. The HBA can be used for Unraid, FreeNAS, TrueNAS, Windows 10 and other operating systems. Full and low profile brackets are included.
  • The Dell host bus adapter functions as an interface for storage devices.
  • Ports: 1x PCIe x8 3.0, 2x miniSAS SFF-8643 for up to 8 SATA / SAS drives
  • The maximum data transfer rate is 12 Gbps.

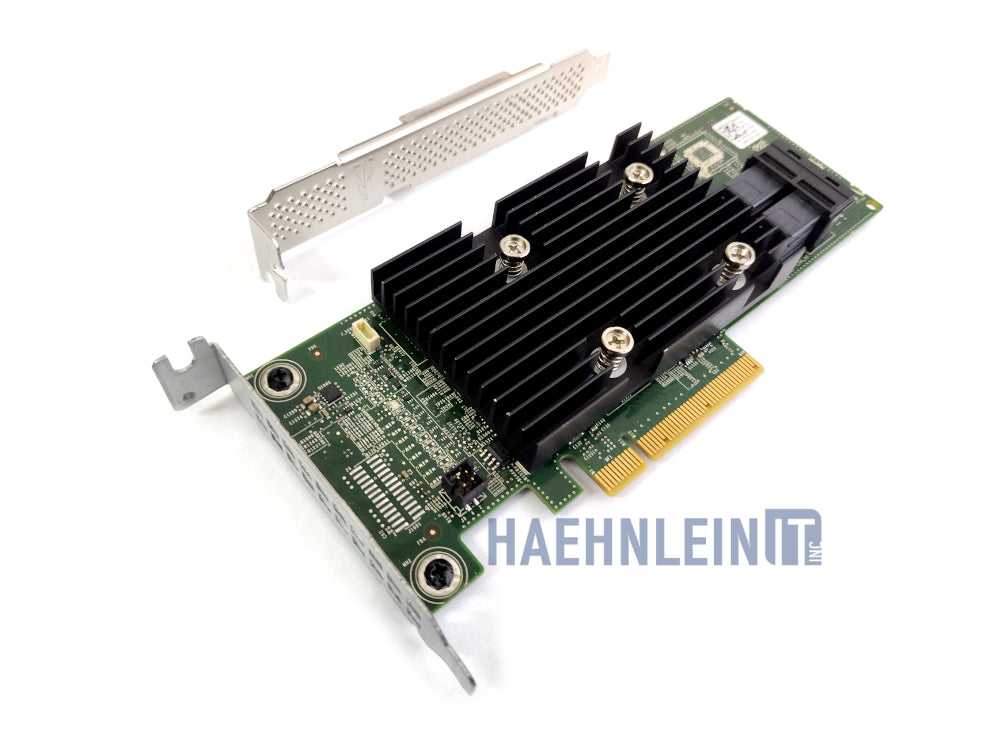

  • Full and low profile brackets for installation are included.
  • IT mode firmware is installed.
  • Alternatively labeled as: HBA330, HBA330+, J7TNV, 0J7TNV, 9300-8i, 9311-8i

Specifications

MPN: J7TNV
Bus type: PCIe x8 3.0
Interface: SFF-8643 and SAS / SATA
Number of ports: 8
Max. data transfer rate: 12 Gbps
RAID levels: IT mode
Bracket height: Full + Low Profile
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
