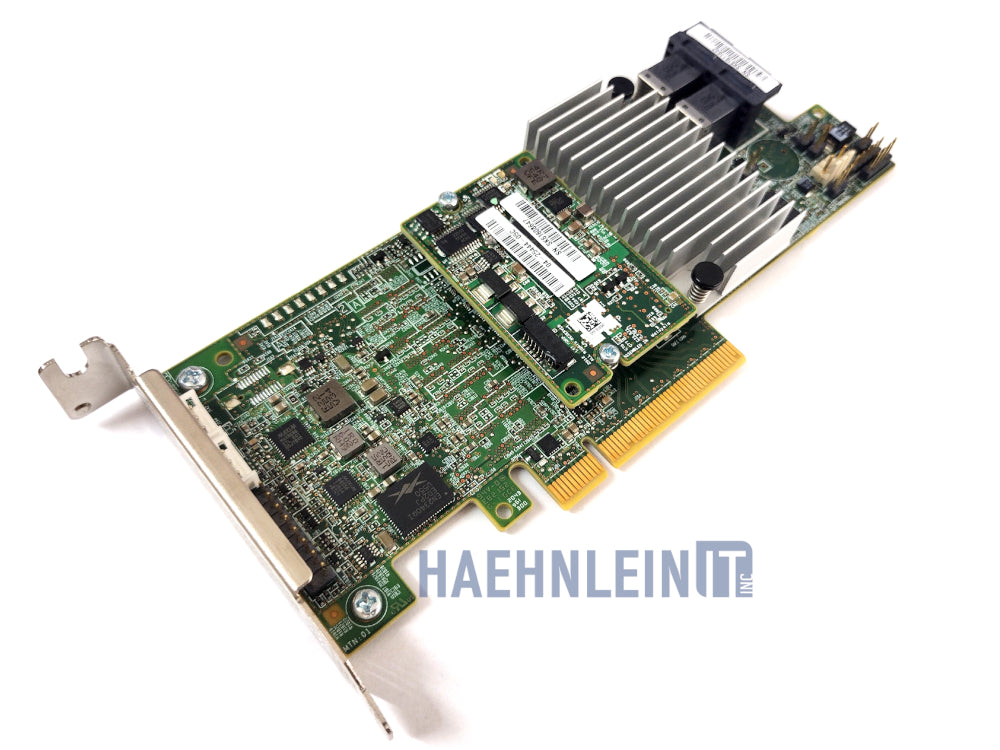

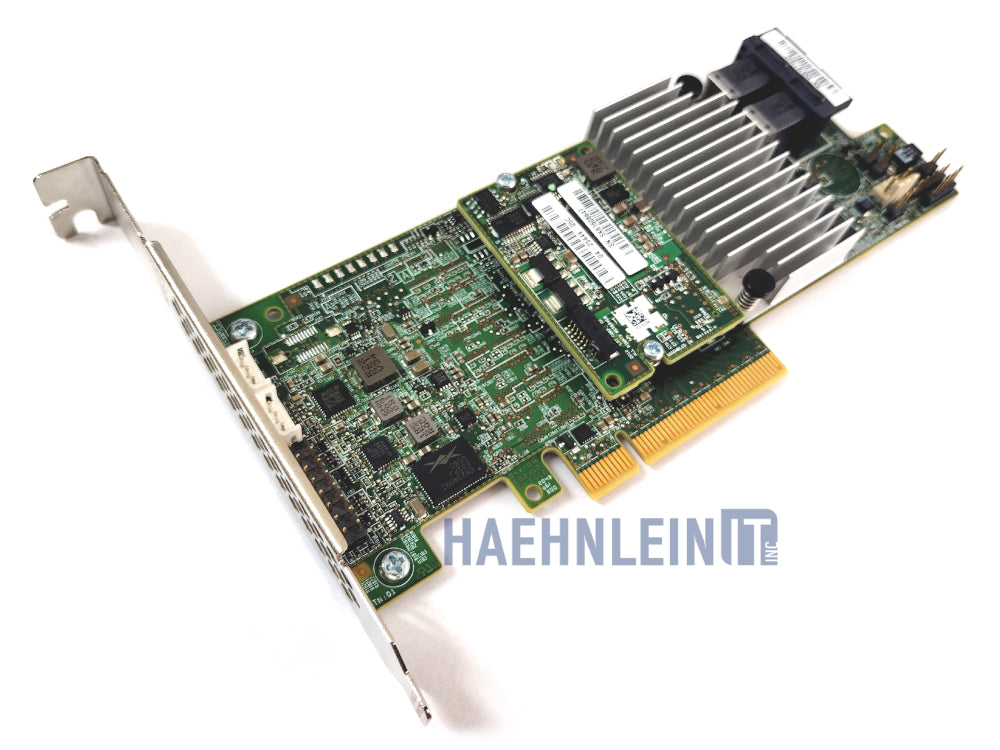

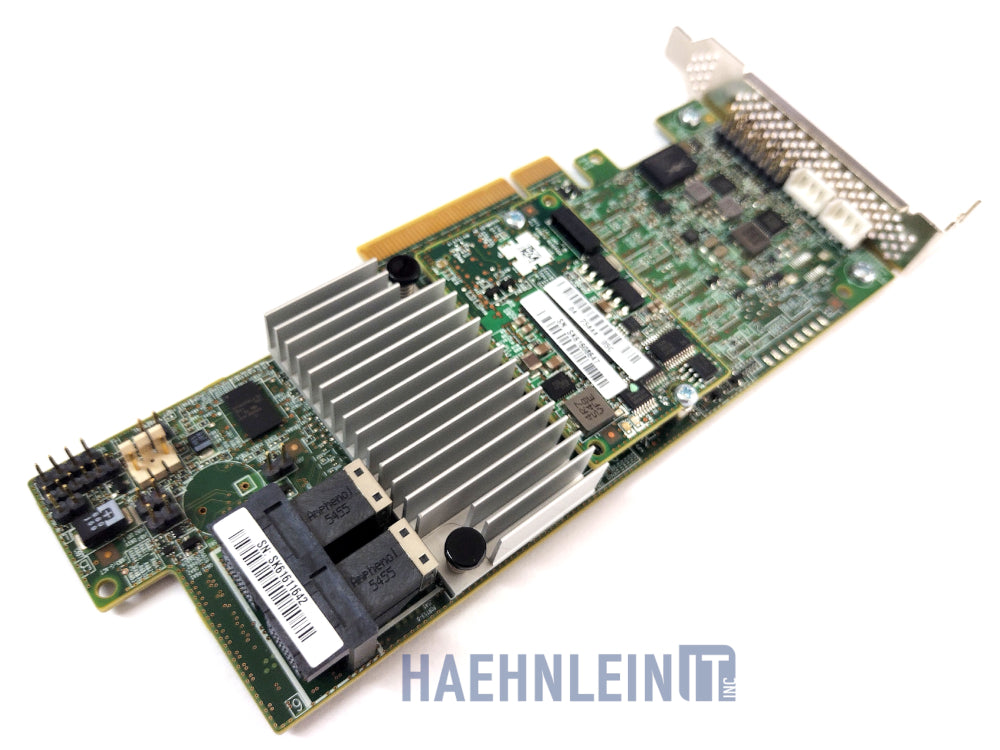

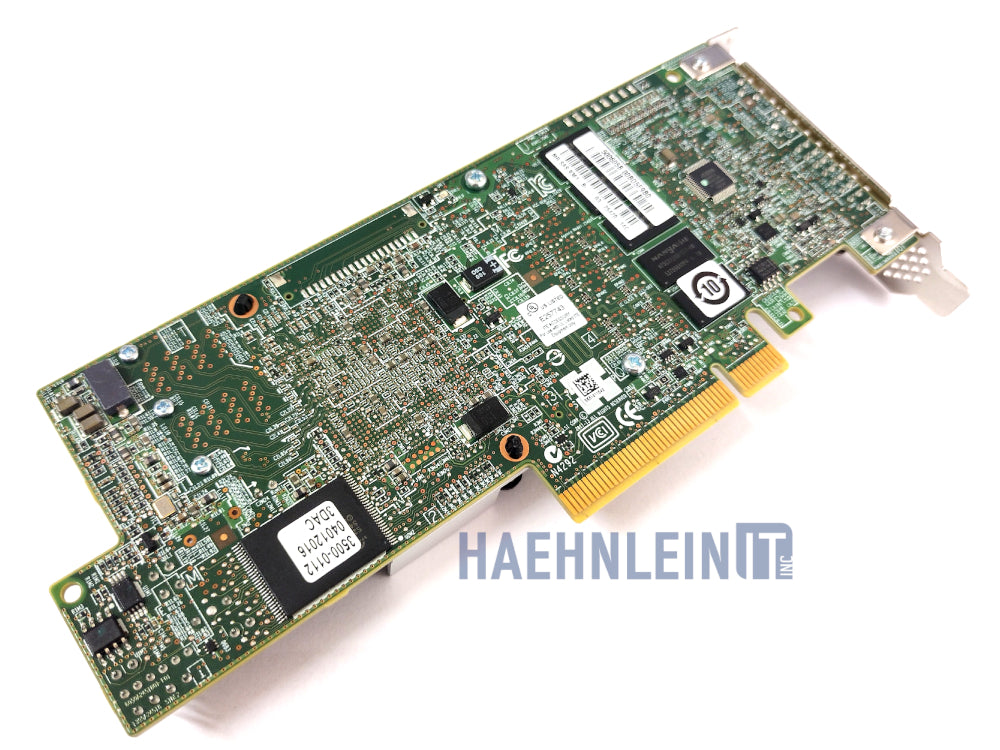

The LSI / Broadcom MegaRAID SAS 9361-8i is a professional SATA / SAS RAID controller for servers and workstations that lets you increase the number of connected hard drives. The RAID controller coordinates them and groups them together to manage read and write access.
The component’s manufacturer for the brand Broadcom (previously LSI) is Avago. The controller offers a PCIe x8 3.0 port as well as 8 internal ports for SATA or SAS drives via 2 miniSAS SFF-8643 ports. It’s universally compatible with all known brands. The scope of delivery includes an LSI cache vault LSICVM02 / supercap as well as full and low profile brackets.
The RAID controller functions as a hardware intersection for storage devices and their coordination.
Ports: PCIe x8 3.0, 2 miniSAS SFF-8643 ports for a maximum of 8 SATA / SAS drives

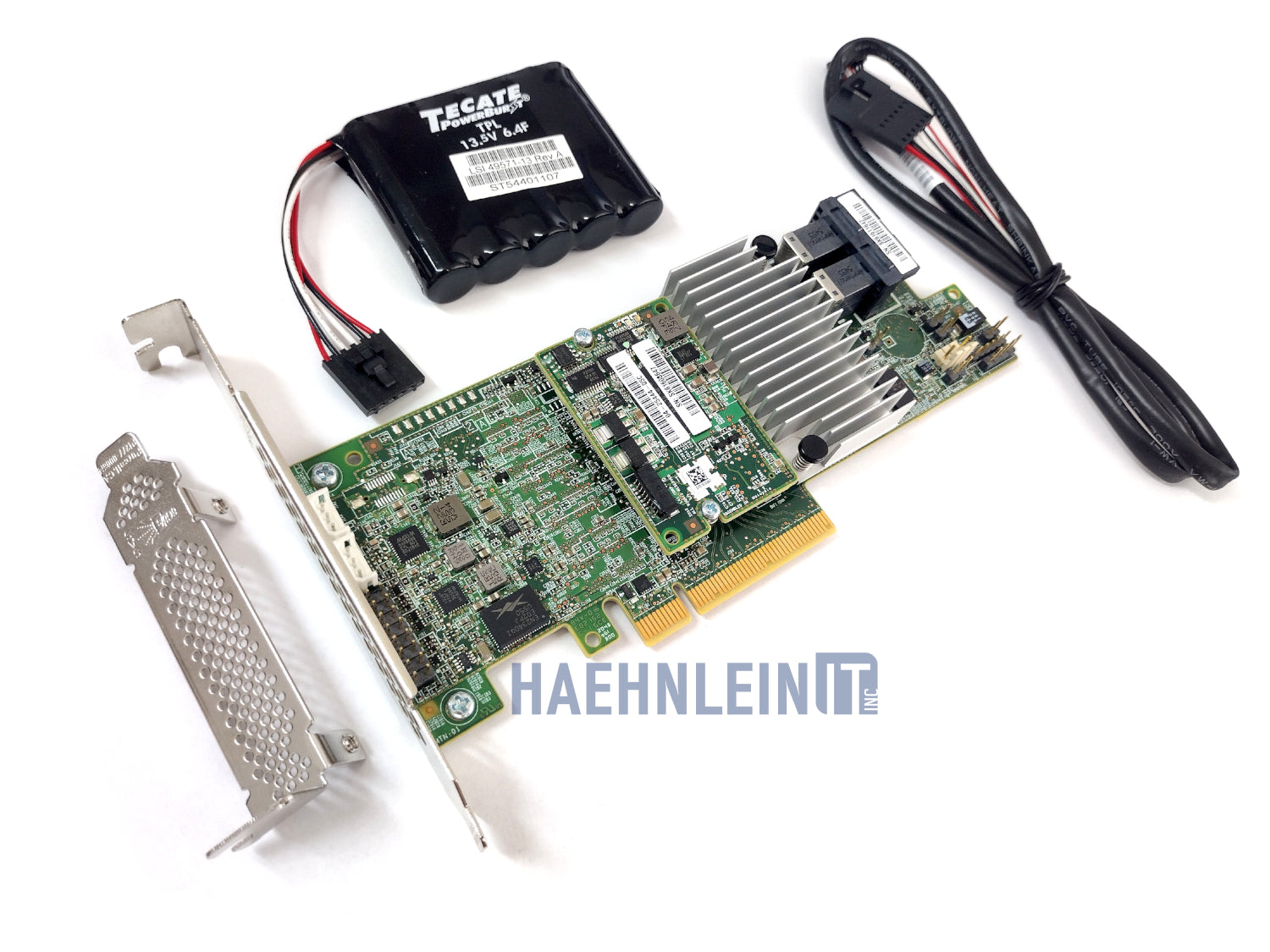

Including LSI cache vault LSICVM02 / supercap for reliable data storage
RAID levels: 0, 1, 5, 6, 10, 50, 60
The maximum data transfer rate is 12 Gbit/s SAS or 6 Gbit/s SATA
Full and low profile brackets for installation are included.
The most recent firmware is installed on the controller.
