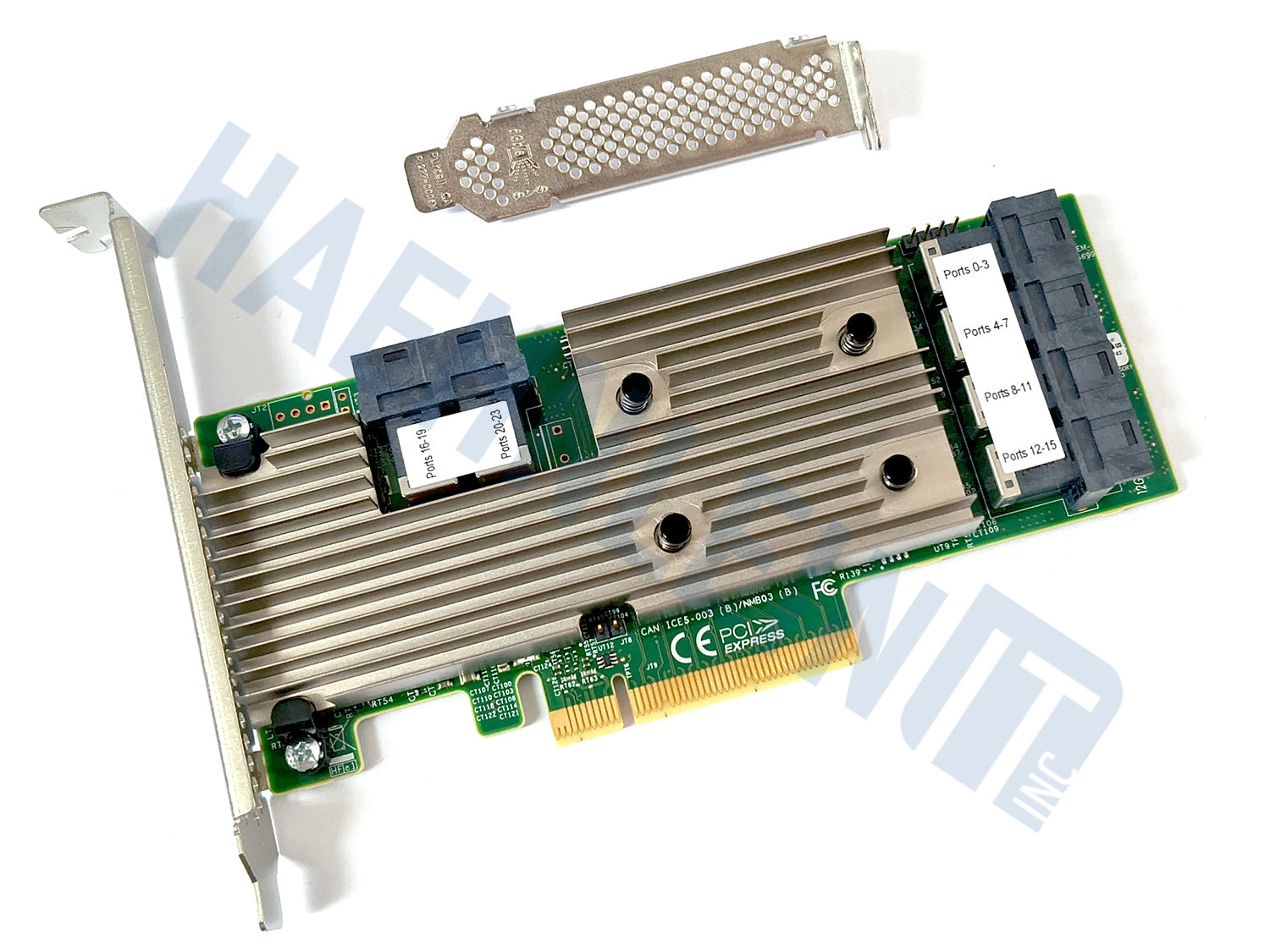

• A Broadcom 9305-24i PCIe card with a large silver heatsink, 6 black SAS ports, green circuit board, and gold PCI Express connector, shown with a full height and a low profile slot bracket on a white background with a faint HaehnleinIT Inc. watermark.

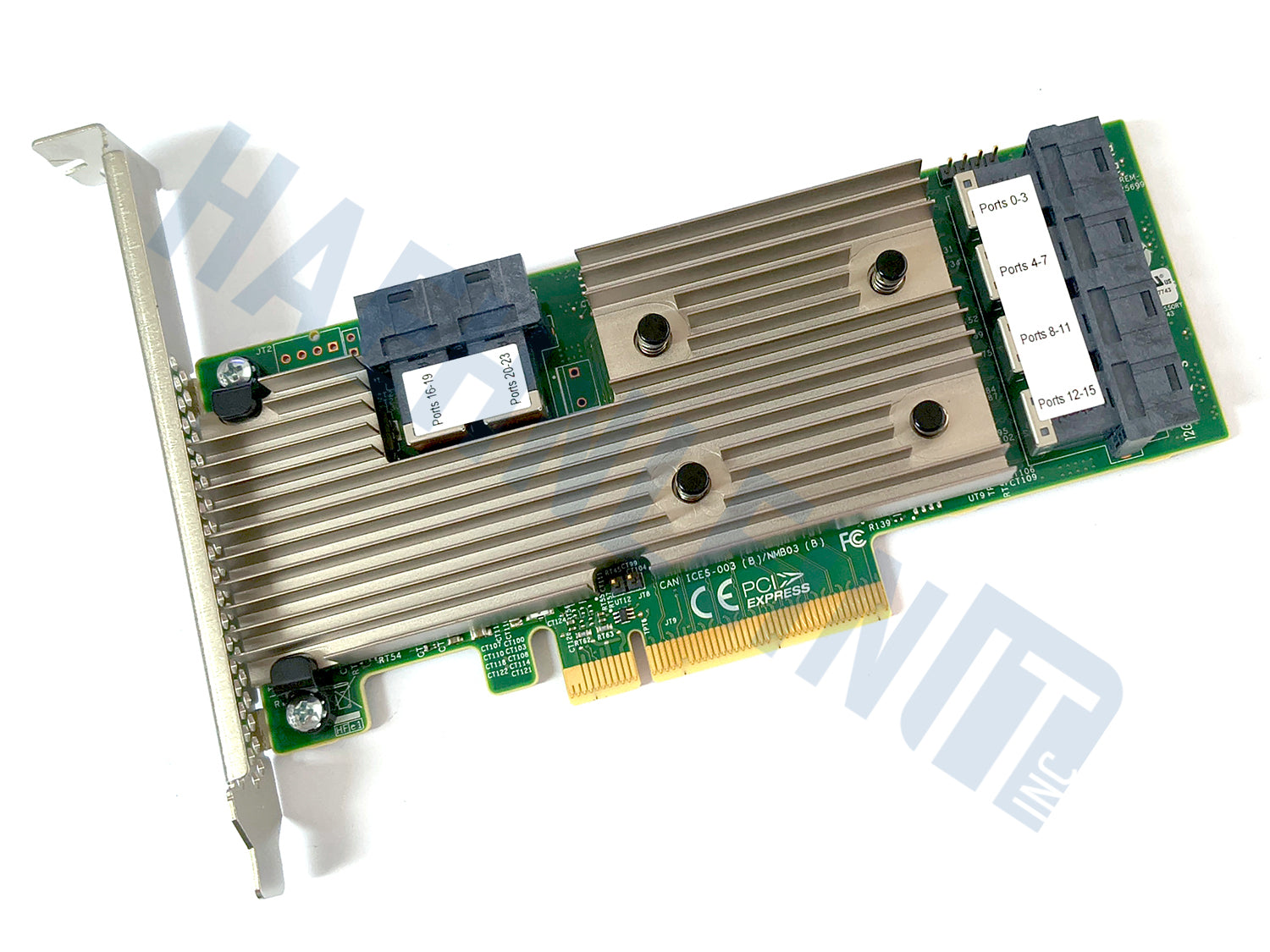

  • A Broadcom 9305-24i PCIe card with a large silver heatsink, 6 black SAS ports, green circuit board, and gold PCI Express connector, shown with a full height slot bracket on a white background with a faint HaehnleinIT Inc. watermark.

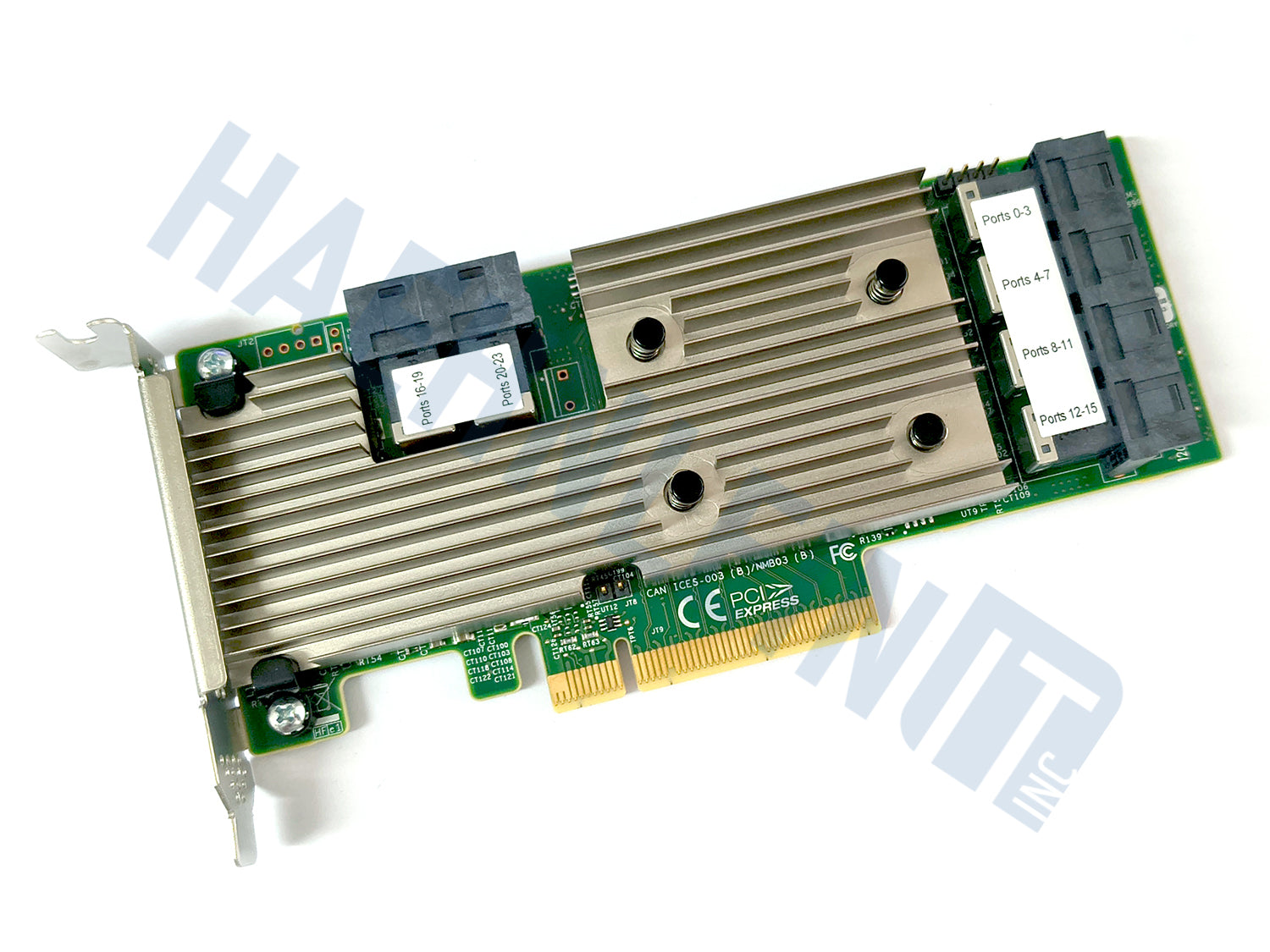

  • A Broadcom 9305-24i PCIe card with a large silver heatsink, 6 black SAS ports, green circuit board, and gold PCI Express connector, shown with a low profile slot bracket on a white background with a faint HaehnleinIT Inc. watermark.

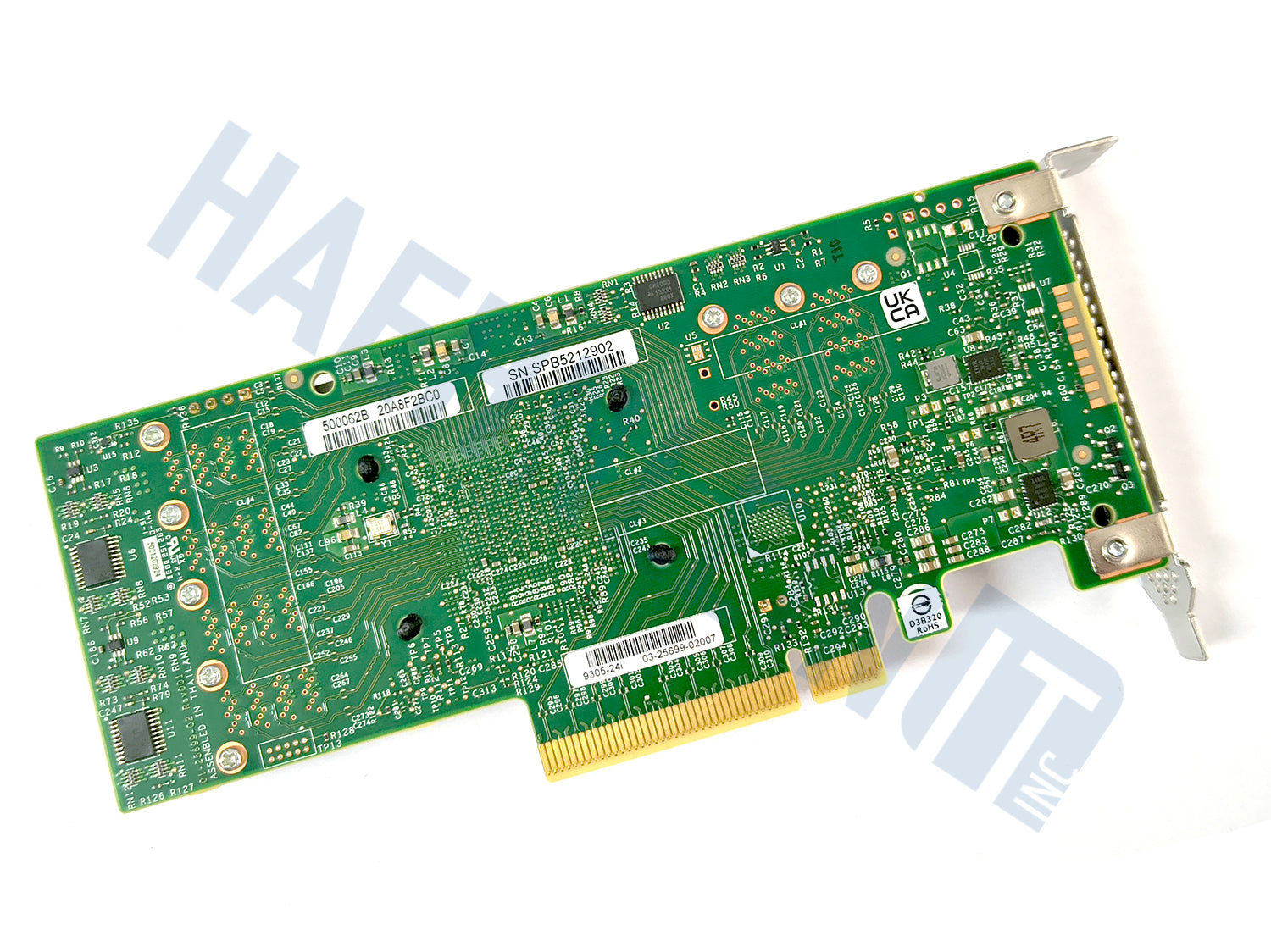

  • The backside of a Broadcom 9305-24i PCIe card: A green circuit board with various stickers with barcodes, and a gold PCI Express connector, shown with a low profile slot bracket on a white background with a faint HaehnleinIT Inc. watermark.

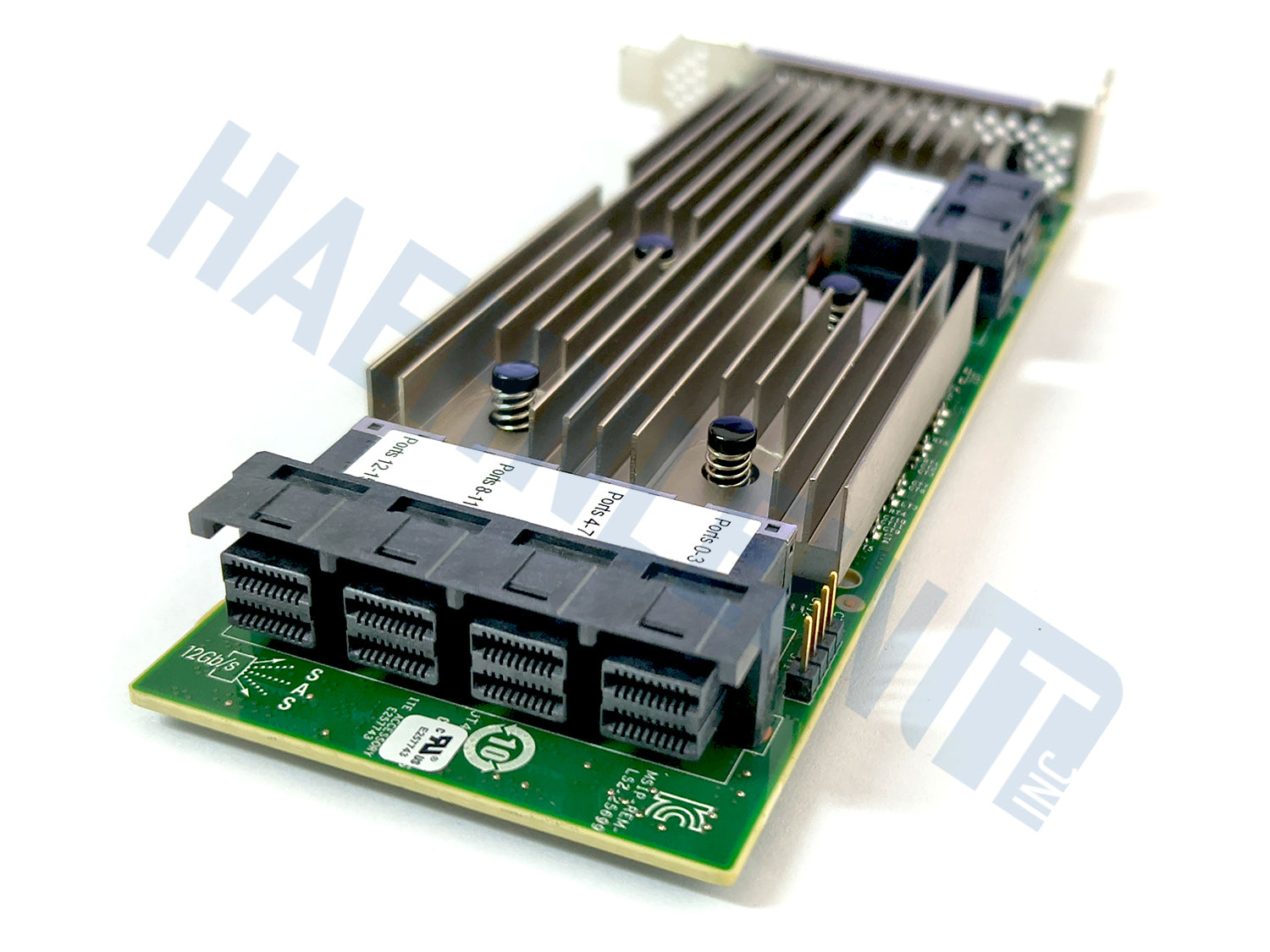

  • A Broadcom 9305-24i PCIe card with a large silver heatsink, green circuit board, close-up of 4 internal miniSAS ports at the back of the card, shown on a white background with a faint HaehnleinIT Inc. watermark.

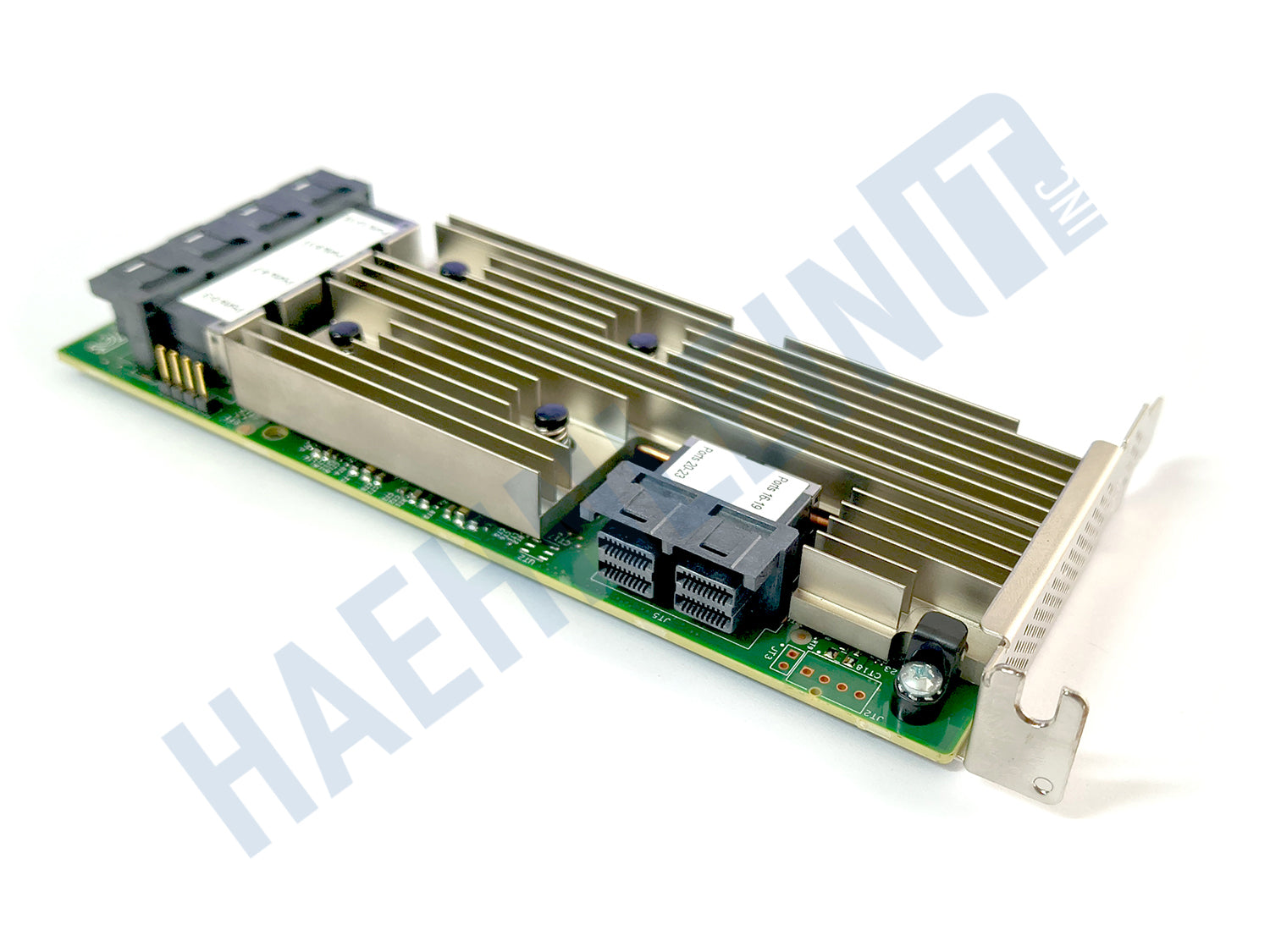

  • A Broadcom 9305-24i PCIe card with a large silver heatsink, green circuit board, close-up of 2 internal miniSAS ports at the side of the card, shown on a white background with a faint HaehnleinIT Inc. watermark.
1 6

Broadcom

Broadcom LSI 9305-24i SATA / SAS HBA Controller 12Gbps IT-Mode 24port ZFS NAS

Broadcom LSI 9305-24i SATA / SAS HBA Controller 12Gbps IT-Mode 24port ZFS NAS

$269.90 USD
$269.90 USD
Sale Sold out
Shipping calculated at checkout.
Condition

The host bus adapter 9305-24i by Broadcom (formerly LSI) lets you increase the number of hard drives connected to your server or workstation. The HBA has a PCIe x8 3.0 interface as well as 24 internal ports for SATA or SAS drives via 6 miniSAS SFF-8643 ports. The maximum data transfer rate is 12 GBps. It is universally compatible with all known brands. The HBA is flashed to IT mode firmware. Delivery includes full and low profile brackets for installation.

  • The Broadcom host bus adapter serves as a hardware interface for storage devices.
  • Ports: PCIe x8 3.0, 6 miniSAS SFF-8643 Ports for up to 24 internal SATA / SAS drives
  • The maximum data transfer rate is 12 Gbps.
  • Latest IT mode firmware is installed.
  • Full and low profile brackets are included.
  • Alternatively labeled as: 9305-24i, 05-25699-00

Specifications

MPN: 05-25699-00
Bus type: PCIe x8 3.0
Interface: SFF-8643 and SAS / SATA
Number of ports: 24
Max. data transfer rate: 12 Gbps
RAID levels: IT mode
Bracket height: Full + Low Profile
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
