Broadcom 9207-8i SAS2308 6G SATA SAS HBA PCIe x8 Avago LSI00301 ZFS IT Mode
Broadcom 9207-8i SAS2308 6G SATA SAS HBA PCIe x8 Avago LSI00301 ZFS IT Mode
Couldn't load pickup availability

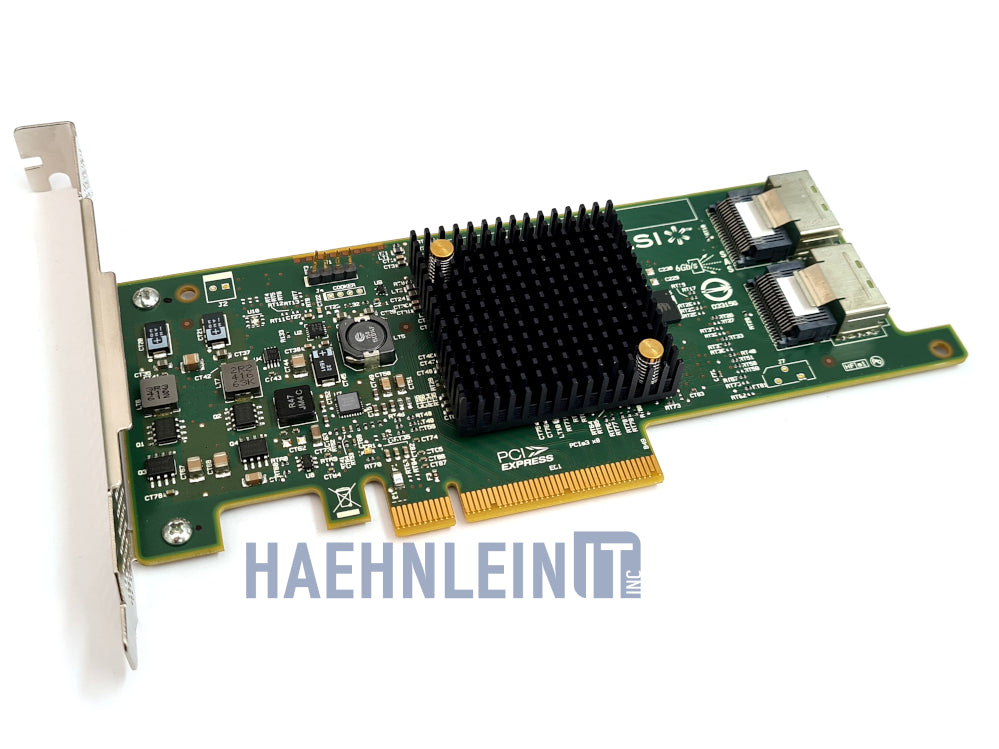

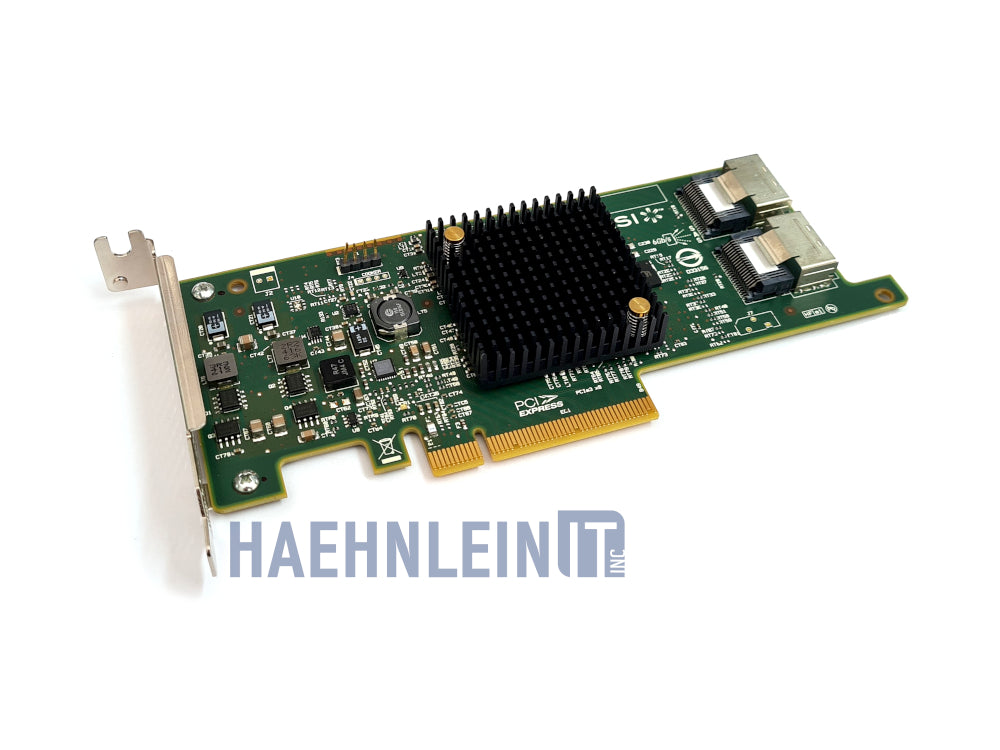

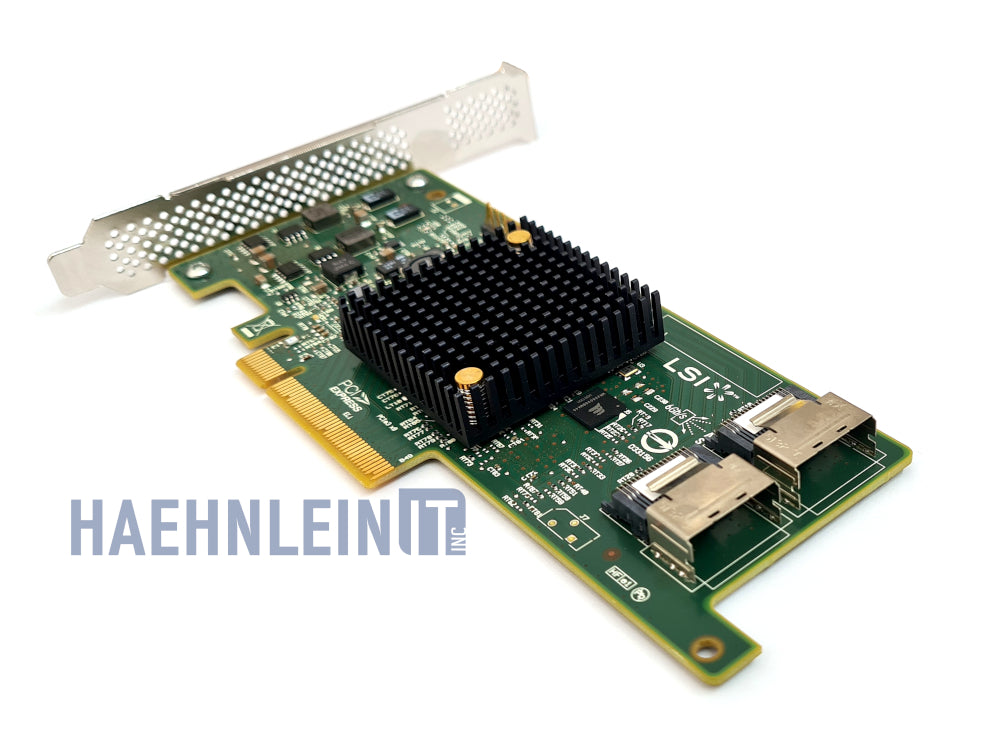

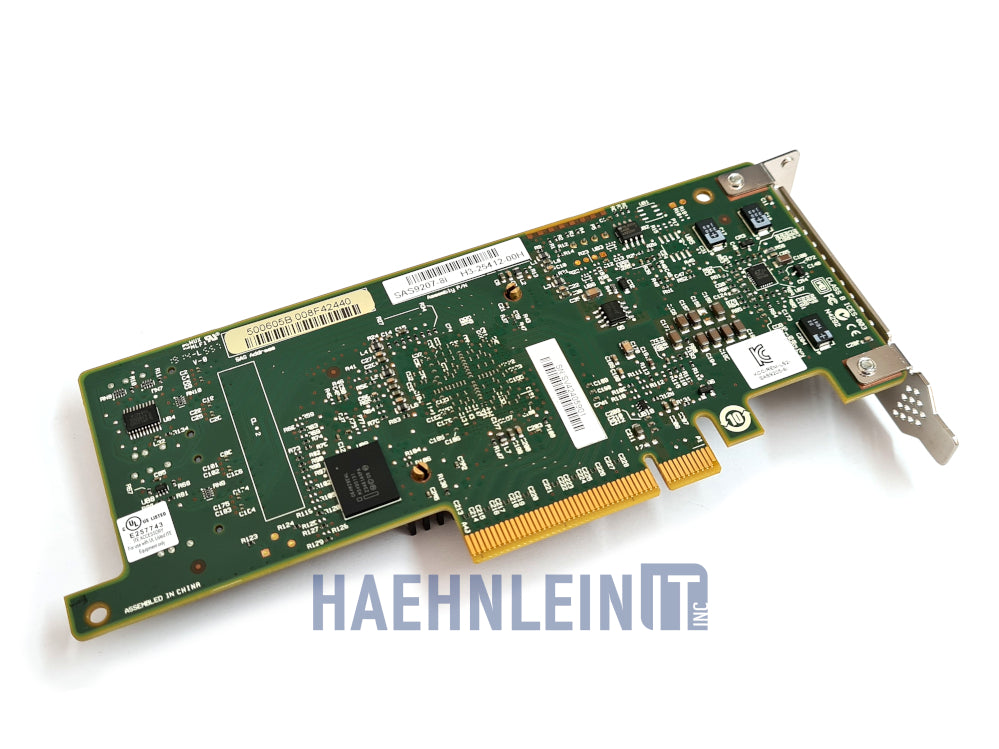

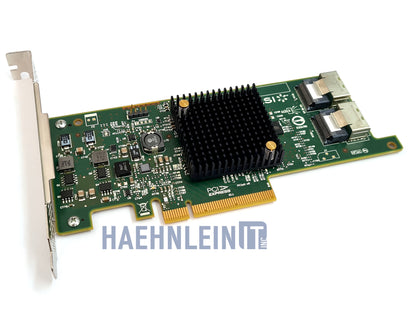

The host bus adapter 9207-8i by LSI / Broadcom lets you increase the number of connected hard drives. The component is identical to the version by Avago. The HBA offers a PCIe x8 3.0 interface as well as 8 internal ports for SATA or SAS drives via 2 miniSAS SFF-8087 ports. The maximum data transfer rate is 6 GBps. The adapter is universally compatible with all known brands and supports 4k sector drives. It is flashed to the latest IT mode firmware P20.07. Full and low profile brackets are included.
- The LSI host bus adapter serves as an interface for storage devices
- Ports: 1x PCIe x8 3.0, 2x miniSAS SFF-8087 for up to 8 SATA / SAS drives
- The maximum data transfer rate is 6 Gbps
- The latest IT mode firmware is installed

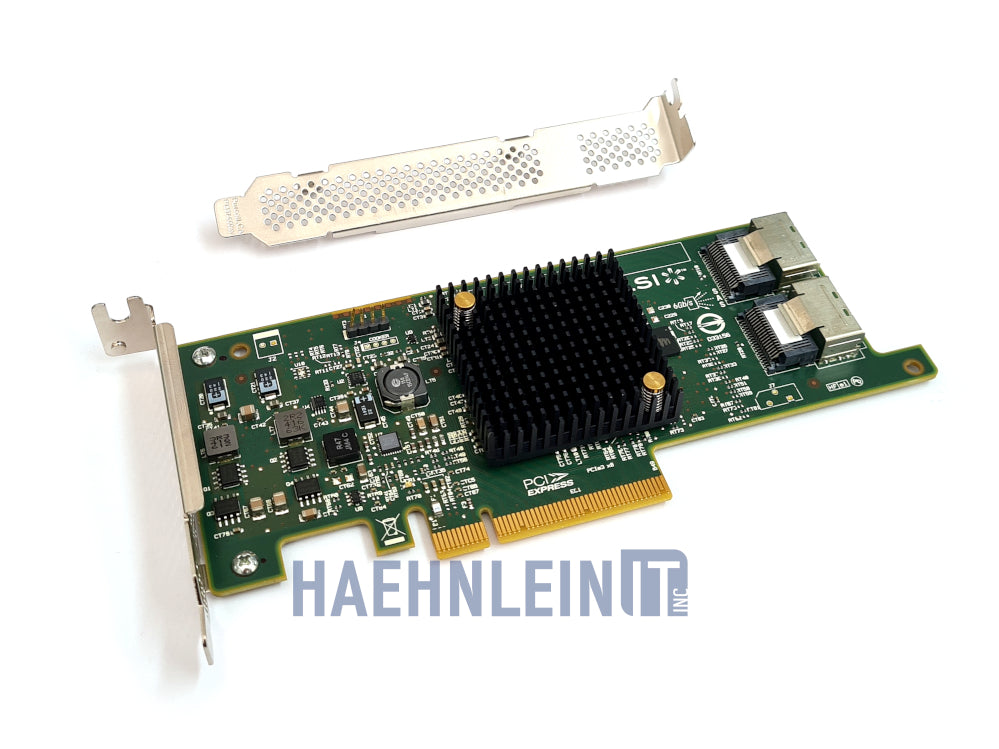

- Low and full profile brackets for installation are included
- Chipset: LSI SAS2308
- The controller supports 4k sector drives
- Alternatively labeled as: LSI SAS2308, 9207-8i, 9217-8i, LSI00301
Specifications
Share

Collapsible content
Safety Precautions
ATTENTION:
Before changing your system configuration, always back up your data to prevent data loss.
Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.
Before installing components, always consult the manufacturer’s manual.
![]() |
CAUTION: Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system. During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns. Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them. |
