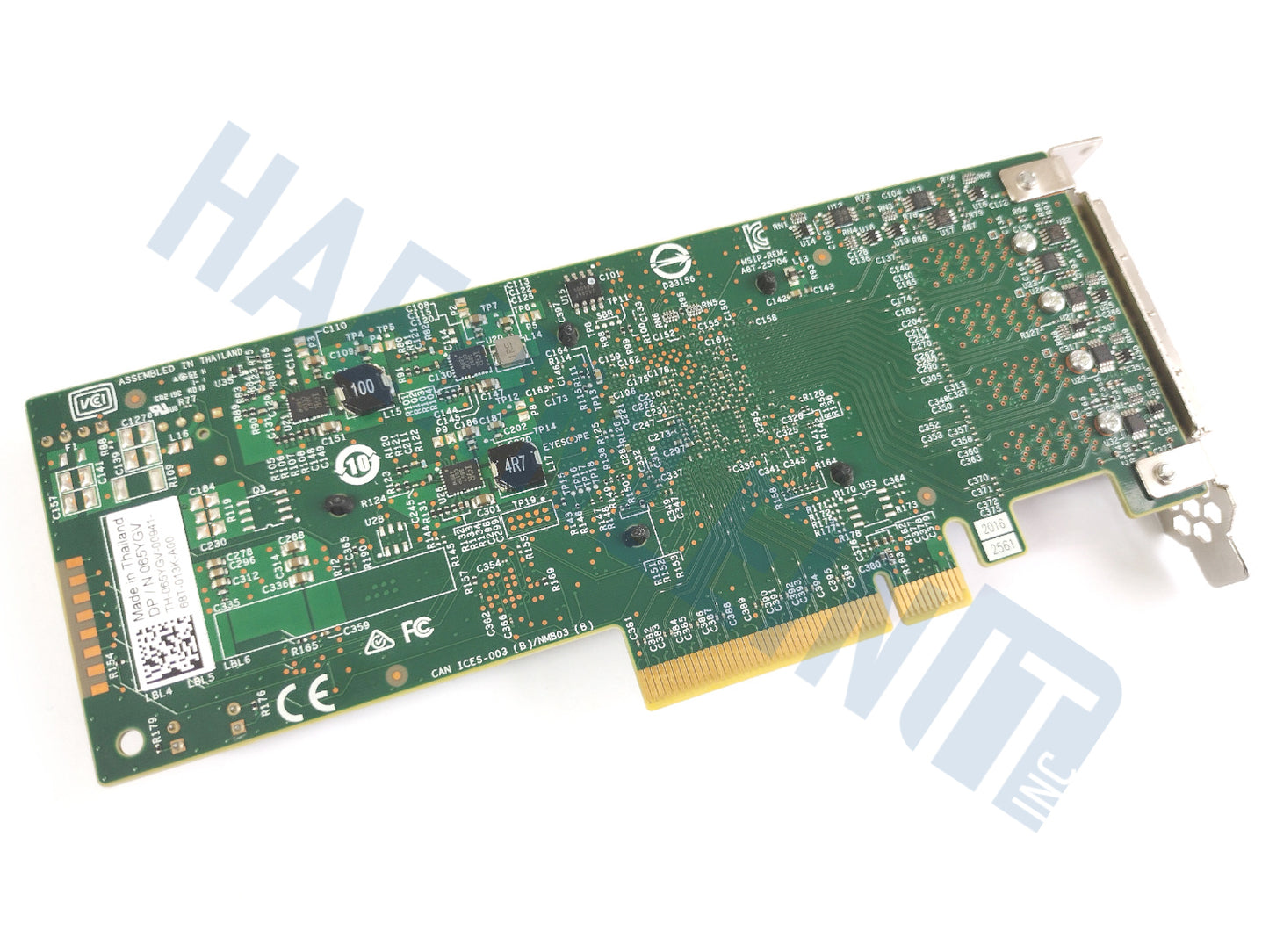

Avago Broadcom LSI 9305-16e SATA / SAS HBA Controller 12Gbps IT-Mode SFF-8644
Avago Broadcom LSI 9305-16e SATA / SAS HBA Controller 12Gbps IT-Mode SFF-8644
Couldn't load pickup availability

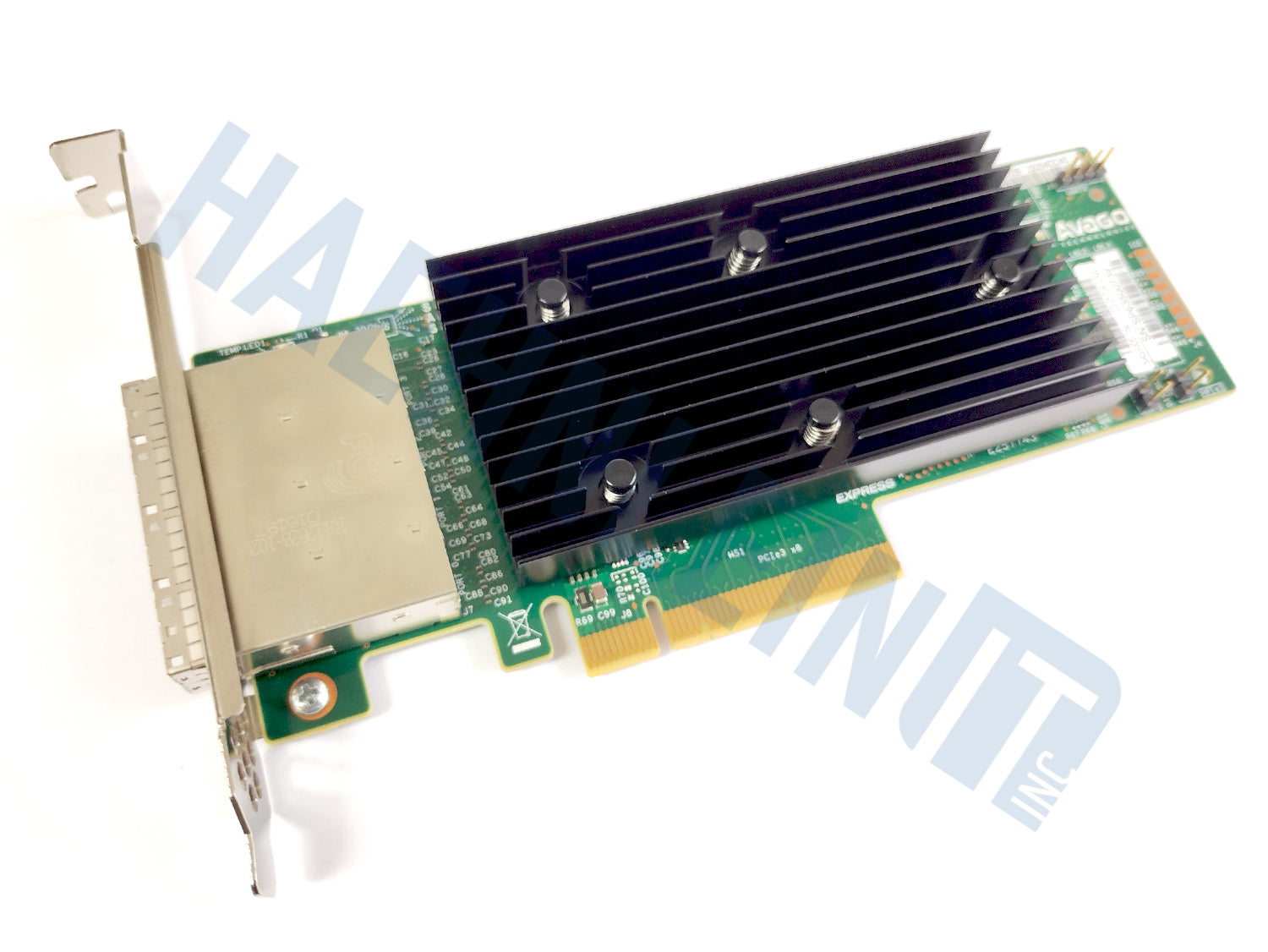

The host bus adapter 9300-8e by Avago (manufacturer for Broadcom and LSI) gives you the opportunity, to increase the number of connected hard drives. The HBA has a PCIe x8 3.0 port as well as 4 external miniSAS Ports for up to 16 SATA or SAS drives. The controller is compatible with all known brands and the latest IT mode firmware P16.00.12 is already installed. Full and low profile brackets are included.

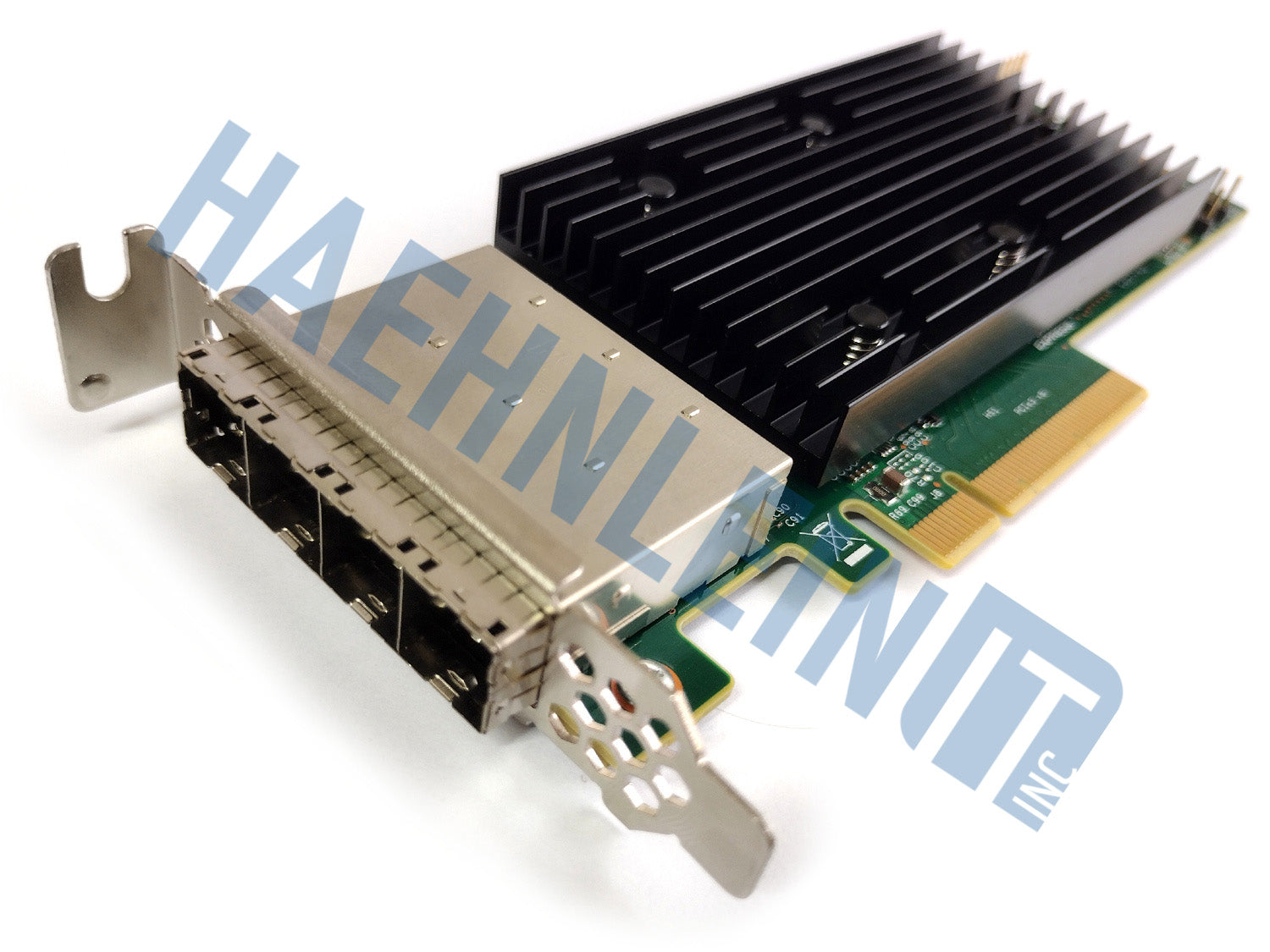

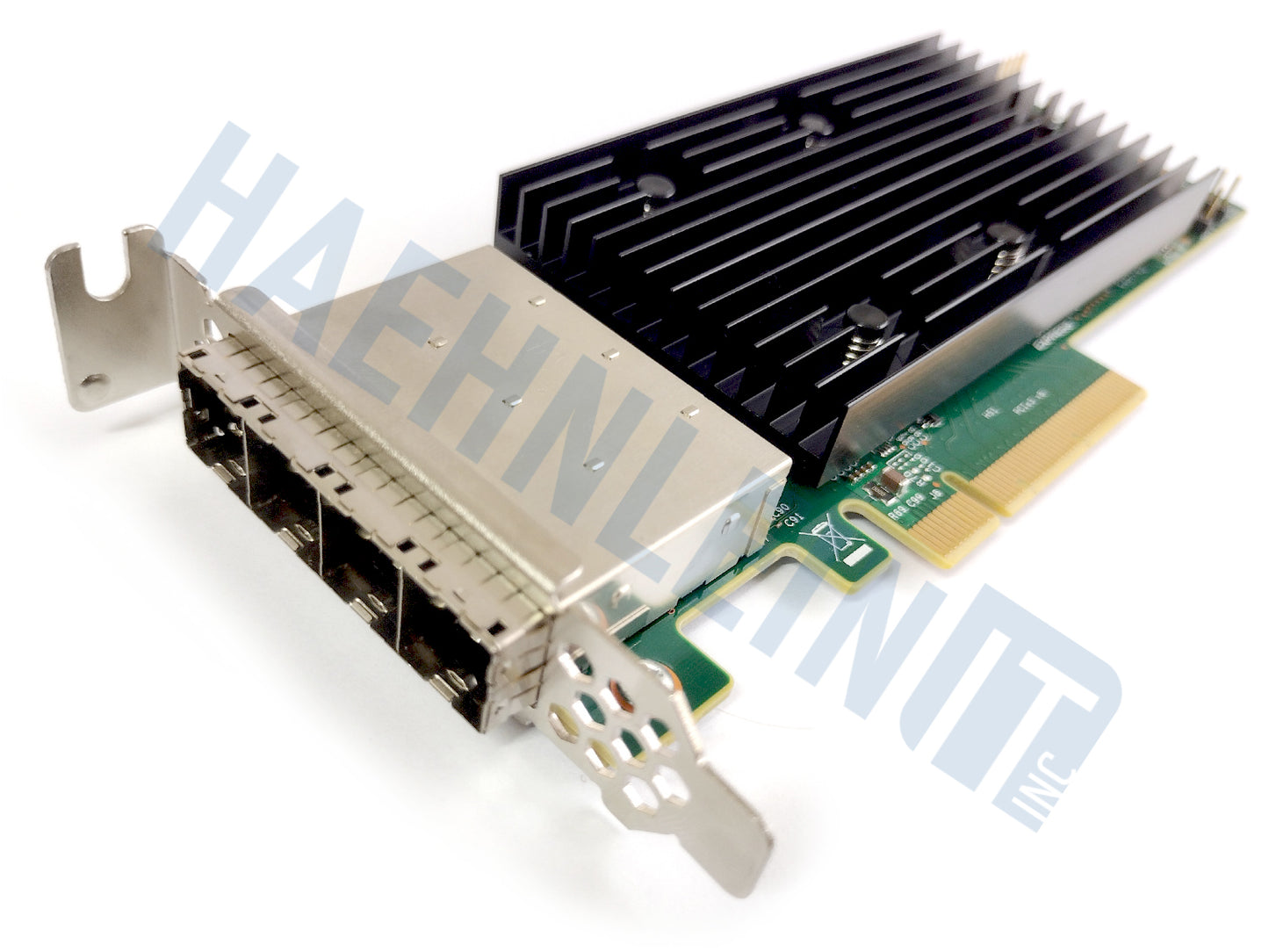

- Ports: PCIe 8x 3.0, 4x miniSAS SFF-8644 for up to 16 SATA / SAS drives external
- The maximum data transfer rate is 12Gbps.

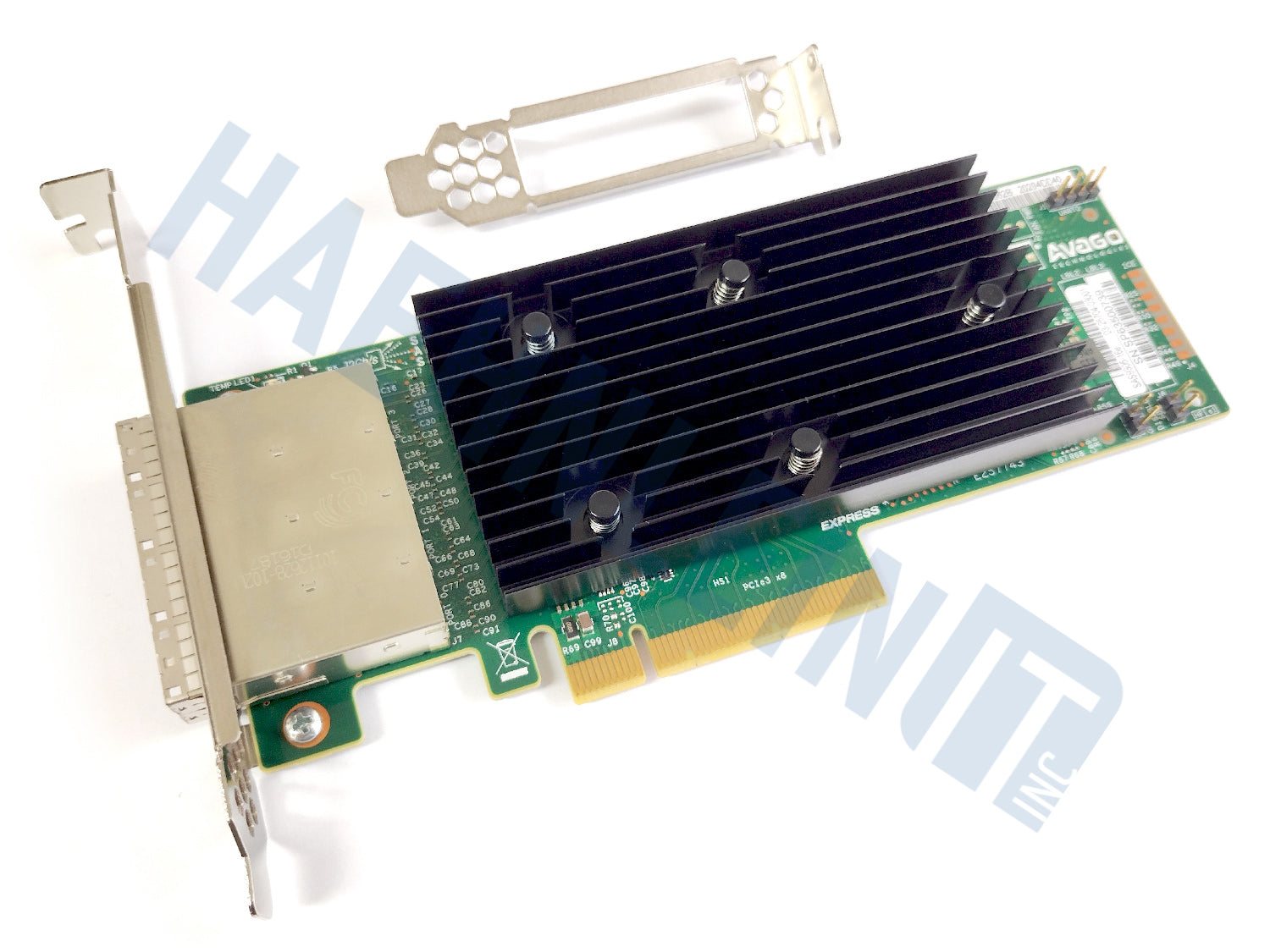

- Full & low profile brackets for installation are included.
- Latest IT mode firmware P16.00.12 is installed.
- Alternatively labeled as: 9305-16e, 05-25704-00
Specifications
Share

Collapsible content
Safety Precautions
ATTENTION:
Before changing your system configuration, always back up your data to prevent data loss.
Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.
Before installing components, always consult the manufacturer’s manual.
![]() |
CAUTION: Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system. During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns. Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them. |
