Broadcom LSI 9305-16i SATA / SAS HBA Controller RAID 12Gbps PCIe x8 + 4 cables

Broadcom LSI 9305-16i SATA / SAS HBA Controller RAID 12Gbps PCIe x8 + 4 cables

$199.90 USD
$199.90 USD
Sale Sold out
Shipping calculated at checkout.

This listing is for a bundle with one professional SATA / SAS LSI / Broadcom 9305-16i host bus adapter as well as four matching miniSAS SFF-8643 to 4xSATA breakout cables (length: 3.2ft) that allow you to connect up to 16 drives.

The host bus adapter 9305-16i by Broadcom (formerly LSI) lets you increase the number of hard drives connected to your server or workstation. The HBA has a PCIe x8 3.0 interface as well as 16 internal ports for SATA or SAS drives via 4 miniSAS SFF-8643 ports. The maximum data transfer rate is 12 GBps. It is universally compatible with all known. The HBA is flashed to the latest IT mode firmware P16.00.12. Delivery includes full and low profile brackets for installation.

  • The Broadcom host bus adapter serves as a hardware interface for storage devices.
  • Ports: PCIe x8 3.0, 4 miniSAS SFF-8643 Ports for up to 16 internal SATA / SAS drives
  • The maximum data transfer rate is 12 Gbps.
  • Latest IT mode firmware P16.00.12 is installed.
  • Full and low profile brackets are included.

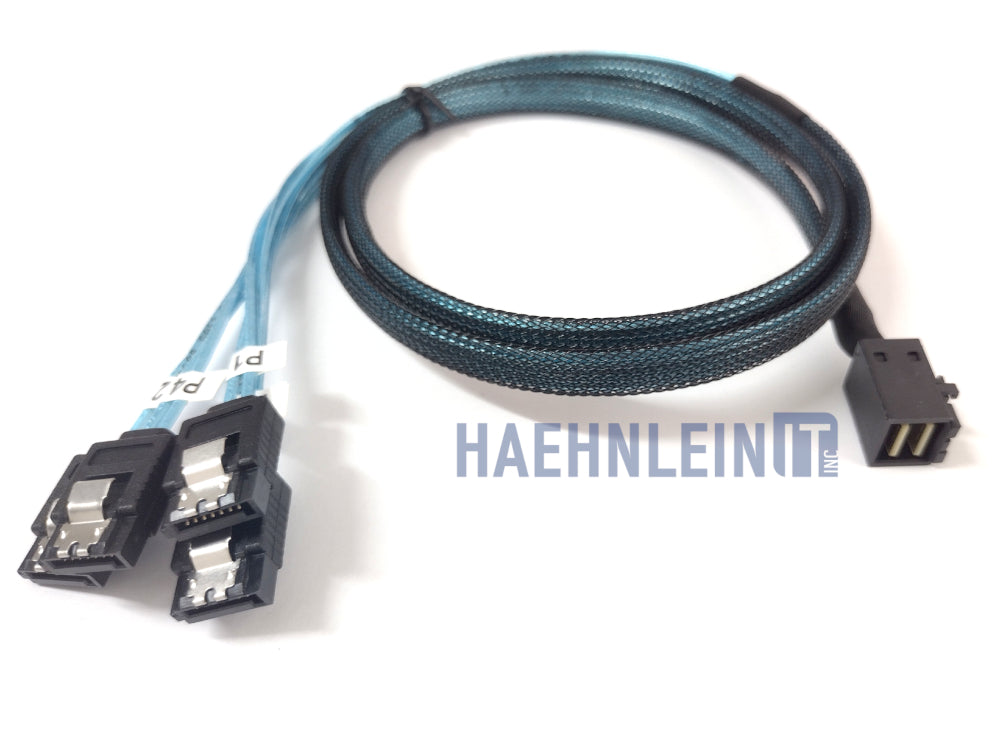

  • The bundle includes 4 matching miniSAS SFF-8643 to 4xSATA breakout cables.
  • Alternatively labeled as: 9305-16i, 05-25703-00

Condition: Used, tested, in full working order

Included in delivery: Broadcom 9305-16i HBA, full and low profile brackets, 4 miniSAS to 4xSATA breakout cables

Specifications

MPN: 05-25703-00
Bus type: PCIe x8 3.0
Interface: SAS / SATA and SFF-8643
Number of ports: 16
Max. data transfer rate: 12 Gbps
Protocol: SATA
RAID levels: IT mode
Bracket height: Full + Low Profile
Included accessories: Direct attach cable(s)
View full details

Safety Precautions

ATTENTION:

Before changing your system configuration, always back up your data to prevent data loss.

Hardware should only be handled by qualified technicians in an ESD safe environment with ESD safe tools.

Before installing components, always consult the manufacturer’s manual.

CAUTION:

Always turn off the power to your system and remove the AC power cord before installing or removing hardware to avoid experiencing electrical shock or damaging the system.

During operation, heat sinks can heat up significantly. Do not touch them immediately after turning off the power. Leave sufficient time for cooling off before touching them to avoid burns.

Server systems require sufficient ventilation, as provided by a rack case. Insufficient ventilation can cause overheating of components and potentially damage them.
