Supermicro X10SDV-4C-TLN2F motherboard Xeon D-1521 PCIe x16 10Gb m.2 IPMI DDR4

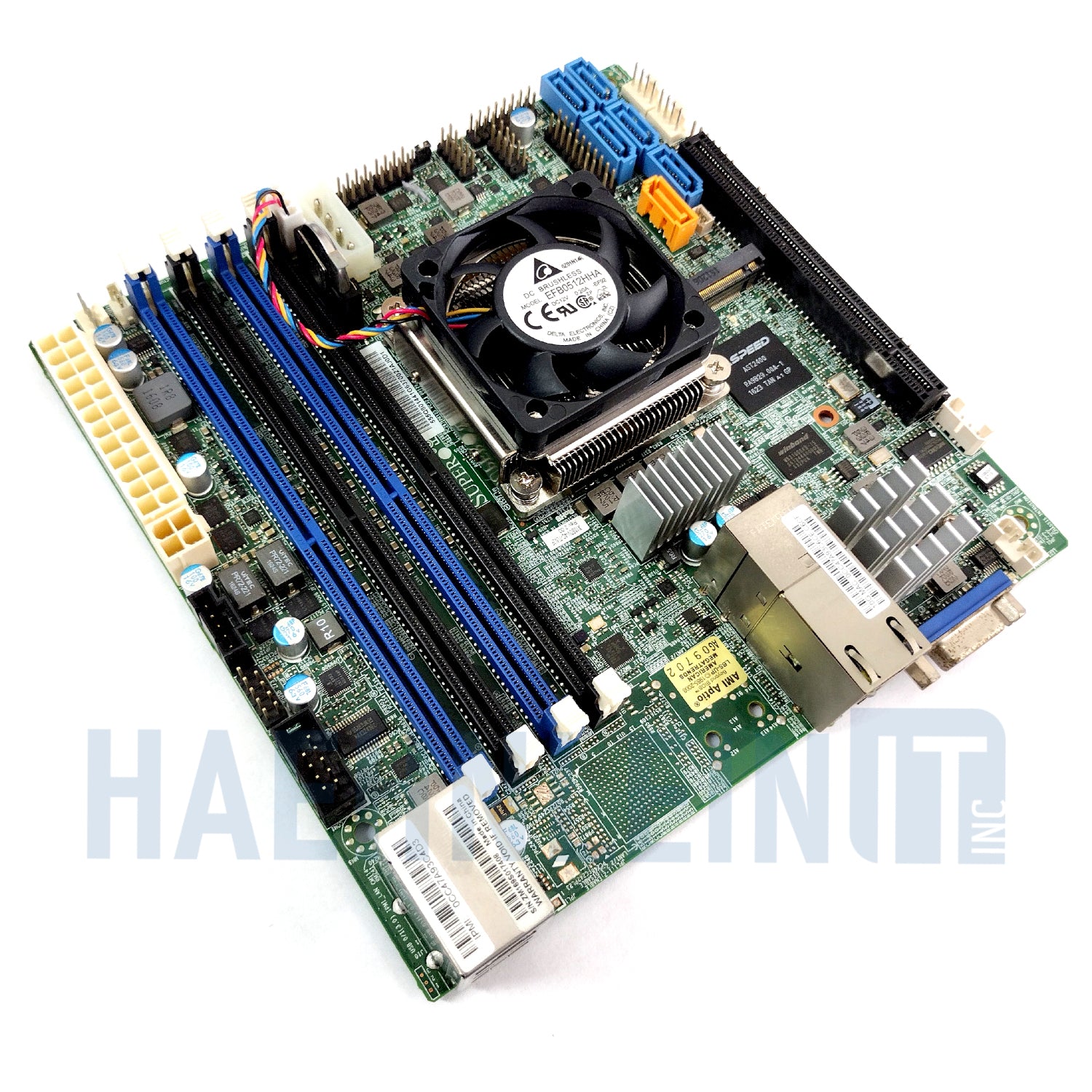

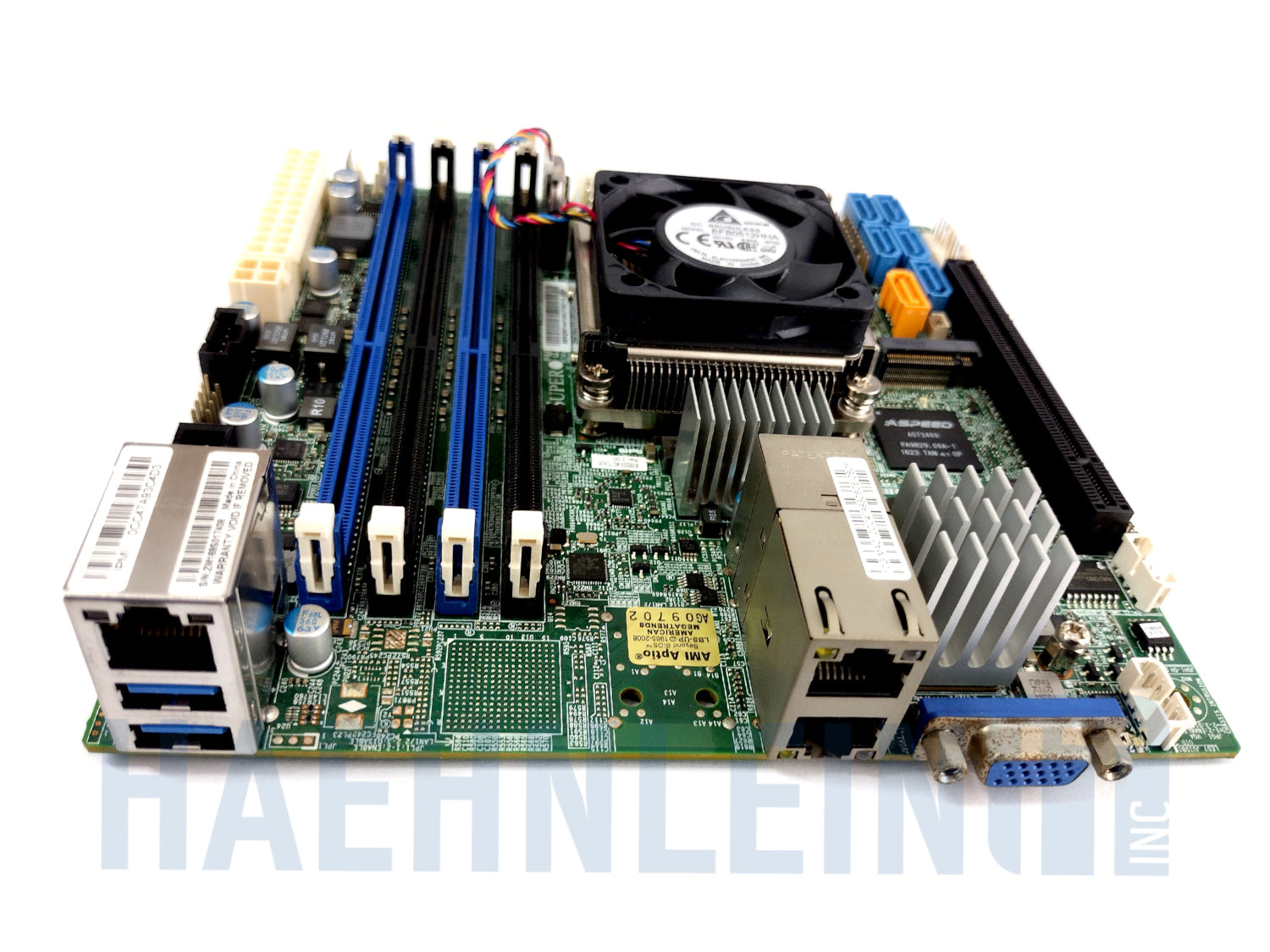

The Supermicro X10SDV-4C-TLN2F is a professional server mainboard with Intel Xeon D-1521  CPU onboard. The motherboard has 4 DDR4 Reg ECC slots for up to 128GB RAM. For expanding your server, it has one PCIe 3.0 x16 slot and one m.2 (PCIe x4 3.0) port. Additionally, the board has two Intel 10GBaseT Lan ports (RJ45) and 6 SATA ports (one SATA-Dom compatible). With IPMI you can monitor and control your server remotely.

The integrated fan cools the board actively. The motherboard comes with an I/O shield.

• Processor: Intel Xeon D-1521 4 core / 8 threads / 45W
• Memory slots: 4 x DDR4 Ram Reg ECC for up to 128GB
• Expansion slots: 1x PCIe x16 3.0, 1x m.2 (PCIe x4 3.0)
• Additional ports: 2x Intel 10GBaseT Lan onboard (10Gbe), 6x SATA (1x SATA-Dom compatible), 4x USB 2.0, 2x USB 3.0
• IPMI for remote administration included.
• The motherboard is actively cooled by an integrated fan.
• IO shield included.
